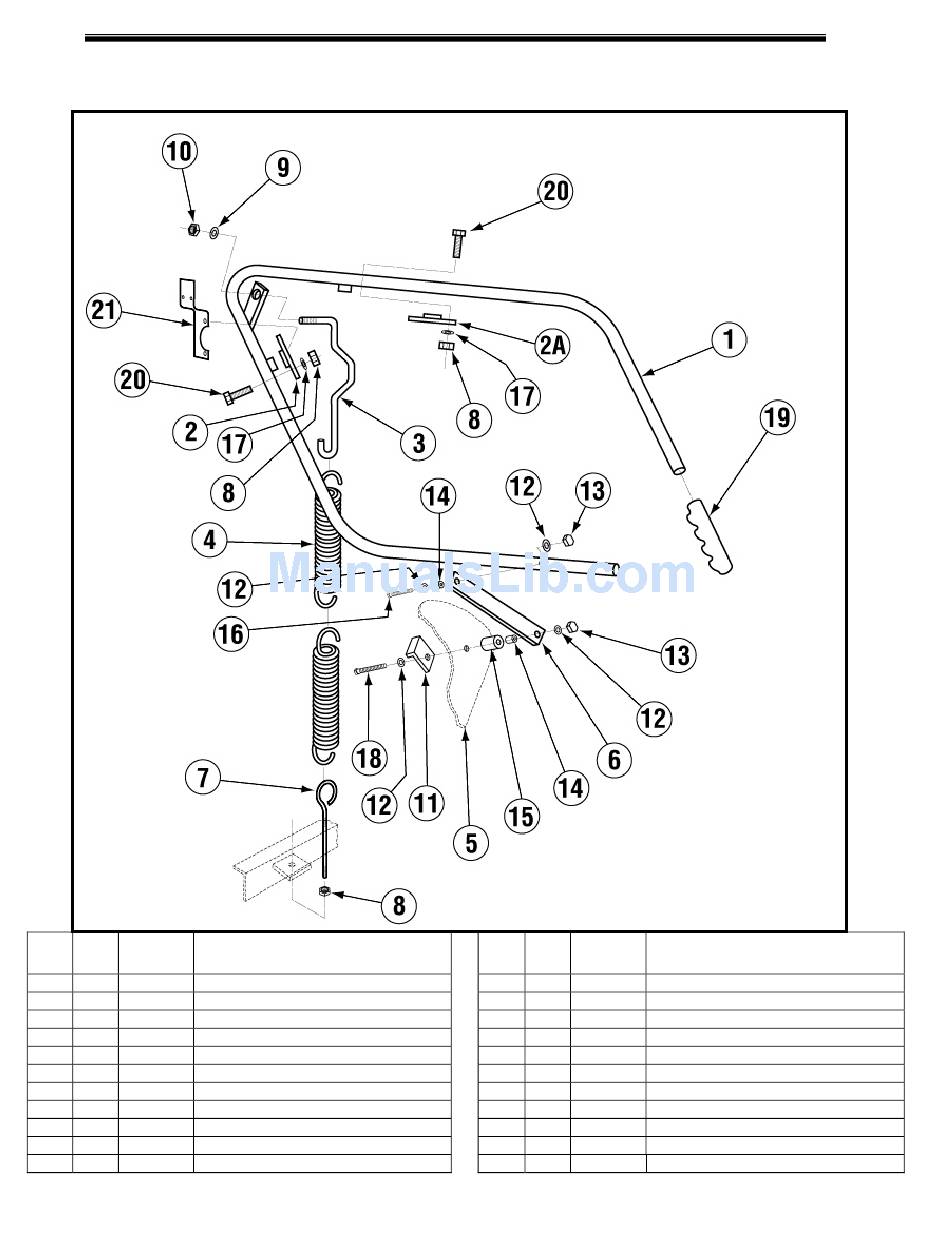

1.2.8. Door Actuator Assembly for Model C

ITEM NO.
P/N
NO. REQ'D
1 1 00613.04 Door Handle
2 1 00619.34 Door Handle Mounting Plate, Long
2A 1 00619.44 Door Handle Mounting Plate, Short
3 1 00603.04 Extension Rod
4 2 00602.00 Door Spring
5 2 01506.30 Door (Cut Away)
6 2 01553.00 Door Handle Link
7 1 00606.00 5/16-18 x 7" Eyebolt
8 9 00913.00 5/16-18 Nut
9 9 00926.00 5/16 SS Washer
10 1 13805.00 5/16-18 Nylon Lock Nut
MODEL AH, B & C PARTS MANUAL Rev. 1.02
DESCRIPTION
Parts
ITEM NO.
P/N
NO. REQ'D
11 2 01552.00 Door Stop
12 6 00924.00 1/4" SS Washer
13 4 00912.00 1/4-20 Nylon Lock Nut
14 4 00610.00 Door Handle Spacer, Small
15 4 00611.00 Door Spacer, Large
16 2 00903.00 1/4-20 x 1-3/4" Hex Head Bolt
17 8 00926.00 5/16" SS Washer
18 2 00910.00 1/4-20 x 1-1/2" Hex Head Screw
19 2 00607.04 Door Handle Cap
20 8 00920.00 5/16-18 x 3/4" Hex Head Bolt
21 1 00563.20 Limit Switch Door Bracket
DESCRIPTION
Page
11
