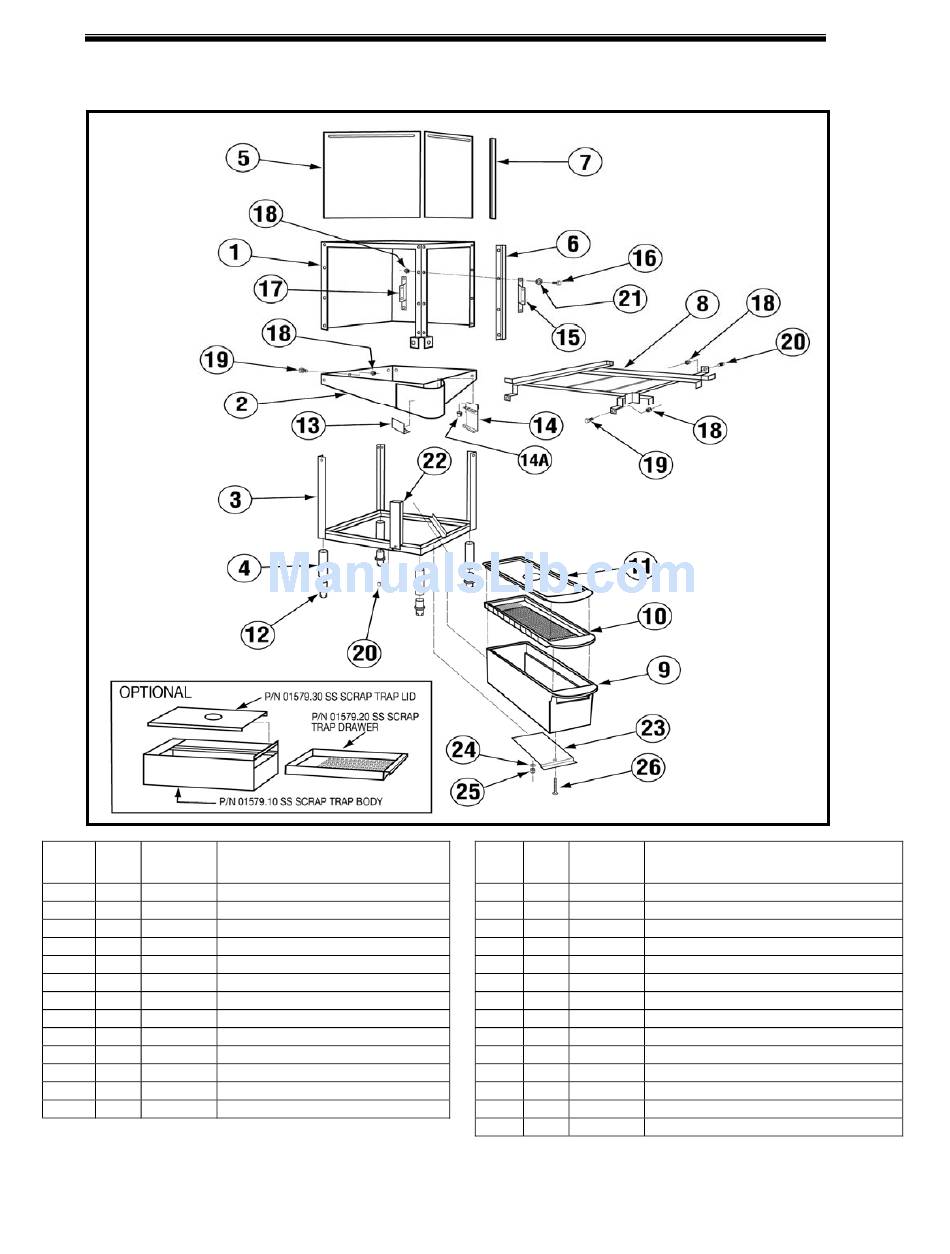

1.2.5. Cabinet Assembly For Model C

ITEM NO.
P/N
NO. REQ'D
1 1 01500.14 Wrapper Corner (C)
2 1 01501.04 Frame Pan (C)
3 1 01532.54 Frame Stand
4 4 01572.10 Stand Legs (A, AH, C, B)
5 2 01506.30 Door A, B, C, M, CMA-44
6 4 01554.30 Door Guide SS 21 1/8"
7 4 00636.10 EZ Glide Door Guide (Plastic)
8 1 01505.04 Tray Track Corner
9 1 01577.10 Scrap Trap Body Molded
10 1 01577.20 Scrap Trap Drawer Molded
11 1 01577.25 Scrap Trap Lid Molded
12 4 01310.00 Bullet Feet
13 2 01571.00 Drain Baffle
MODEL AH, B & C PARTS MANUAL Rev. 1.02
DESCRIPTION
Parts
ITEM NO.
P/N
NO. REQ'D
14 1 01558.20 Chemical Tube Support Bracket
14A 4 00427.00 Line Bracket Snap Bushing
15 1 00101.10 Solenoid Bracket CRH
16 16 00905.00 Trusshead Bolt 1/4"-20 x 1/2"
17 1 00101.20 Solenoid Bracket CLH
18 34 00912.00 Nylon Lock Nut, 1/4"-20
19 12 00914.10 Hexhead Bolt ¼-20 x 5/ 8 "
20 12 01906.00 Hexhead Bolt ¼-20 x ½ "
21 68 00924.00 1/4'' SS Washer
22 1 01570.24 Pan Support Bracket C
23 1 01577.50 Molded Scrap Trap Mount Bracket
24 1 00924.00 1/4" SS Washer
25 1 00912.00 ¼ x20 Nylon Lock Nut
26 1 00911.00 8-32x1/2 ''Pan Head Screw
