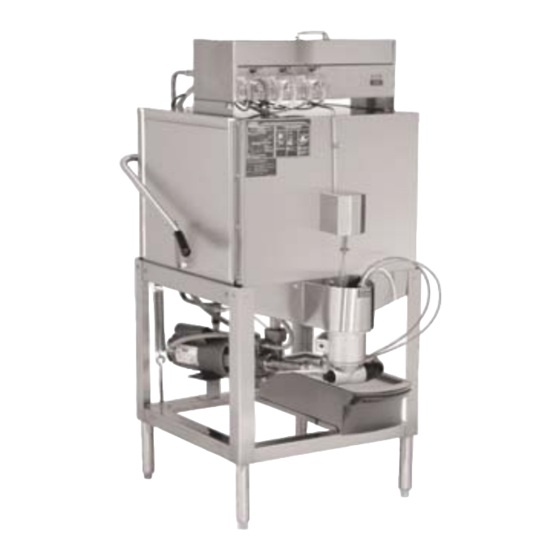

MODELS
AH/B/C/S
PARTS MANUAL
Rev 1.03
C M A
D I S H M A C H I N E S
1 2 7 0 0 K N O T T S T R E E T
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AH and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines AH

Summary of Contents for CMA Dishmachines AH

  • Page 1 MODELS AH/B/C/S PARTS MANUAL Rev 1.03 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T S T R E E T GARDEN GROVE, CALIFORNIA 92841...

  • Page 2: Table Of Contents

    1.2.10. Pump Assembly AH and C ......................14 1.2.11. Pump Assembly For Model B ....................15 1.2.12. Plumbing System Assembly for Model AH and C ..............16 1.2.13. Plumbing System Assembly for Model B...................17 1.2.14. Spray System Assembly for Model AH..................18 1.2.15.

  • Page 3: Parts Manual

    Ice Cube Relay 120V 00706.00 3/4 Water Solenoid Repair Kit JE 00715.00 1/2 Ball Check Valve 00735.00 3/4 Vac Breaker Rep Kit Watts 00738.10 Solenoid Coil JE 120V (3/4 &1/2) Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 4: Exploded View Drawings

    1/4-20 x 1/2" Hex Head Bolt 01577.10 Scrap Trap Body Molded 01532.52 Frame Stand 01577.20 Scrap Trap Drawer Molded 01554.30 EZ Glide Door Guide SS 01577.25 Scrap Trap Lid Molded Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 5: Cabinet Assembly For Model B

    SS Leg (A, AH, C, B) 01506.30 SS Door (A, B, C, M, CMA-44) 01310.00 Bullet Foot 01505.13 Support Bracket for B Tray Track 01145.00 Leg Assembly, 10” w/Bullet Foot Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 6: Cabinet Assembly For Model B Energy Saver

    SS Leg (A, AH, C, B) 01506.30 SS Door (A, B, C, M, CMA-44) 01310.00 Bullet Foot 01505.13 Support Bracket for B Tray Track 01145.00 Leg Assembly, 10” w/Bullet Foot Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 7: Cabinet Assembly For Model Cb Right Door Only

    Side Door CB (For RD) 01556.50 RH Door Handle Support Bracket 00613.25 Door Handle CB (Right) 01555.50 LH Door Handle Support Bracket 01505.24 Tray track CB(RD) 01553.24 Door Handle Link CB Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 8: Cabinet Assembly For Model Cb Left Door Only

    LH Door Handle Support Bracket 00613.24 Door Handle CB (Left) 01556.50 RH Door Handle Support Bracket 01505.25 Tray Track CB (LD) 01553.24 Door Handle Link CB 00111.00 Drain Sump Casting CB (LD) Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 9: Cabinet Assembly For Model C

    Scrap Trap Lid Molded 01577.50 Molded Scrap Trap Mount Bracket 01310.00 Bullet Feet 00924.00 1/4" SS Washer 01571.00 Drain Baffle 00912.00 ¼ x20 Nylon Lock Nut 00911.00 8-32x1/2 ‘’Pan Head Screw Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 10: Control Box Assembly For Model Ah, B And C

    Parts Manual 1.2.7. Control Box Assembly for Model AH, B and C ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 01503.14 Control Box Body AH-B-C 00918.00 8-32 X 1 ½” Fillister Bolt 01504.14 Control Box Lid AH-B-C 00911.00 8-32 X ½” Panhead screw 00407.80...

  • Page 11: Door Actuator Assembly

    00606.00 5/16-18 x 7” Eyebolt 00903.00 1/4-20 x 1-3/4” Hex Head Bolt 00913.00 5/16-18 Nut 00607.04 Door Handle Cap, 1” 00926.00 5/16” SS Washer 01552.00 Door Stop 00900.00 Cotter Pin Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 12: Door Actuator Assembly For Model C

    1/4-20 x 1-1/2” Hex Head Screw 00913.00 5/16-18 Nut 00607.04 Door Handle Cap 00926.00 5/16 SS Washer 00920.00 5/16-18 x 3/4" Hex Head Bolt 13805.00 5/16-18 Nylon Lock Nut 00563.20 Limit Switch Door Bracket Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 13: Pump Assembly Ah And C

    3/8”-16 x ¾” SS Head Bolt 04206.00 Pump Cover, Small 00208.20 Slip Joint Nut Friction Ring 04204.00 Compression Nut (2.5”) *P/N 00200.10 includes items 1, 3, 7, 8, and 9 already assembled. Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 14: Pump Assembly For Model B

    3/8”-16 x ¾” SS Head Bolt 04206.00 Pump Cover, Small 00208.20 Slip Joint Nut Friction Ring 00238.00 3/8” Mail Plug *P/N 00200.10 includes items 1, 3, 7, 8, and 9 already assembled. Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 15: Plumbing System Assembly For Model Ah And C

    Parts Manual 1.2.12. Plumbing System Assembly for Model AH and C ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 13029.00 3/4"Strainer Ball Valve 00735.60 Vacuum Breaker Bonnet, Brass 00798.00 SS Braided Hose 00739.50 Vacuum Breaker Cap SS 00715.00 Ball Check Valve 00738.10 Solenoid Coil, J/E 00760.00...

  • Page 16: Plumbing System Assembly For Model B

    1/4"-20 Nylon Lock Nut 00704.00 3/4" Street Elbow 00706.10 3/4" Solenoid Plunger, Spring Only 00735.00 Repair Kit (Vacuum Breaker) 00926.00 1/4" SS Washer 00735.60 Vacuum Breaker Bonnet, Brass 00743.10 ½” Tee FxFxF Brass Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 17: Spray System Assembly For Model Ah

    Lock Arm Spring 00302.00 Spray Base Gasket 00966.10 10-32 x 1/4" Hexhead Bolt 00912.00 1/4 Nylon Lock Nut * Includes item 5, P/N 00363.00 ** Includes item 14, P/N 00363.10 Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 18: Spray System Assembly For Models B/Cb Left

    Lock Arm Spring 00302.00 Spray Base Gasket 00966.10 10-32 x 1/4" Hex Head Bolt 00912.00 1/4 Nylon Lock Nut * Includes item 5, P/N 00363.00 ** Includes item 14, P/N 00363.10 Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 19: Spray System Assembly For Model B

    Lock Arm Spring 00302.00 Spray Base Gasket 00966.10 10-32 x 1/4" Hex Head Bolt 00912.00 1/4 Nylon Lock Nut * Includes item 5, P/N 00363.00 ** Includes item 14, P/N 00363.10 Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 20: Spray System Assembly For Model B Energy Saver

    O-Ring Spray Base 00310.50 ES Spray Arm Short (6 Jets) 00363.10 Lock Arm Spring 00308.50 Spray Arm End Plug SS 00305.43 ES-B Manifold w/ Upper Spray * Includes item 14, P/N 00363.10 Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 21: Spray System Assembly For Model C

    Lock Arm Spring 00302.00 Spray Base Gasket 00966.10 10-32 x 1/4" Hexhead Bolt 00912.00 1/4 Nylon Lock Nut * Includes item 5, P/N 00363.00 ** Includes item 14, P/N 00363.10 Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 22: Spray Base Conversion Kit

    DESCRIPTION DESCRIPTION REQ’D REQ’D 00302.51 O-Ring 00361.10 Upper Spray Base 00344.00 Coupling Spacer 00360.10 Lower Spray Base 00966.10 10-32 x 1/4" Hexhead Bolt 00302.00 Spray Base Gasket 00344.20 Coupling Spacer Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 23: Drain System Assembly For Model Ah And C

    Parts Manual 1.2.20. Drain System Assembly for Model AH and C ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 03812.00 8-32 x 5/8” Pan Head Screw 00915.00 1/4"-20 Nut 00927.00 8-32 Nylon Lock Nut 01507.50 Solenoid Cover, A, B, C 00110.07 Chain 20** 00122.00...

  • Page 24: Drain System Assembly For Model B

    1-1/2” PVC Drain-Tee End Plug 05030.20 2” x 8” PVC Tubing 00120.00 Thermometer 41019.11 1/2" ID x 9” Clear Hose *Includes items 6 and 6A **Includes items 1, 2, 21, 22, 29 and 32 Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 25: Peristaltic Pump Assembly

    Tube Stiffener 00911.00 8-32 x 1/2" Pan Head Screw 00425.51 Chemical Tubing, Blue 00435.00 Squeeze Tube 00425.53 Chemical Tubing, Red 00419.00 2-Bearing Rotor Assembly 00425.54 Chemical Tubing, White 00423.00 Rotor Bearing Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 26: Unique Parts For Scullary Ah

    Door (Scullary & CWS) 00364.10 Lower Spray Base LP Short Assy 01553.20 Door Handle Link (S) 00464.22 SS Tubing For Sol. Wire (Scull AH) 01554.50 EZ Glide Door Guide SS 33” Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 27: Unique Parts For Scullery B

    Manifold Scullery B 01553.20 Door Handle Link (S) 00364.10 Lower Spray Base LP Short Assy 01554.50 EZ Glide Door Guide SS 33” 00464.23 SS Tubing For Sol. Wire (Scull B) Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 28: Unique Parts For Scullery C

    Door (Scullery & CWS) 00364.10 Lower Spray Base LP Short Assy 01553.20 Door Handle Link (S) 00464.24 SS Tubing For Sol. Wire (Scull C) 01554.50 EZ Glide Door Guide SS 33” Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 29: Unique Parts For Pizza Machines

    Wrapper C (Pizza) 00795.62 Flush Tube AH Pizza 17554.00 CMA-180/ Pizza Door Guide 00795.63 Flush Tube B Pizza 00303.62 Manifold AH (Pizza) 00795.64 Flush Tube C Pizza 00303.63 Manifold B (Pizza) Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 30: Optional Solid Bowl

    ¼” Water Line, Wtr Sol. To Vac. Brk (L) 40110.50 Solid Bowl, 1/4" Vacuum Breaker 41016.00 ¼” Water Line, Tee to Water Sol. (R) 40110.25 Vacuum Breaker Bonnet 41016.10 ¼” Water Line, Tee to Water Sol. (L) Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 31: Optional Sani Alarm

    Squeeze Tube, 8” 40126.10 #10 x 3/4" Sheet metal Screw 00521.00 Wire, 18 Gauge, Orange, 6 ft. 40127.00 Wall Anchors 00531.00 Wire, 18 Gauge, White, 6 ft. 00426.00 Y Hose Connector, 3/16” Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...

  • Page 32: Temp-Sure Heater

    Tempsure Intake Line for C 01595.20 Heater Tank for Tempsure 01594.00 3 Sided Heater Tank Shield 13422.71 240V 12KW Triangular Immersion Htr 01594.10 Booster Heater Tank Access Cover 00421.87 CMA-44 Rocker Switch White Page MODEL AH, B & C PARTS MANUAL Rev. 1.03...
