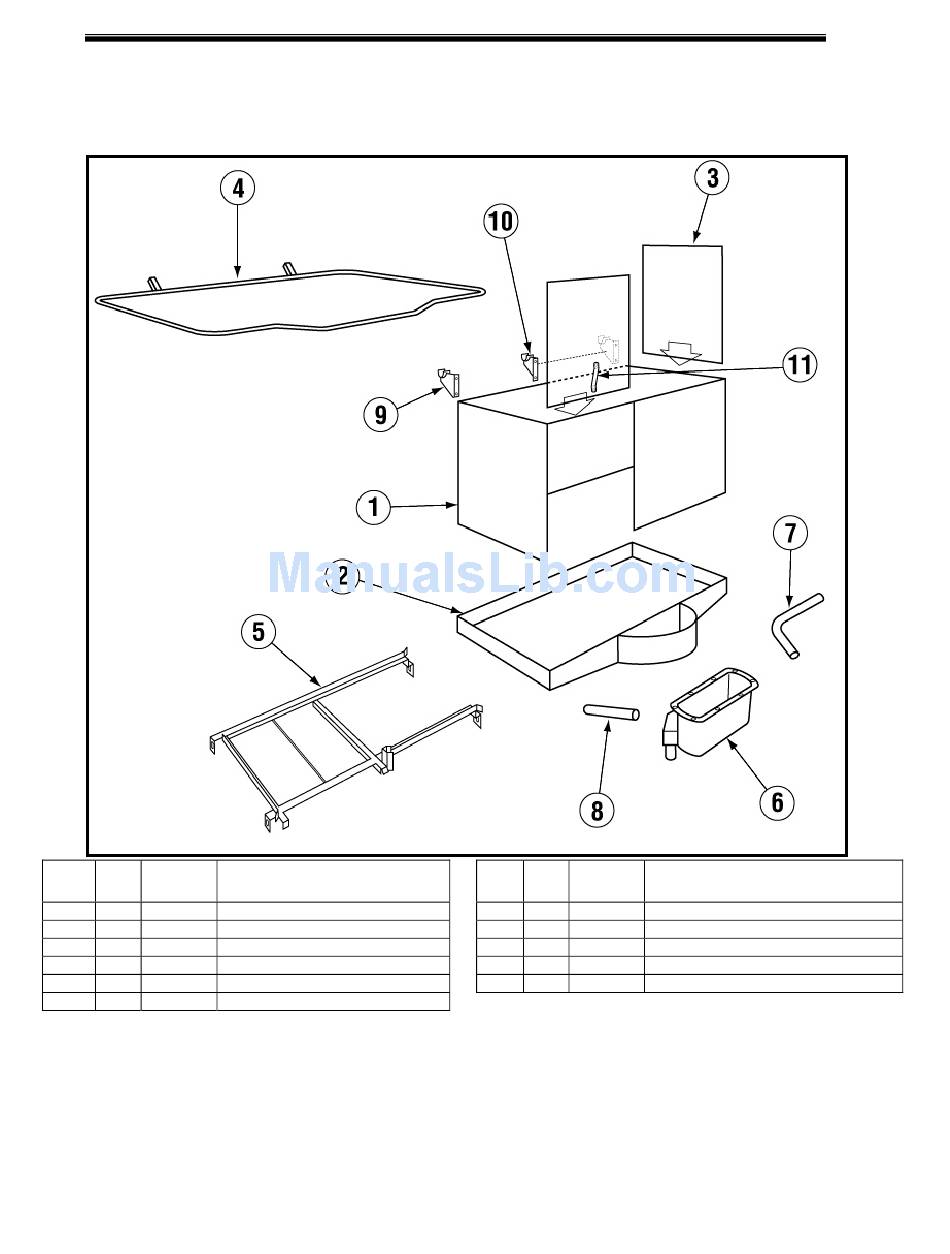

1.2.4. Cabinet Assembly for Model CB Left Door Only

ITEM
NO.
P/N
NO.
REQ'D
1
1
01530.25
Wrapper CB (For LD)
2
1
01501.25
Pan CB (For LD)
3
1
01506.24
Side Door CB (For LD)
4
1
00613.24
Door Handle CB (Left)
5
1
01505.25
Tray Track CB (LD)
6
1
00111.00
Drain Sump Casting CB (LD)
MODEL AH, B & C PARTS MANUAL Rev. 1.02
DESCRIPTION
Parts
ITEM
NO.
P/N
NO.
REQ'D
7
1
00246.25
Motor suction Tube CB (For LD)
8
1
00246.15
Motor suction Tube CB (For LD)
9
1
01555.50
LH Door Handle Support Bracket
10
1
01556.50
RH Door Handle Support Bracket
11
1
01553.24
Door Handle Link CB
DESCRIPTION
Page
7
