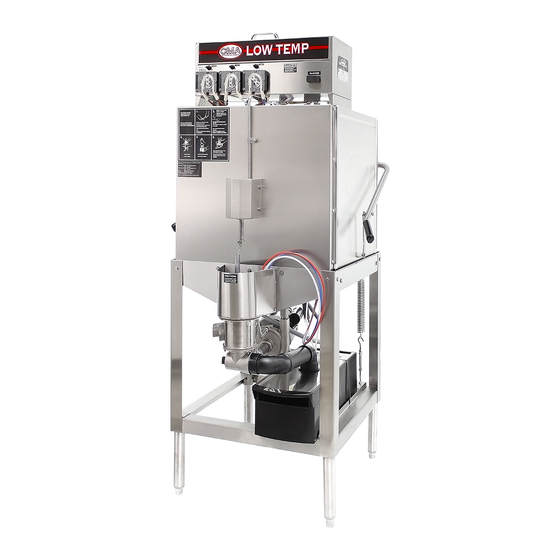

CMA Dishmachines CMA-AH Parts Manual

Cma cma-ah: hardware guide
Hide thumbs Also See for CMA-AH:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
MODELS
AH/B/C/S
PARTS MANUAL
Rev 1.02
C M A
D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-AH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CMA Dishmachines CMA-AH

Summary of Contents for CMA Dishmachines CMA-AH

  • Page 1 MODELS AH/B/C/S PARTS MANUAL Rev 1.02 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841 8 0 0 - 8 5 4 - 6 4 1 7 F A X 7 1 4 - 8 9 5 - 2 1 4 1...

  • Page 2: Table Of Contents

    1. PARTS MANUAL... 3 1.1. (P/N 01100.20)...3 NITIAL ARTS 1.2. XPLODED RAWINGS 1.2.1. Cabinet Assembly for Model AH...4 1.2.2. Cabinet Assembly for Model B ...5 1.2.3. Cabinet Assembly for Model CB Right Door Only ...6 1.2.4. Cabinet Assembly for Model CB Left Door Only...7 1.2.5.

  • Page 3: Parts Manual

    1. Parts Manual 1.1. Initial Parts Kit (P/N 01100.20) 00100.00 Drain Ball Solenoid 120V 00120.00 Thermometer (Bi Metal) 00121.00 Drain Ball 00200.10 Pump Assy 110/220V 60Hz (Open) 00206.00 Pump Seal Kit 00304.03 Spray Arm B L1-C & L-1X 00304.06 Spray Arm A & C 00308.50 Spray Arm End Plug SS 00341.00...

  • Page 4: Exploded View Drawings

    1.2. Exploded View Drawings 1.2.1. Cabinet Assembly for Model AH ITEM DESCRIPTION REQ’D 01506.30 Door 01530.02 Wrapper 00912.00 1/4-20 Lock Nut 00926.00 SS Washer 1/4" 00905.00 1/4-20 x 1/2" Truss Head Bolt 01505.02 Tray Track (Set) 01531.02 00906.00 1/4-20 x 1/2" Hex Head Bolt 01532.52 Frame Stand 01554.30...

  • Page 5: Cabinet Assembly For Model B

    01554.30 EZ Glide Door Guide SS 21 1/8” 00636.10 EZ Glide Door Guide (Plastic) 01506.30 SS Door (A, B, C, M, CMA-44) 01505.13 Support Bracket for B Tray Track MODEL AH, B & C PARTS MANUAL Rev. 1.02 ITEM DESCRIPTION REQ’D...

  • Page 6: Cabinet Assembly For Model Cb Right Door Only

    1.2.3. Cabinet Assembly for Model CB Right Door Only ITEM DESCRIPTION REQ’D 01530.24 Wrapper CB (For RD) 01501.24 Pan CB (For RD) 01506.25 Side Door CB (For RD) 00613.25 Door Handle CB (Right) 01505.24 Tray track CB(RD) MODEL AH, B & C PARTS MANUAL Rev. 1.02 ITEM DESCRIPTION REQ’D...

  • Page 7: Cabinet Assembly For Model Cb Left Door Only

    1.2.4. Cabinet Assembly for Model CB Left Door Only ITEM DESCRIPTION REQ’D 01530.25 Wrapper CB (For LD) 01501.25 Pan CB (For LD) 01506.24 Side Door CB (For LD) 00613.24 Door Handle CB (Left) 01505.25 Tray Track CB (LD) 00111.00 Drain Sump Casting CB (LD) MODEL AH, B &...

  • Page 8: Cabinet Assembly For Model C

    Wrapper Corner (C) 01501.04 Frame Pan (C) 01532.54 Frame Stand 01572.10 Stand Legs (A, AH, C, B) 01506.30 Door A, B, C, M, CMA-44 01554.30 Door Guide SS 21 1/8” 00636.10 EZ Glide Door Guide (Plastic) 01505.04 Tray Track Corner 01577.10 Scrap Trap Body Molded 01577.20...

  • Page 9: Control Box Assembly For Model Ah,B And C

    1.2.6. Control Box Assembly for Model AH,B and C ITEM DESCRIPTION REQ’D 01503.14 Control Box Body AH-B-C 01504.14 Control Box Lid AH-B-C 00407.80 Timer 90 Sec 8 Cam 120V 1(2) 00404.82 Motor Contactor 120V AH/C (B) 00433.10 Master Switch (20Amp) 00631.00 Ice Cube relay 120V 00454.10...

  • Page 10: Door Actuator Assembly

    1.2.7. Door Actuator Assembly ITEM DESCRIPTION REQ’D 00613.32 Door Handle, 1” (Model AH) 00613.33 Door Handle, 1” (Model B) 01556.50 Door Handle Support, 1” (Right) 00603.07 Door Spring Extension Rod 00602.00 Door Spring 01506.30 Door (Cut Away) 01553.00 Door Handle Link 00606.00 5/16-18 x 7”...

  • Page 11: Door Actuator Assembly For Model C

    1.2.8. Door Actuator Assembly for Model C ITEM DESCRIPTION REQ’D 00613.04 Door Handle 00619.34 Door Handle Mounting Plate, Long 00619.44 Door Handle Mounting Plate, Short 00603.04 Extension Rod 00602.00 Door Spring 01506.30 Door (Cut Away) 01553.00 Door Handle Link 00606.00 5/16-18 x 7”...

  • Page 12: Pump Assembly For Model Ah And C

    1.2.9. Pump Assembly For Model AH and C ITEM DESCRIPTION REQ’D 00201.00 Pump Motor, 1 HP 00975.00 3/8”-16 x 1 ½” SS Stud 00206.00 Pump Seal Kit 00207.00 1 ½” x 1 ¼” Slip Joint Nut 00208.00 Slip Joint Nut Gasket 00768.20 Pump Inlet Elbow SS Casting 03224.00...

  • Page 13: Pump Assembly For Model B

    1.2.10. Pump Assembly For Model B ITEM DESCRIPTION REQ’D 00201.00 Pump Motor, 1 HP 00975.00 3/8”-16 x 1 ½” SS Stud 00206.00 Pump Seal Kit 00207.00 1 ½” x 1 ¼” Slip Joint Nut 00208.00 Slip Joint Nut Gasket 00768.20 Pump Inlet Elbow SS Casting 03224.00 Pump Base Small...

  • Page 14: Plumbing System Assembly For Model Ah And C

    1.2.11. Plumbing System Assembly for Model AH and C ITEM DESCRIPTION REQ’D 13029.00 3/4"Strainer Ball Valve 00798.00 SS Braided Hose 00715.00 Ball Check Valve 00760.00 5/8” Comp x 1/2” MIP Fitting 00214.50 1/2" Comp x 3/8” MIP Fitting 00795.00 Flush Tube 00770.10 5/8 Compression Ftg.

  • Page 15: Plumbing System Assembly For Model B

    1.2.12. Plumbing System Assembly for Model B ITEM DESCRIPTION REQ’D 13029.00 3/4"Strainer Ball Valve 00798.00 SS Braided Hose 00715.00 Ball Check Valve 00760.00 5/8” Comp x 1/2” MIP Fitting 00214.50 1/2" Comp x 3/8” MIP Fitting 00795.00 Flush Tube 00770.10 5/8 Compression Ftg.

  • Page 16: Spray System Assembly For Model Ah

    1.2.13. Spray System Assembly for Model AH ITEM DESCRIPTION REQ’D 00361.10 Upper Spray Base, SS* 00360.10 Lower Spay Base, SS* 00304.06 Spray Arm A/C Series 00303.32 Manifold, AH 00363.00 Spray Base Lock Pin** 00308.50 Spray Arm End Plug 00302.00 Spray Base Gasket 00912.00 1/4 Nylon Lock Nut MODEL AH, B &...

  • Page 17: Spray System Assembly For Models B/Cb Left

    1.2.14. Spray System Assembly for Models B/CB Left ITEM DESCRIPTION REQ’D 00361.40 Upper Spray Base, SS* 00360.40 Lower Spay Base, SS* 00304.03 Spray Arm B Series 00303.33 Manifold B 00363.00 Spray Base Lock Pin** 00308.50 Spray Arm End Plug 00302.00 Spray Base Gasket 00912.00 1/4 Nylon Lock Nut...

  • Page 18: Spray System Assembly For Model B

    1.2.15. Spray System Assembly for Model B ITEM DESCRIPTION REQ’D 00361.10 Upper Spray Base, SS* 00360.10 Lower Spay Base, SS* 00304.03 Spray Arm B Series 00303.33 Manifold B 00363.00 Spray Base Lock Pin** 00308.50 Spray Arm End Plug 00302.00 Spray Base Gasket 00912.00 1/4 Nylon Lock Nut MODEL AH, B &...

  • Page 19: Spray System Assembly For Model C

    1.2.16. Spray System Assembly for Model C ITEM DESCRIPTION REQ’D 00361.10 Upper Spray Base, SS* 00360.10 Lower Spay Base, SS* 00304.06 Spray Arm A/C Series 00303.34 Manifold, C 00363.00 Spray Base Lock Pin** 00308.50 Spray Arm End Plug 00302.00 Spray Base Gasket 00912.00 1/4 Nylon Lock Nut MODEL AH, B &...

  • Page 20: Spray Base Conversion Kit

    1.2.17. Spray Base Conversion Kit ITEM DESCRIPTION REQ’D 00302.51 O-Ring 00344.00 Coupling Spacer 00966.10 10-32 x 1/4" Hexhead Bolt 00344.20 Coupling Spacer MODEL AH, B & C PARTS MANUAL Rev. 1.02 ITEM DESCRIPTION REQ’D 00361.10 Upper Spray Base 00360.10 Lower Spray Base 00302.00 Spray Base Gasket Page...

  • Page 21: Drain System Assembly For Model Ah And C

    1.2.18. Drain System Assembly for Model AH and C ITEM DESCRIPTION REQ’D 03812.00 8-32 x 5/8” Pan Head Screw 00927.00 8-32 Nylon Lock Nut 00110.07 Chain 00902.00 8-32 x 1-1/4” Pan Head Screw 00121.00 Drain Ball Assy. 00922.00 1/4" Lock Washer, Star 00121.51 Drain Ball Tube 00121.52...

  • Page 22: Drain System Assembly For Model B

    1.2.19. Drain System Assembly for Model B ITEM DESCRIPTION REQ’D 03812.00 8-32 x 5/8” Pan Head Screw 00927.00 8-32 Nylon Lock Nut 00110.07 Chain 00902.00 8-32 x 1-1/4” Pan Head Screw 00121.00 Drain Ball Assy. 00922.00 1/4" Lock Washer, Star 00121.51 Drain Ball Tube 00121.52...

  • Page 23: Peristaltic Pump Assembly

    1.2.20. Peristaltic Pump Assembly ITEM DESCRIPTION REQ’D 00416.00 Peristaltic Pump Motor 00417.00 Peristaltic Pump Block 00919.00 10-32 x 1-1/2” Pan Head Screw 00918.00 10-32 x 1-1/2” Fillister Head Screw 00932.00 Twist Tie 00418.00 Peristaltic Pump Block Cover 00911.00 8-32 x 1/2" Pan Head Screw 00435.00 Squeeze Tube 00419.00...

  • Page 24: Unique Parts For Scullery Ah

    1.2.21. Unique Parts For Scullery AH ITEM DESCRIPTION REQ’D 00202.00 Pump Base 00203.05 (Impeller) 4 ½” 00204.00 Pump Cover Large 00205.00 Pump Gasket 00212.50 1 ½” - 1 ¼” Adapter 00303.22 Manifold Scullery AH 00364.10 Lower Spray Base LP Short Assy 00464.22 SS Tubing For Sol.

  • Page 25: Unique Parts For Scullery B

    1.2.22. Unique Parts For Scullery B ITEM DESCRIPTION REQ’D 00202.00 Pump Base 00203.05 (Impeller) 4 ½” 00204.00 Pump Cover Large 00205.00 Pump Gasket 00212.50 1 ½” - 1 ¼” Adapter 00246.27 Suction Pipe Scull B Right 00303.23 Manifold Scullery B 00364.10 Lower Spray Base LP Short Assy 00464.23...

  • Page 26: Unique Parts For Scullery C

    1.2.23. Unique Parts For Scullery C ITEM DESCRIPTION REQ’D 00202.00 Pump Base 00203.05 (Impeller) 4 ½” 00204.00 Pump Cover Large 00205.00 Pump Gasket 00212.50 1 ½” - 1 ¼” Adapter 00303.24 Manifold Scullery Corner 00364.10 Lower Spray Base LP Short Assy 00464.24 SS Tubing For Sol.

  • Page 27: Optional Solid Bowl

    1.3. Optional Solid Bowl ITEM DESCRIPTION REQ’D 01503.20 Solid Bowl Control Box 01504.20 Solid Bowl Control Box Lid 01503.25 Solid Bowl Slideout Tray 00461.00 Solid Bowl Dm #6000 00407.80 Timer, 90-sec. 8-cam 00404.82 Motor Contactor, 120V *No. Req’d for Model B is 2 00630.50 Solid Detergent/Rinse Timer Relay 00631.00...

  • Page 28: Exploded View

    1.4. Optional Sani Alarm ITEM DESCRIPTION REQ’D 00400.00 Conduit, 3/8” Sealtite 00401.00 S.T. 3/8” Straight Connector 00402.00 S.T. 90 Degree 3/8” Connector 00406.00 Control Box Light, .5” Diameter, Red 00435.00 Squeeze Tube, 8” 00521.00 Wire, 18 Gauge, Orange, 6 ft. 00531.00 Wire, 18 Gauge, White, 6 ft.

  • Page 29: Temp-Sure Heater

    Booster Heater Tank Access Cover MODEL AH, B & C PARTS MANUAL Rev. 1.02 Parts ITEM DESCRIPTION REQ’D 13417.47 CMA 180 Booster Heater Gasket 13417.89 Thermostat for 12 KW Heater (EGO) 00214.30 ¼” Comp. x 3/8” MIP Ftg. 17523.51 Hi-Limit Switch 250 Deg.
