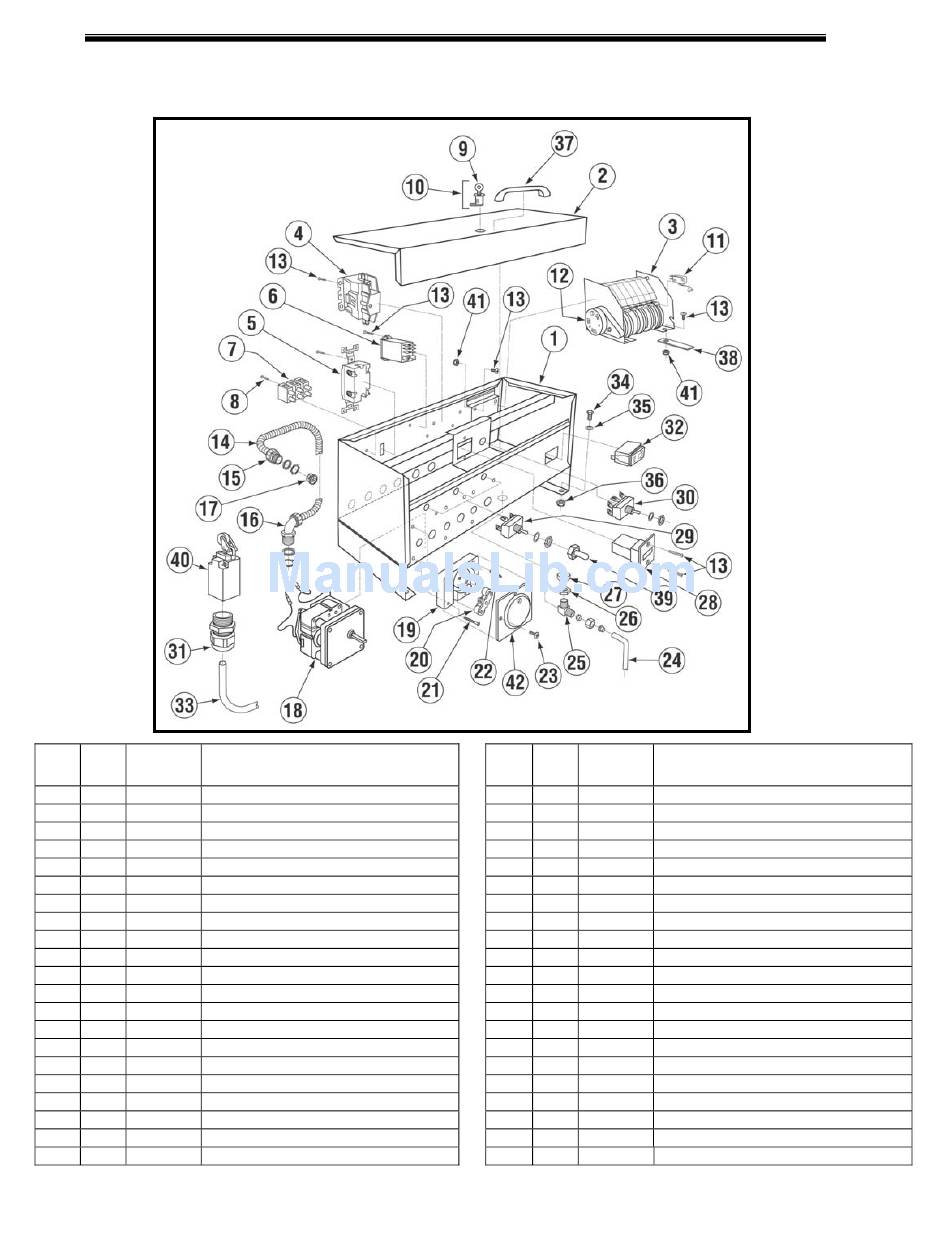

1.2.6. Control Box Assembly for Model AH,B and C

ITEM NO.
P/N
NO. REQ'D
1 1 01503.14 Control Box Body AH-B-C
2 1 01504.14 Control Box Lid AH-B-C
3 1 00407.80 Timer 90 Sec 8 Cam 120V
4 1(2) 00404.82 Motor Contactor 120V AH/C (B)
5 1 00433.10 Master Switch (20Amp)
6 1 00631.00 Ice Cube relay 120V
7 1 00454.10 3 Pole Socket Terminal Block
8 1 13825.00 8-32 X 1" Pan Head Screw
9 1 00450.00 Key Only
10 1 00449.00 Lock and Key
11 8 00411.00 Microswitch
12 1 00500.00 Timer Motor 120V (For 90Sec Timer)
13 4 00911.50 8-32 X 3/8" Pan Head Screw
14 AR 00400.00 Conduit 3/8" Sealtite
15 2 00401.00 St. Straight 3/8" Connector
16 4 00402.00 St. 90Deg 3/8" Connector
17 4 00438.00 Snap Bushing 875-11
18 3 00416.00 Peristaltic Pump Motor 120V
19 3 00417.00 Peristaltic Pump Block
20 3 00419.00 Peristaltic Pump Rotor
21 6 00919.00 8-32 X 1 ½" Panhead Bolt
MODEL AH, B & C PARTS MANUAL Rev. 1.02
DESCRIPTION
Parts
ITEM NO.
P/N
NO. REQ'D
22 3 00918.00 8-32 X 1 ½" Filister Bolt
23 12 00911.00 8-32 X ½" Panhead screw
24 1 00464.07 3/8" SS Tubing (For Solenoid Wire
25 1 00436.00 3/8" 90Deg Elbow Comp X Mip
26 1 00712.00 3/8" jamb Nut (Plated)
27 1 00712.30 3/8" jamb Nut (standard)
28 1 03408.50 Counter (Panel Mount) 120V
29 3 03470.00 Primer Switch (Momentary)
30 1 00475.00 Delimer Switch (DPDT 15Amp)
31 1 00562.60 Roller Switch Connector
32 1 00421.40 Start/Fill Switch (With light)
33 3FT 00546.00 Switch Cord
34 4 00914.00 ¼ " –20 X ¾" Hex Head Bolt
35 4 00922.00 ¼" Lock Star Washer
36 4 00912.00 ¼"-20 Nylon Lock Nut
37 1 00535.00 Control Box Lid Handle
38 1 01514.00 Timer Support Bar
39 4 00470.10 Toggle Switch Rubber Boot
40 1 00562.00 Roller Switch
41 1 00927.00 8-32 Nylon Lock Nut
42 3 00418.00 Peristaltic Pump Cover
DESCRIPTION
