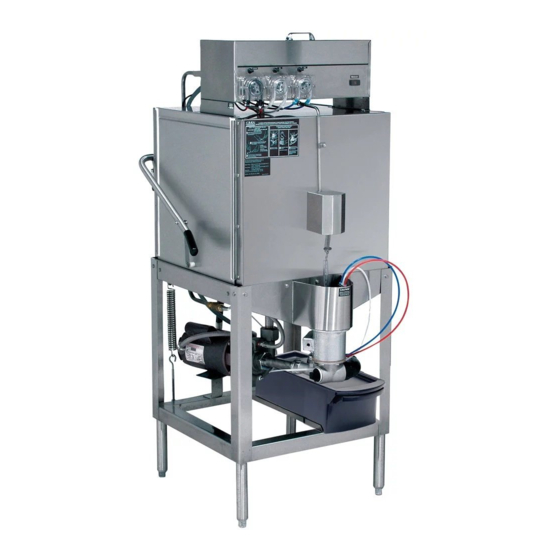

CMA Dishmachines AH Owner's Manual
Hide thumbs
Also See for AH:
- Quick setup instructions (2 pages) ,
- Parts manual (29 pages) ,
- Parts manual (32 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CMA Dishmachines AH
Summary of Contents for CMA Dishmachines AH
- Page 1 Owner’s Manual Keep with machine for reference MODELS AH/B/C/S INSTALLATION & OPERATION Rev 1.00 B C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T S T R E E T...
-
Page 2: Table Of Contents
Check….............................10 3.1.2. Filling the Machine........................10 3.1.3. Chemicals ..........................10 3.1.4. Run a Cycle..........................10 3.2............................11 ENERAL 3.3.............12 DDENDUM FOR ACHINES NSTALLED IN THE ITY OF HICAGO 3.4........................13 LECTRICAL IAGRAMS 3.4.1. Models AH/ C & B ........................13 3.4.2. Solid Bowl..........................14... -
Page 3: Specifications
19 ¾” x 19 ¾” (50 x 50 cm) ELECTRICAL RATING VOLTS AMPS (60-Hz) WASH PUMP MOTOR 1 HP SHIPPING WEIGHT APPROXIMATE 270# (122.5 kg) APPROXIMATE (SCULLERY) 295# (133.8 kg) Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01... -
Page 4: Models B/B Energy Saver
19 ¾” x 19 ¾” (50 x 50 cm) VOLTS ELECTRICAL RATING AMPS (60-Hz) WASH PUMP MOTORS (2) 1 HP each SHIPPING WEIGHT APPROXIMATE 352# (160 kg) APPROXIMATE (SCULLERY) 377# (171 kg) Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01... -
Page 5: Ah, Bandc Operational Cycle
AH, B and C Operational Cycle The AH, B and C Operational Cycle have a total cycle time of 90 seconds. The Timing Diagram and the steps listed below detail the individual functions that are executed during each Operational Cycle. - Page 6 Note: Holding the START switch on for a couple of seconds will start a cycle without opening and closing the doors. Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01...
-
Page 7: Getting Started
The integrated scrap accumulator prevents food soil from entering the drain system. The models AH and C can be run at a rate of 40 racks/160 covers per hour, while the model B can be run at a rate of 80racks/320 covers per hour and their heavy-duty stainless steel construction assures long life and years of trouble free operation. -
Page 8: Receiving And Installation
A 20-amp, 115 volt, 60 Hz dedicated circuit must be used to supply electrical power to the model AH and model C Dishmachines (see model AH specifications on page 3 and model C specifications on page 5). A 30-amp, 115 volt, 60 Hz dedicated circuit must be used to supply electrical power to the model B Dishmachine (see model B specifications on page XX4). -
Page 9: Connecting The Scrap Accumulator And Drain
Drain pipe is installed with adequate air gap (must meet local codes) Dishmachine is properly grounded Dishmachine is properly leveled Machine circuit breaker is labeled “DISHWASHER” Machine has been connected with correctly sized wire Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01... -
Page 10: Operation
CAUTION: Excessive tightening of the cover plate screws may stall the motors on the new peristaltic pumps. If a peristaltic pump does not turn when the micro switch is activated, loosen the screws on the cover plate. Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01... -
Page 11: General
Operational Cycles of the dishmachine. Properly pre- scrapping the dishes should permit the dishmachine to operate for an entire shift before needing to remove and clean the drain screen. Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01... -
Page 12: Addendum For Machines Installed In The City Ofchicago
1. All low energy models must have low level sani-alarms, both visual and audio. 2. All models must have a City of Chicago approval data label affixed to the machine. 3. Chlorine sanitizer must be a minimum of 100 PPM. Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01... -
Page 13: Electrical Diagrams
3.4. Electrical Diagrams 3.4.1. Models AH/ C & B Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01... -
Page 14: Solid Bowl
3.4.2. Solid Bowl Page MODEL AH, B & C INSTALLATION & OPERATION MANUAL Rev. 1.01...
