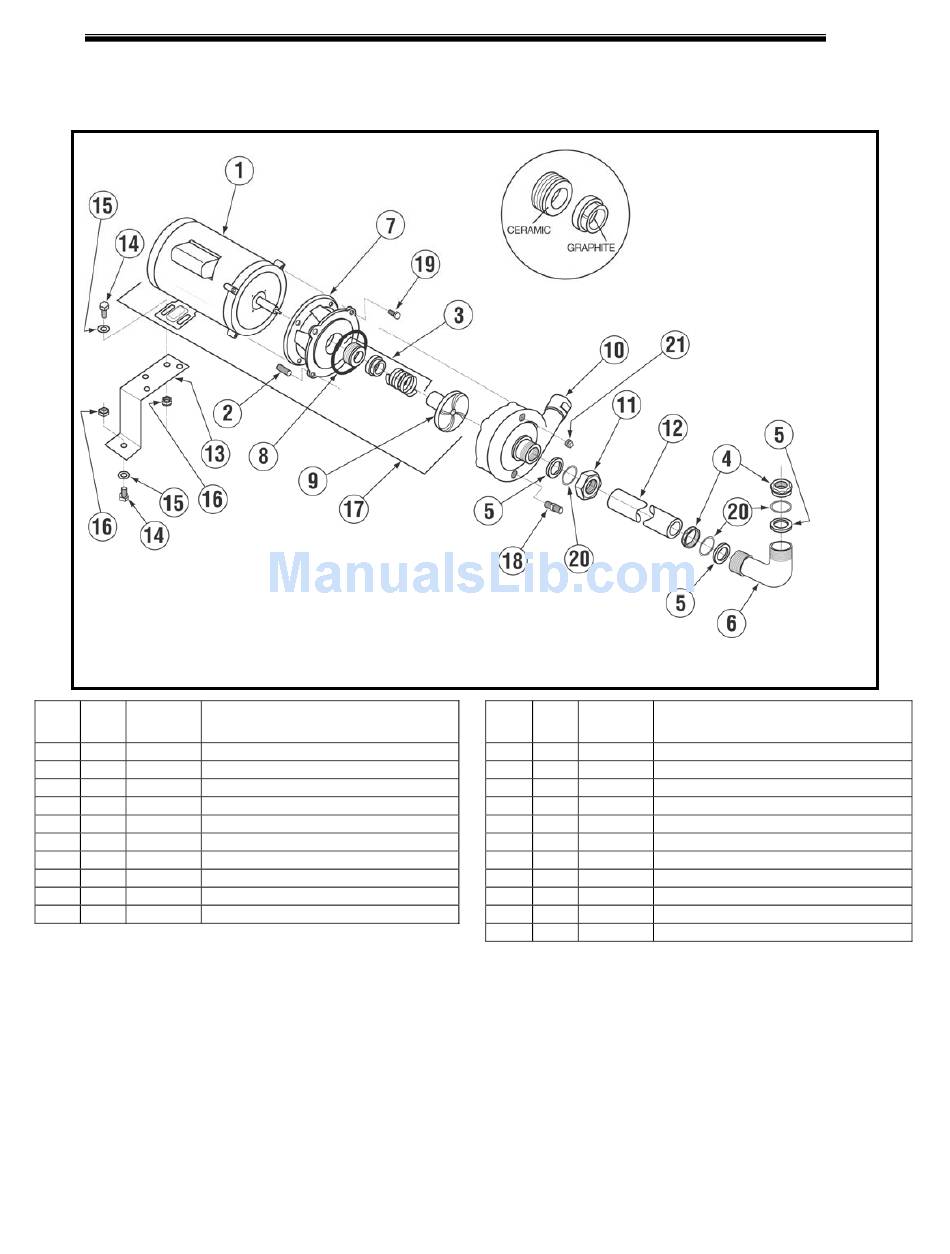

1.2.9. Pump Assembly For Model AH and C

ITEM NO.
P/N
NO. REQ'D
1 1 00201.00 Pump Motor, 1 HP
2 2 00975.00 3/8"-16 x 1 ½" SS Stud
3 1 00206.00 Pump Seal Kit
4 2 00207.00 1 ½" x 1 ¼" Slip Joint Nut
5 3 00208.00 Slip Joint Nut Gasket
6 1 00768.20 Pump Inlet Elbow SS Casting
7 1 03224.00 Pump Base Small
8 1 03226.00 Pump O-Ring
9 1 03222.05 Open Impeller
10 1 04206.00 Pump Cover, Small
MODEL AH, B & C PARTS MANUAL Rev. 1.02
DESCRIPTION
Parts
ITEM NO.
P/N
NO. REQ'D
11 1 04204.00 Compression Nut (2.5")
12 1 00246.01 Motor Suction Tube
13 1 13916.20 Motor Support Bracket
14 3 00906.00 1/4"-20 x ½" Hex Head Bolt
15 3 00924.00 ¼" SS Washer
16 3 00912.00 1/4"-20 Nylon Lock Nut
17* 1 00200.10 Pump Assy.
18 1 00214.50 1/2 Comp x 3/8" M.I.P. F.T.G.
19 6 00921.00 3/8"-16 x ¾" SS Head Bolt
20 3 00208.20 Slip Joint Nut Friction Ring
21 1 00238.00 3/8 Mail Plug
*P/N 00200.10 includes items 1, 3, 7, 8, and 9 already assembled.
