7.2

Default board configuration

By default, the STM32U575I-EV Evaluation board is configured with VDD_MCU at 3.3 V. It is possible to set the
board with VDD_MCU at 1.8 V. Before switching to 1.8 V, check that the extension module and external shield
connected to the STM32U575I-EV Evaluation board are 1.8 V compatible.

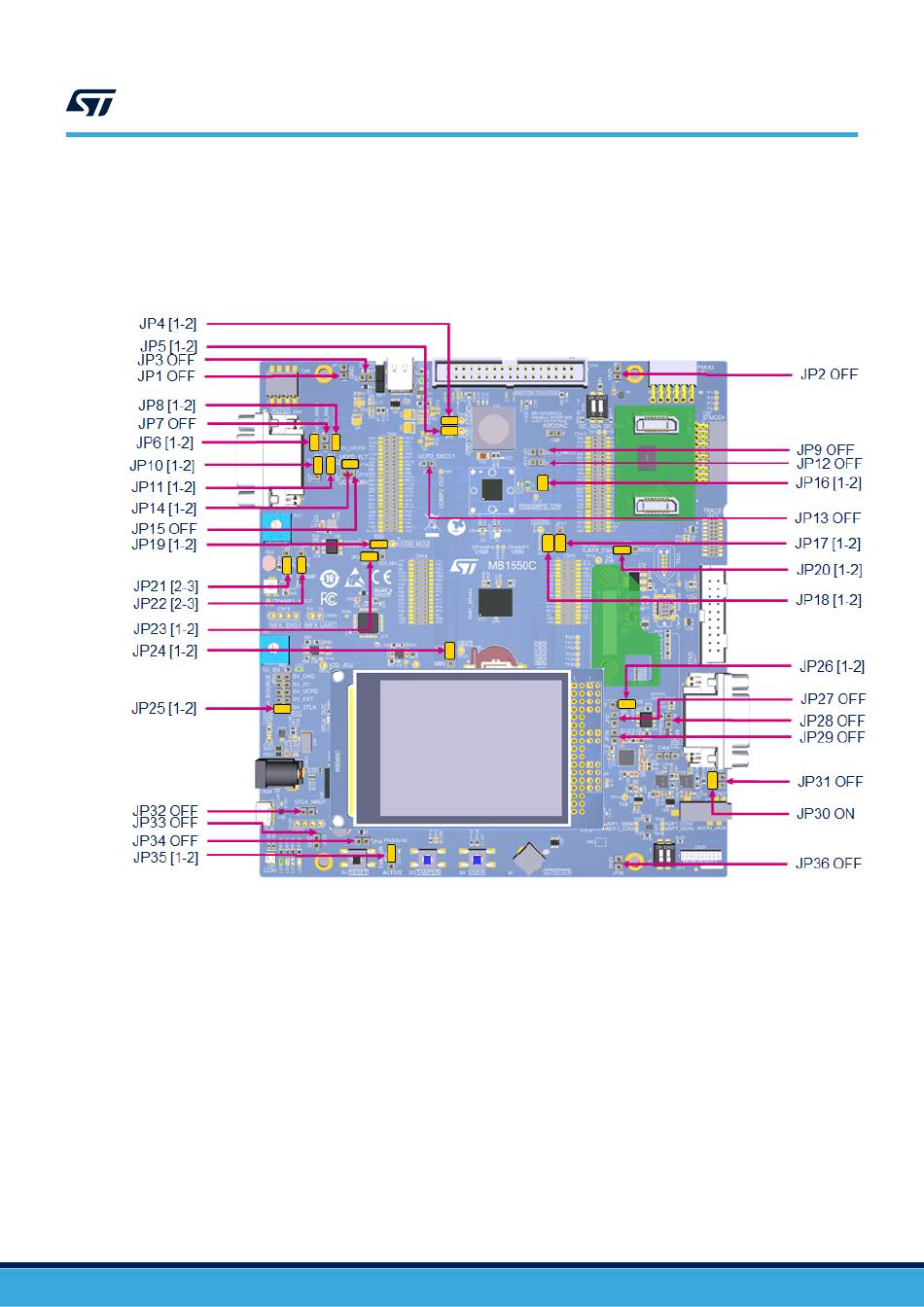

Figure 6 summarizes the jumper default settings of the STM32U575I-EV Evaluation board.
UM2854 - Rev 1
Figure 6. Jumper default board configuration
STM32U575I-EV
Default board configuration
page 10/105
