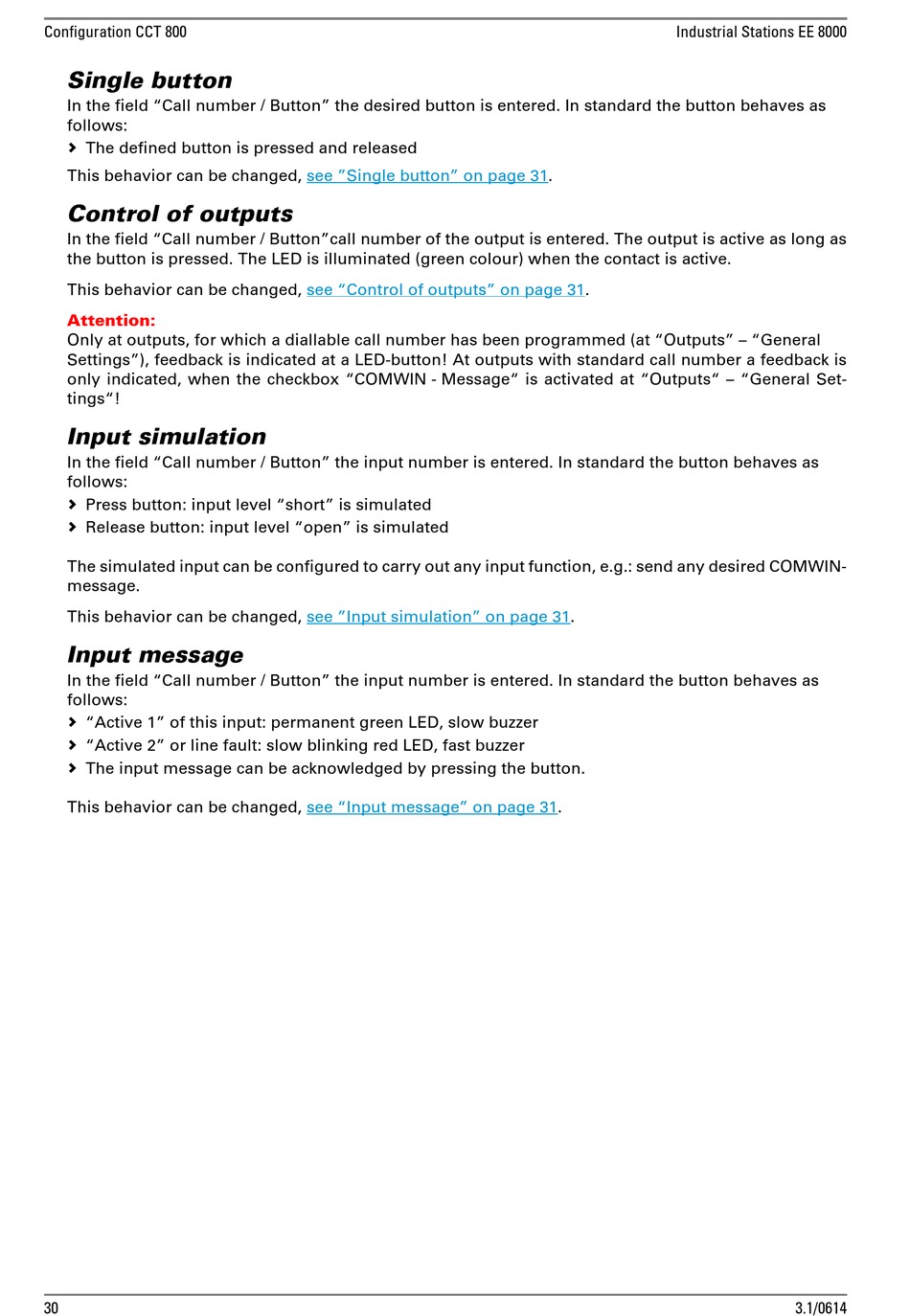

Commend EE 8000 Product Manual page 30

Configuration CCT 800
Single button
In the field "Call number / Button" the desired button is entered. In standard the button behaves as
follows:
 The defined button is pressed and released
This behavior can be changed,
Control of outputs
In the field "Call number / Button"call number of the output is entered. The output is active as long as
the button is pressed. The LED is illuminated (green colour) when the contact is active.
This behavior can be changed,
Attention:
Only at outputs, for which a diallable call number has been programmed (at "Outputs" – "General
Settings"), feedback is indicated at a LED-button! At outputs with standard call number a feedback is
only indicated, when the checkbox "COMWIN - Message" is activated at "Outputs" – "General Set-
tings"!
Input simulation
In the field "Call number / Button" the input number is entered. In standard the button behaves as
follows:
 Press button: input level "short" is simulated
 Release button: input level "open" is simulated
The simulated input can be configured to carry out any input function, e.g.: send any desired COMWIN-
message.
This behavior can be changed,
Input message
In the field "Call number / Button" the input number is entered. In standard the button behaves as
follows:
 "Active 1" of this input: permanent green LED, slow buzzer
 "Active 2" or line fault: slow blinking red LED, fast buzzer
 The input message can be acknowledged by pressing the button.
This behavior can be changed,
30
see "Single button" on page
see "Control of outputs" on page
see "Input simulation" on page
see "Input message" on page
Industrial Stations EE 8000
31.
31.
31.
31.
3.1/0614
