Commend ES 962H Manual

ES 962H / ES 962HM
Compact vandal-resistant IP Intercom station.

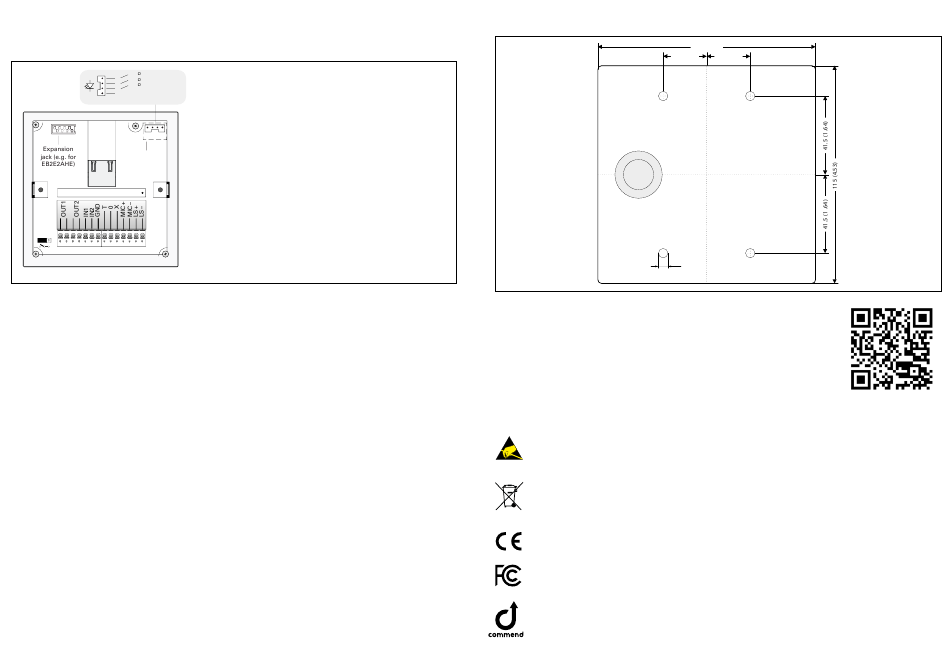

Connection diagram
100
internal series
+5V
B
100
resistors
G
100
R
JST jack
+5V
R/G/B
for external high power LEDs
Opening can
be turned
outwards
IP Uplink
JP1
JP1
NOTE
The station is a hybrid product and can be booted as IoIP device or SIP device. Per factory default,
the boot mode of the module is "SIP" . The boot mode can be changed to "IoIP" via the configuration
software IP Station Config (min. Version 4.0.5).
First connection (SIP)
The IP address is assigned directly via the DHCP server. If DHCP is not available in the network, the
default address 192.168.1.200 will be used. The web interface can be accessed via a web browser using
the URL http://<IP address>.
Login
User name: admin
Password: commend
Mounting instructions
• Observe the country specific standards for installation, mounting and configuration.
• The stations are designed especially for building into American "2-Gang" boxes. Box and mounting
screws are not included in the extent of supply.
• For stations to be mounted in outdoor areas, the screws must be closed with a sealing compound.
• Do not mount the station with the faceplate facing the weather side.
• In operation as a SIP version, this is a Class A product (standard EN 55032). In a domestic environ-
ment this product may cause radio interference in which case the user may be required to take
adequate measures.
• This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Extent of supply
• Intercom station
• Device identification document
• Short reference
• The call button is connected to
"GND" and "0" and is adjusted as
normally closed contact.
• OUT 1 is factory adjusted as nor-
mally open contact. Via the jumper
JP1, the output can be converted
into a normally closed contact.
• OUT 2 is factory adjusted as nor-
mally open contact.
• PoE ("Power over Ethernet"):
IEEE 802.3af standard.
Power consumption of the
terminal device: Class 0.
ATTENTION
The spring clamp terminal will be
damaged when inserting a screw-
driver into the cable opening.
Dimensions
Front panel thickness: 3 mm (0.12). Measuring units in mm (in), not to scale!
23 (0.91)
Mounting holes (4x)
ø 5 (0.2 )
Send feedback
We are constantly striving to make our products even better. Follow the link to
the Commend feedback form and let us know what you think.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
This device must not be disposed of together with household waste or commercial waste.
In the EU: The directive 2012/19/EU applies (Waste from Electrical and Electronic Equipment,
WEEE). Worldwide: The country-specific regulations for disposal apply.
Manufacturer's reference
CE – This device complies with the directives listed below by fulfilling corresponding standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
FCC – CAN ICES-3 (A)/NMB-3(A); for the FCC Rules, see "Mounting instructions" .
Contact Commend USA: Commend Inc, 63 Ramapo Valley Road, Suite 201,
Mahwah, NJ 07430 (New York Area), www.commendusa.com
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-ES962H, Version: 1.4/1124 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
