Installation
Outdoor mounting

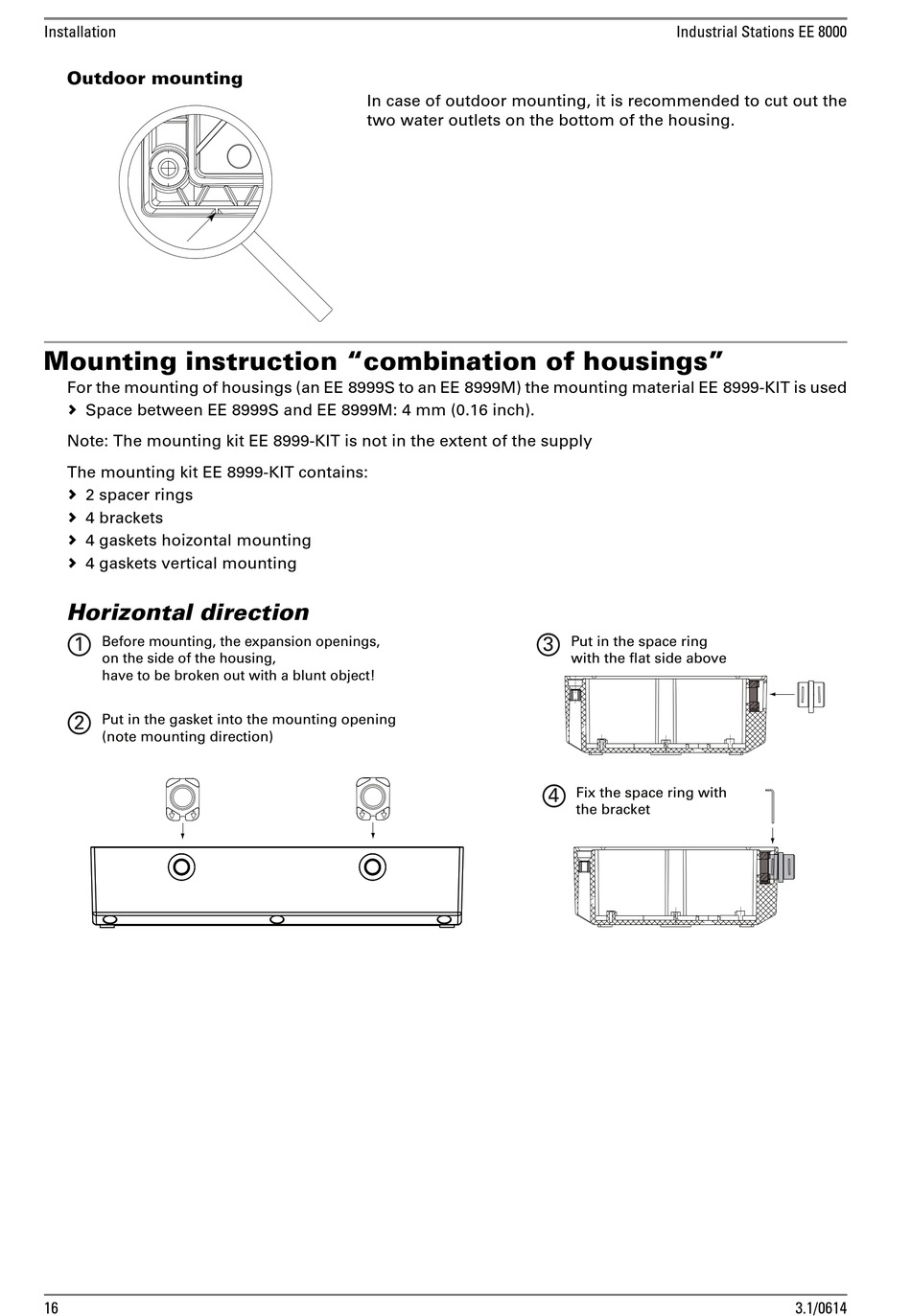

Mounting instruction "combination of housings"

For the mounting of housings (an EE 8999S to an EE 8999M) the mounting material EE 8999-KIT is used
 Space between EE 8999S and EE 8999M: 4 mm (0.16 inch).
Note: The mounting kit EE 8999-KIT is not in the extent of the supply
The mounting kit EE 8999-KIT contains:
 2 spacer rings
 4 brackets
 4 gaskets hoizontal mounting
 4 gaskets vertical mounting
Horizontal direction
Before mounting, the expansion openings,
1
on the side of the housing,
have to be broken out with a blunt object!
Put in the gasket into the mounting opening
2
(note mounting direction)
16
In case of outdoor mounting, it is recommended to cut out the
two water outlets on the bottom of the housing.
Industrial Stations EE 8000
Put in the space ring
3
with the flat side above
Fix the space ring with
4
the bracket
