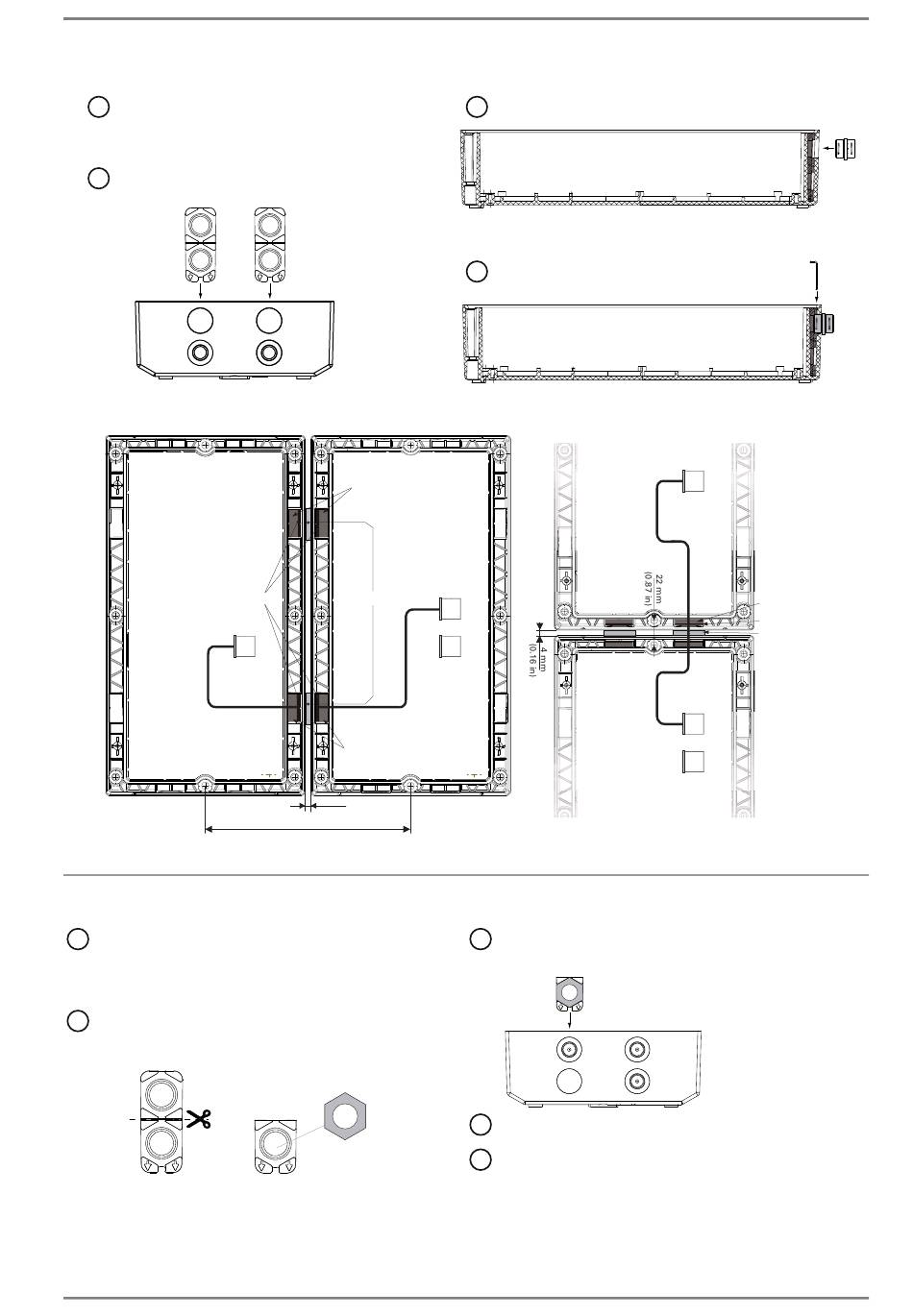

Mounting Gland - Commend EE 8000 Product Manual

Industrial Stations EE 8000
Vertical direction
Before mounting, the two overhead openings
1
have to be broken out with a blunt object!
Put in the gasket into the mounting opening
2
(note mounting direction)
Mounting example
EE 8999M
EE 8999M

Mounting gland

Before mounting, the expansion openings
1
have to be broken out with a blunt object!
1
) Cut the gasket in half
2
(if one expansion opening is used)
2
) Put the screw nut into the used gask opening
1) 2)
Note: The gland M20 (in extent of supply) is for mounting cables with a diameter of 4 mm to 9 mm (AWG 6 to AWG 00).
3.1/0614
gaskets
space rings
brackets
to
connection cable
gaskets
4 mm
(0.16 in)
178 mm (7.0 in)
Put in the space ring with the flat side above
3
4
Fix the space ring with
the bracket
EE 8999S
from
EE 8999M
EE 8999M
EE 8999S
to next
EE 8999M
Put the gasket + screw nut
3
into the mounting opening
(note mounting direction)
4
Fasten the gland
5
Close not-used expansion openings
with with dummy plugs
Installation
to
EE 8999M
gaskets
space rings
brackets
from
EE 8999M
to next
EE 8999M
17
