Connections to the PBXgateway II

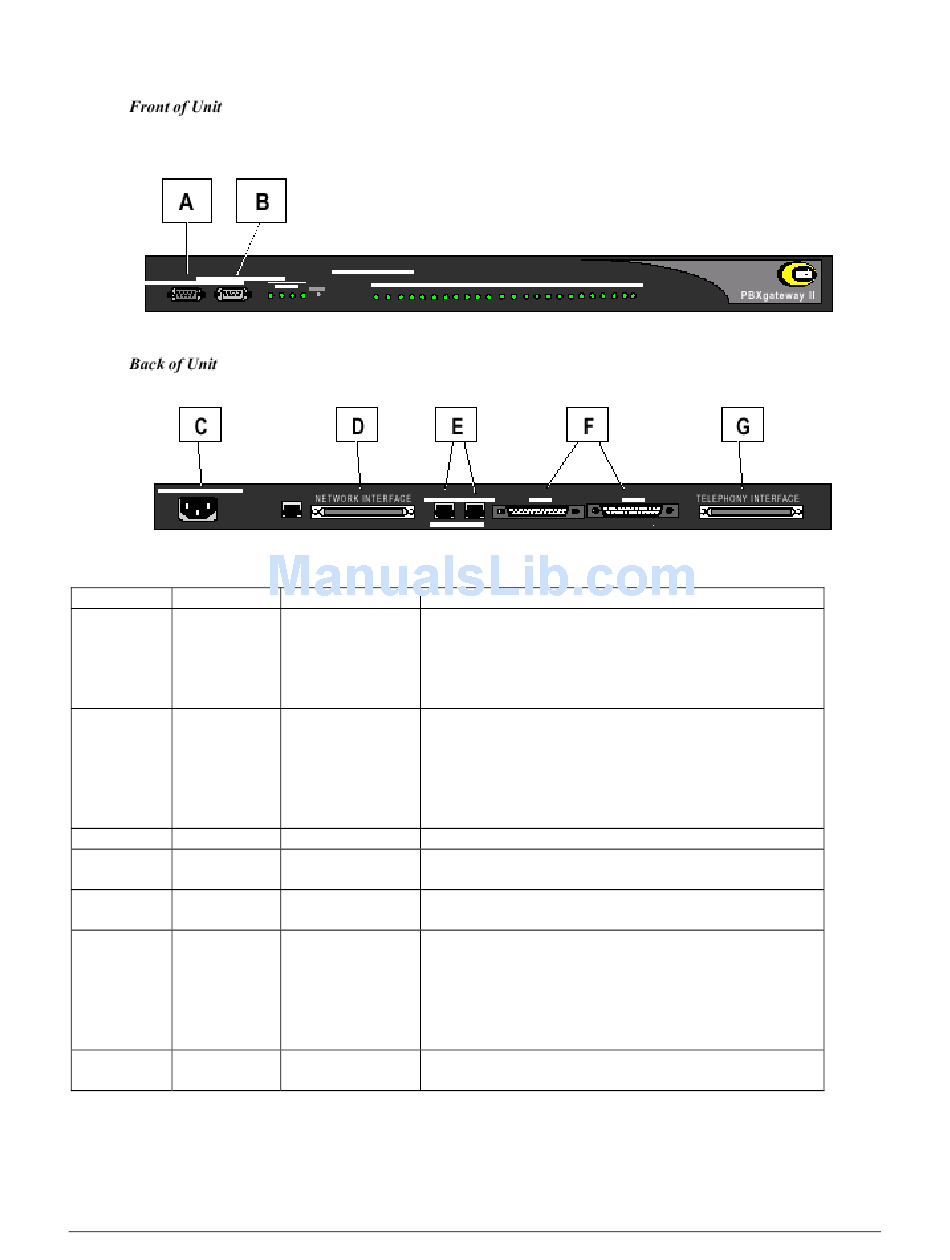

The PBXgateway requires connections A through E as shown below.
Table 1:
PBXgateway II Connectrions
Letter
Label
A
Console
B
Modem
C
100-240V
D
Network
Interface
E
AUX LAN
F
WAN1
WAN2
G
Telephony
Interface
PBXgateway II Quick Installation Guide
Cable Type
Description
DB-9
Direct serial connection to a PC.
Note: Set the COM port as follows; Baud rate:
9600, Databits: 8, Parity: none, Stopbits: 1,
Software flow control: XON/XOFF
DB-9
Direct serial connection to a modem for remote
access.
(DTE).
Note: Set the COM port as follows; Baud rate:
9600, Databits: 8, Parity: none, Stopbits: 1,
Software flow control: XON/XOFF
Power
Connect to a 120VAC outlet.
-
Future use.
RJ 45 Ethernet
Used for administrative purposes. (Telnet, FTP
(10/100baseT)
and HTML)
DB 25, serial,
Used for a synchronous or asynchronous-serial
straight-through
connection. Connect to a FRAD, CSU/DSU or
other network device.
Note: An RS-530 type cable or DB-25 to M34
cable should be used for high-speed links to V.35
equipment.
RJ 21
Wire to a punch down block and then to the PBX.
