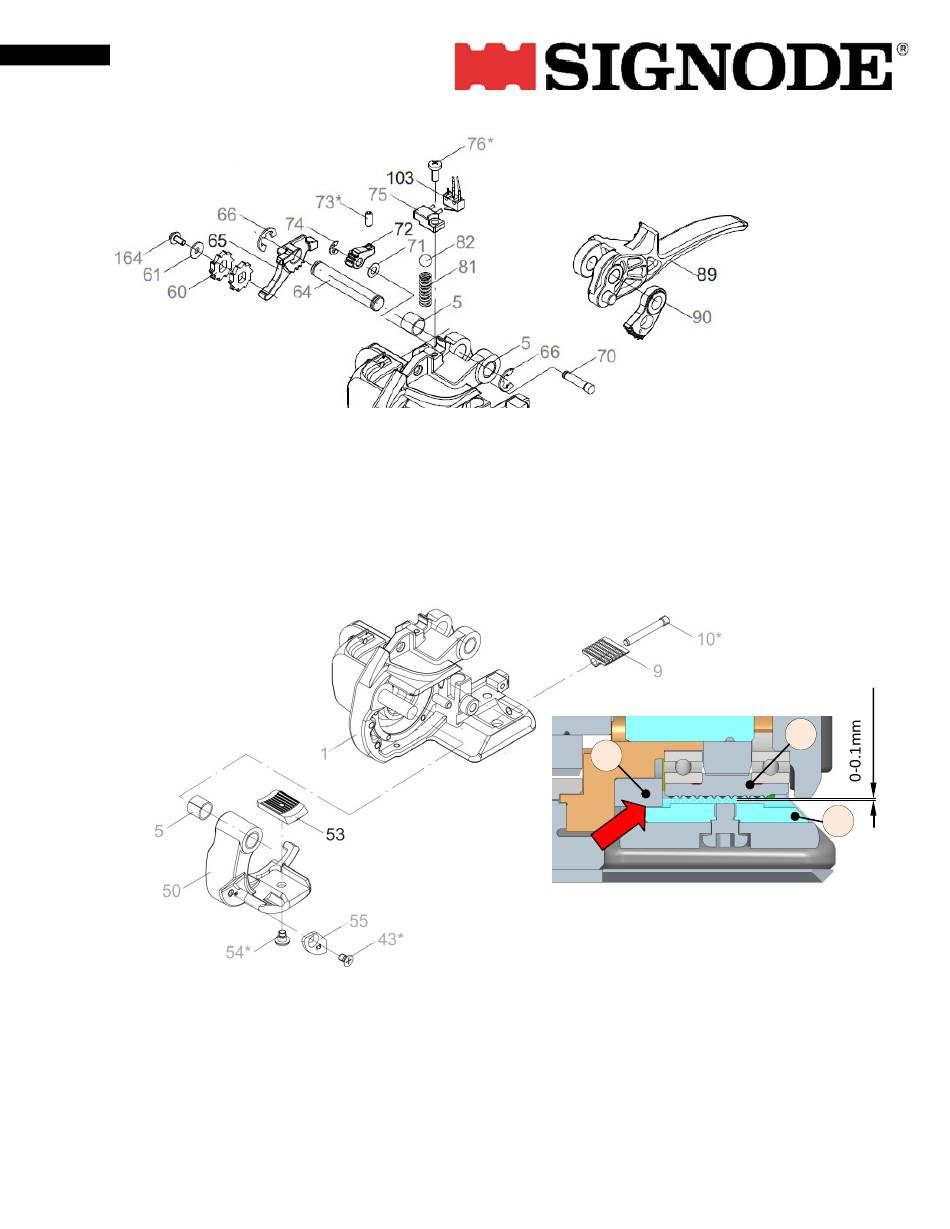

3.3. Rocker lever and reset

The Blocking Pawl (pos. 65) prevents the tension gear from turning backwards during tensioning. After
strapping has taken place, the rocker lever (pos.89) is pulled, the pawl and therewith the tension is
released. The reset cam (pos. 72) brings the welding unit back to its initial position.
The Micro switch (Part of pos. 103) scans the position of the rocker lever. When the lever is pulled, the
PCB does not allow initiating any function.

3.4. Rocker and toothed plate

ak 03.11
44
The tooth plate (Pos. 53) is not tightened onto the rocker.
This principle has the advantage that regardless the strap
thickness the contact pressure is always consistent. The
gap between tooth plate and the tension wheel (Pos. 46) is
ensured by a bedstop on the cam disk, (Pos.44) notice the
arrow.
46
53
