7.4. Tensioning gear

8. Assembly

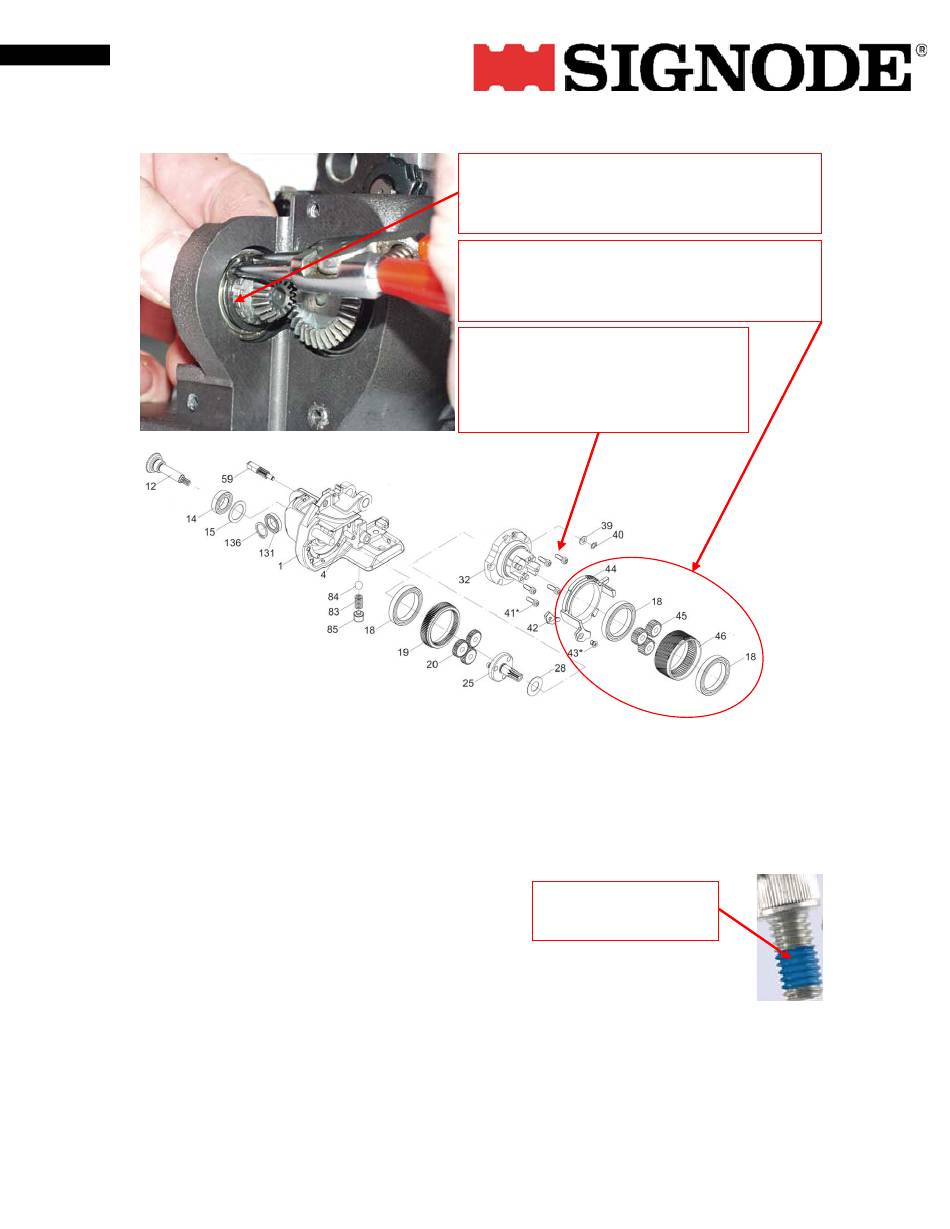

To assembly the tool, simply proceed in the opposite way. Please consider the explosion drawing which
is printed on the last pages of the operating and safety instructions. All positions which are marked with
* have to be secured. Most screwings are TufLok ® coated and secured. Do not use these screws several
times. Replace them with new original screws or secure them with loctite.
Moving parts need to be lubricated. Please consider
chapter 10.
Information about how to assemble the wiring and the
housing can be found in chapter
ak 3.11
1. Remove retaining ring (Pos. 136). The bevel
wheel complete is now free to be pulled out.
2. Remove the tension wheel, the planetary
wheels and the cam disk (Pos. 44-46 & 18) from
flange complete (Pos.32).
3. Loosen the screw connection
(5xPos.41) and remove retaining ring
(Pos 40). All other gear parts can now
easily be removed.
11.
Screw with TufLok ®-
coating
