BXT 2

BXT 2-19

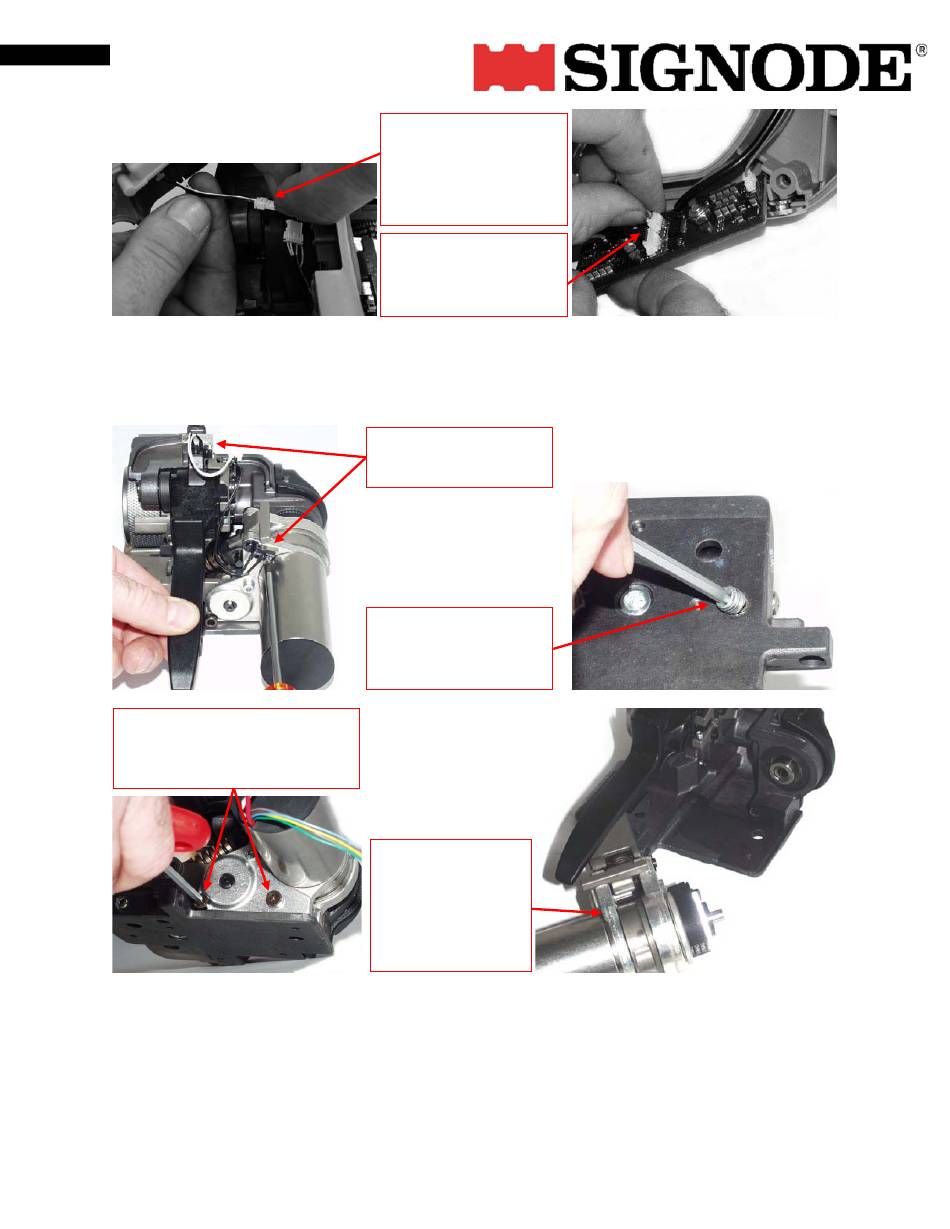

7.2. Welding unit

3. Loosen centering screws (2x

Pos. 101) and remove them

completely.

ak 3.11

7. Disconnect the

Intermediate cable

(Pos. 201). Remove the

left part of the housing

8. Disconnect the

motor hall sensor

wirings

1. Remove cable

tensioning (Pos. 103)

2. Remove set screw

and compression

spring (Pos. 86 & 169).

4. The whole

welding unit can

now be pulled

backwards.
