Wiring Diagramm - Signode BXT 2 Maintenance Manual
Hide thumbs
Also See for BXT 2:
- Operation manual (36 pages) ,
- Operation, parts and safety manual (16 pages) ,
- Operating instructions manual (36 pages)
Table of Contents
Advertisement
BXT 2
BXT 2-19
28
E38
DRIVE_HALLSENSORERR
OR
13.

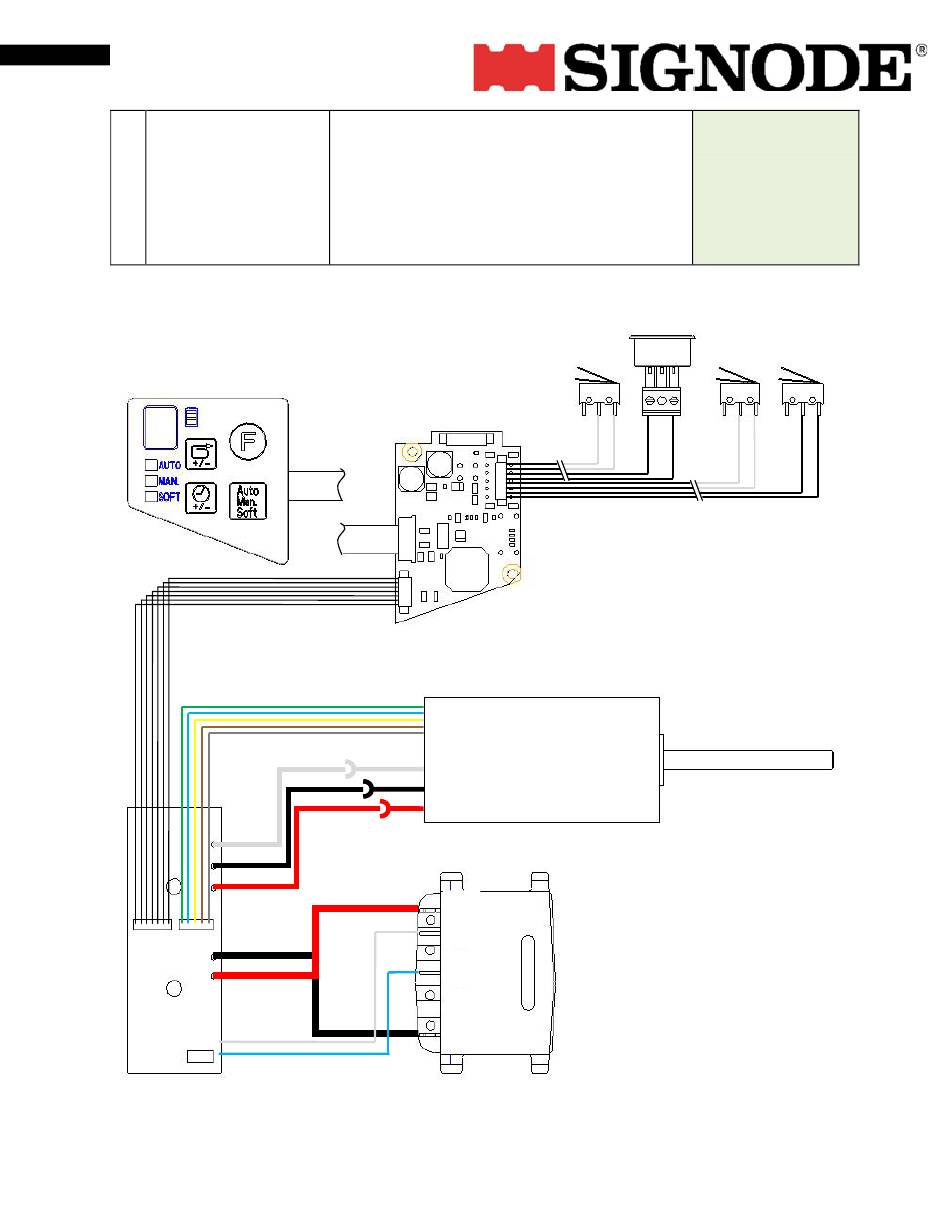

Wiring diagramm:
ak 3.11
Description:
Hallsensor failure at power electronics
Possible cause:
•
Motor hall-sensor defective
•
Wiring to hall-sensors faulty
Rectification:
1.
Check wiring motor to power electronics
2.
Replace the motor
3.
Replace the power electronics (Pos 212)
EC-Motor
+
Code-R
NTC
-
Interruption
Current process is
interrupted. Tool is in
standby mode again.
welding
Rocker
tensioning
lever
Cam
signal
