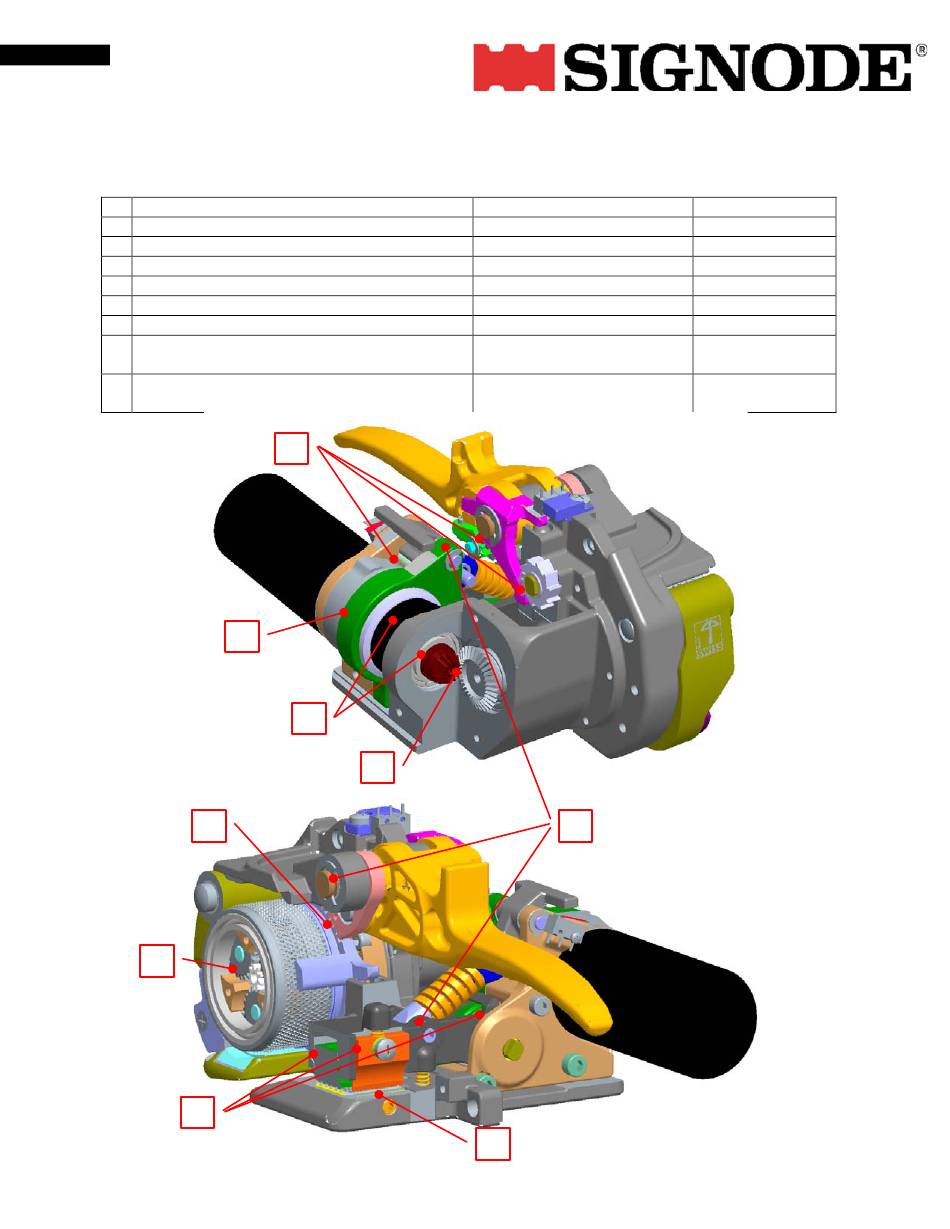

Lubricating chart

Recommended Lubrication:
Description:
1 Planetary gear tensioning
2 Planetary gear welding unit
3 Freewheels (Pos. 127/ 132) Important! No grease!
4 Bevel gear
5 Cam disk, reseting cam, switching cam
6 Tooth plate, Set screw
7 All other moving parts.
8 Ball guides at welding shoe, knife guide, excentric
axle
2
5
1
8
ak 3.11
5
3
4
Lubricant:
Klüber Microlube GBU-Y 131
Klüber Microlube GBU-Y 131
Universal oil e.g. WD 40
Klüber Microlube GBU-Y 131
Klüber Microlube GBU-Y 131
Klüberpaste 46 MR 401
Pressure resistant lubricant
spray, e.g. Würth HHS 2000
Pressure resistant lubricant
spray, e.g. Würth HHS 2000
7
6
Interval:
100'000 Cycles
100'000 Cycles
100'000 Cycles
50'000 Cycles
50'000 Cycles
50'000 Cycles
50'000 Cycles
25'000 Zyklen
