11.

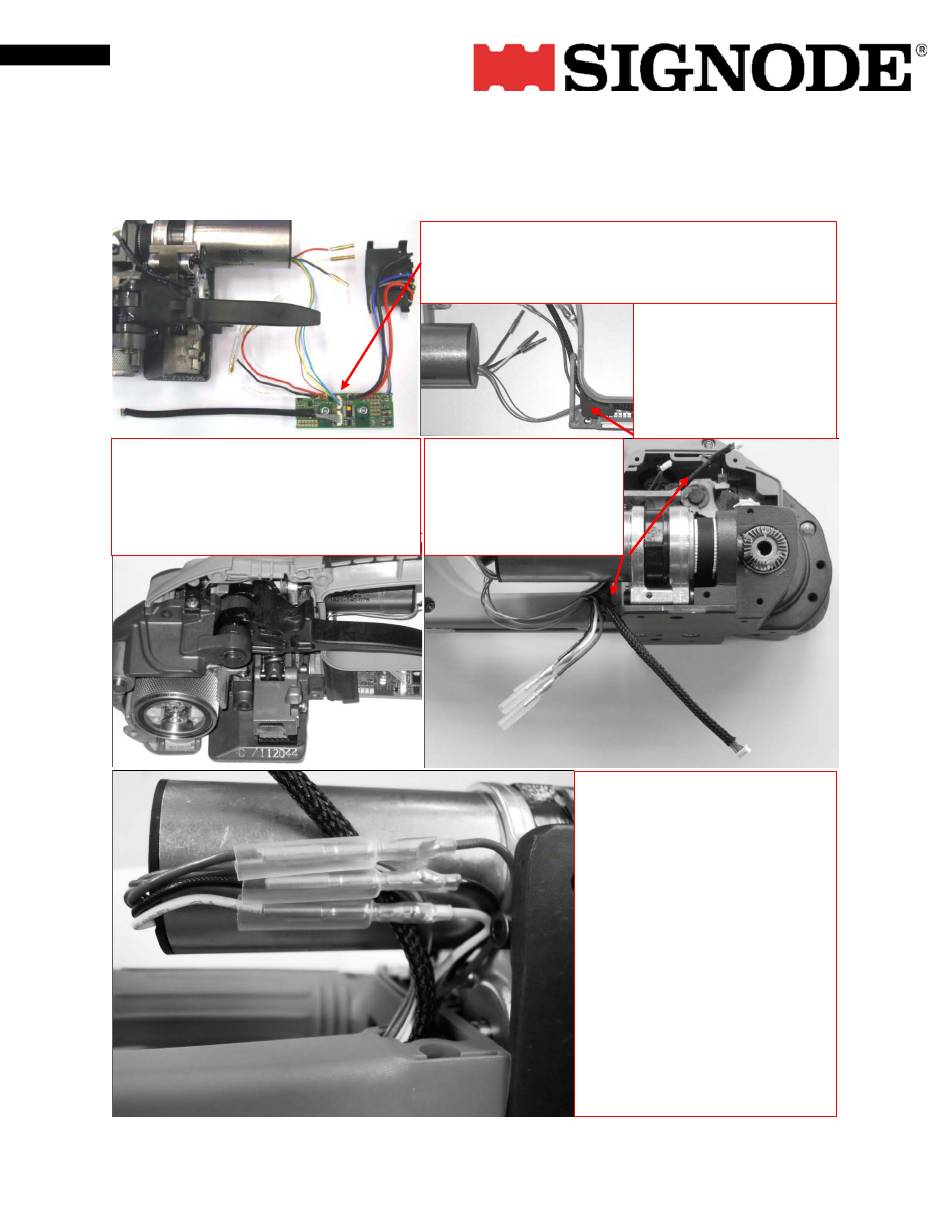

Wiring

The cables must be layed very accurate. Misplaced wiring could be damaged by moving parts inside the
tool. Bad connections may lead to tool malfunction.
3. Mount the right half of the housing to
the tool mechanics. Insert the contact
plate with spring (Pos. 168) Take care
.that the cables are laid accurately.
ak 3.11
1. Prepare the power electronics for the assembly.
Connect the hall sensor cables and the signal cable to
the power electronics.
4. Mount the left side of
the housing and screw
them together. Place the
wires as on the picture.
5. Plug the motor cables. You
don't need a cable strap as the
motor housing prevents them
from disconnecting.
Place the signal cable and the hall
sensor wires as on the picture.
2. Insert the power elec-
tronics .into the right half of
the housing. Place the wires
according the picture. Don't
forget the seal.
