Rocker Lever And Reset - Signode BXT 2 Maintenance Manual

BXT 2 BXT 2-19
17

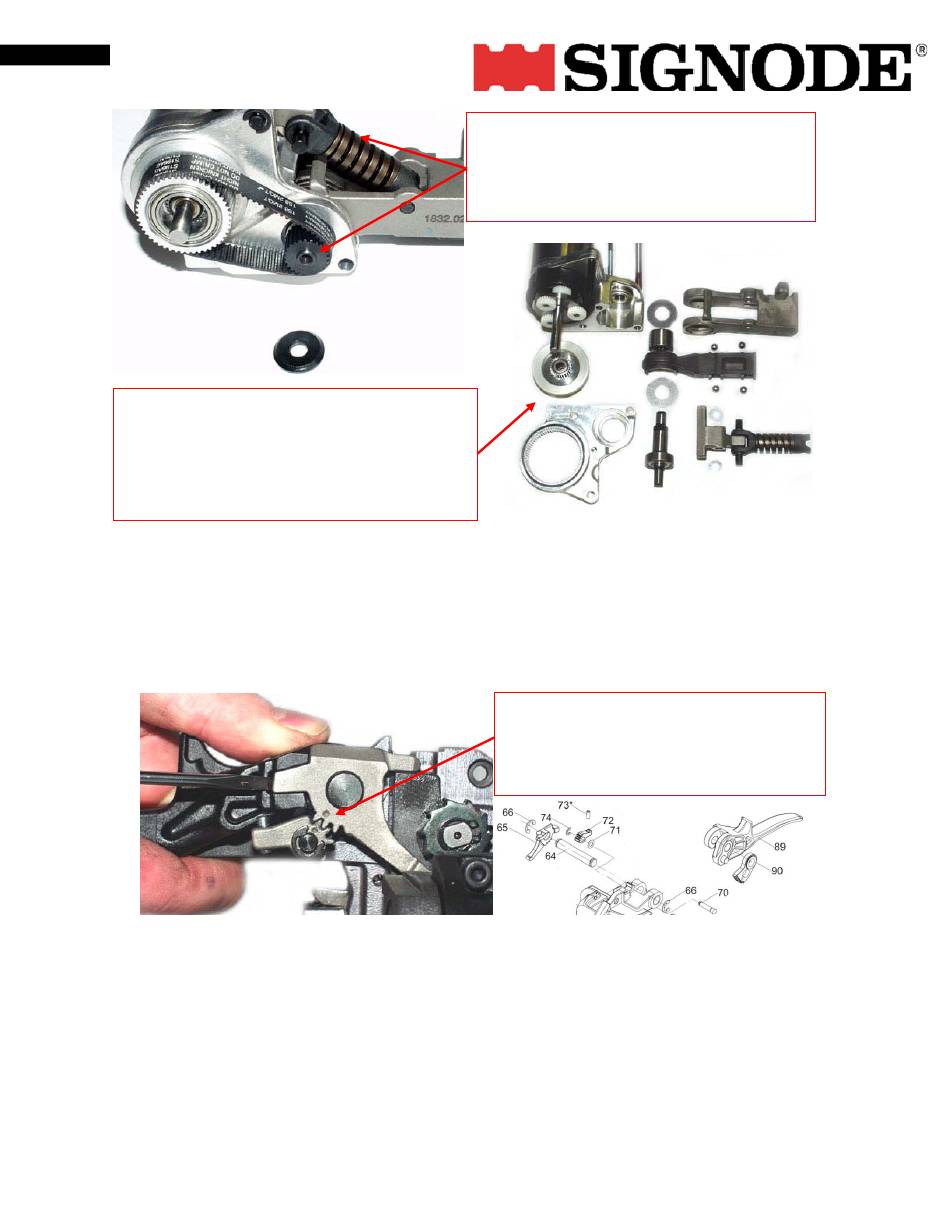

6. Pull out the toothed belt wheel (Pos. 127).
Remove screw (Pos.102) and retaining rings
(Pos. 74). The cover of the motor support (Pos.
126) can now be removed.
Important!: The motor is fixed to the motor support with precote®-coated screws. Should it become
necessary to replace the motor the screws have to be warmed with a hot air fan to 80°C maximum.

7.3. Rocker lever and reset

ak 3.11
5. Remove washer (Pos.163). To do so, retain
the excentric axe (Pos.155) with a 5mm
wrench on its back side and loosen the screw
(Pos. 164).
1. Remove retaining rings (Pos. 66 & 74).
Loosen the blocking pawl with a screw
driver and pull it off the lever. Remove the
bolt (Pos.64).
