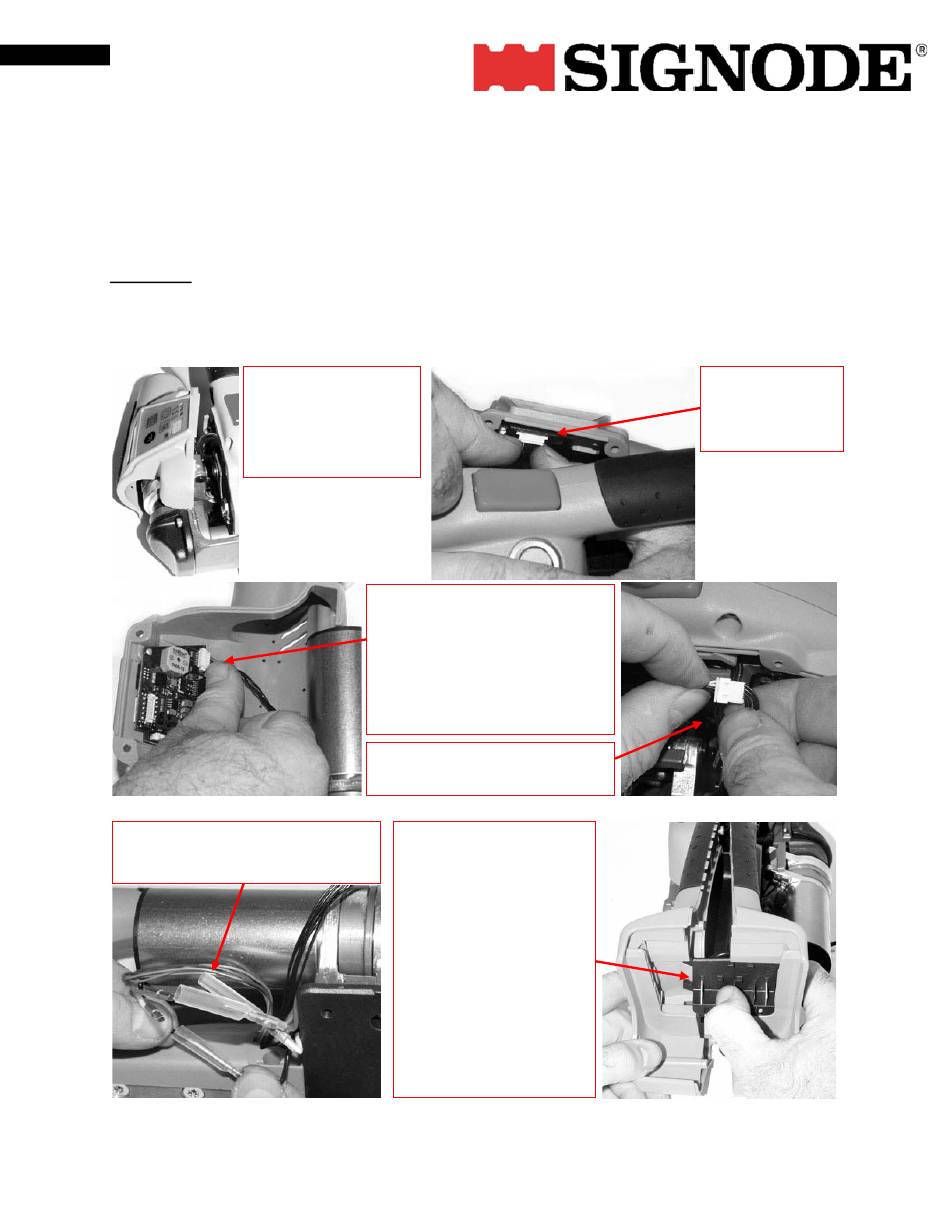

7. Disassembling

Please consider the explosion drawing which is printed on the last pages of the operating instructions.
Purpose of this manual is only to draw the technician's attention to the most relevant issues.

7.1. Housing/electrical components

Important! The connectors and cables have to be treated carefully. Never pull on the wiring to
disconnect the connectors.
1. Remove the screws
of the motor cover
(Pos. 191) and pull it
slightly backwards.
5. Disconnect the motor from the
power electronics
ak 3.11
3. Disconnect the signal cable
(Pos. 202) from the PCB. If the
harness is secured with a cable
tie, cut tit.
Remove the motor cover.
4. Disconnect and remove the
intermediate cable (Pos. 201).
6. Remove side cover
(Pos. 175), 4 x Screw M4
(Pos. 41). Loosen the
screws of the housing, 7
x Pos.197.
Disassemble the housing
(notice the picture). Pay
attention to the wiring,
the housing cannot yet
be removed completely.
2. Disconnect
the intermediate
cable (Pos. 201)
