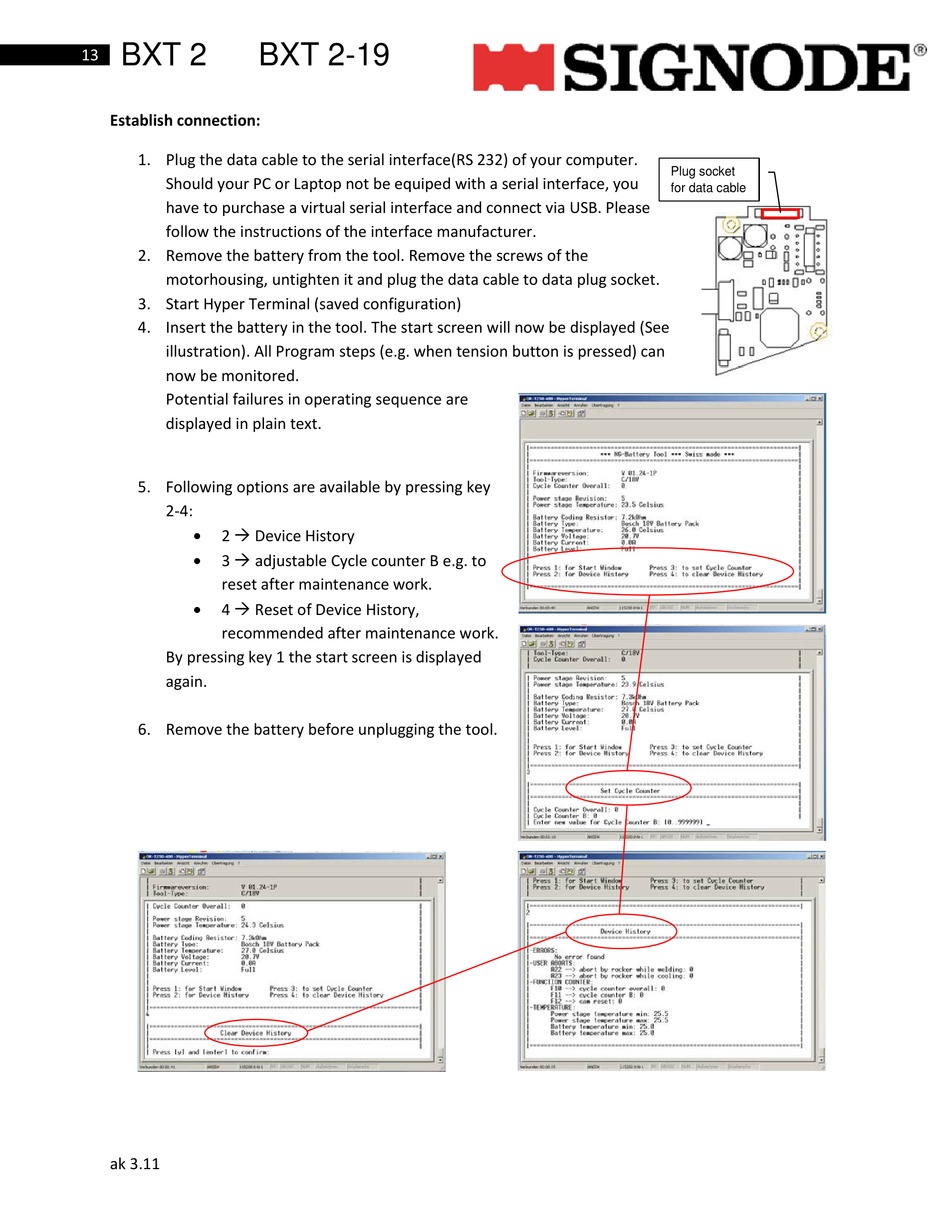

Signode BXT 2 Maintenance Manual page 13

BXT 2 BXT 2-19
13
Establish connection:
1. Plug the data cable to the serial interface(RS 232) of your computer.
Should your PC or Laptop not be equiped with a serial interface, you
have to purchase a virtual serial interface and connect via USB. Please
follow the instructions of the interface manufacturer.
2. Remove the battery from the tool. Remove the screws of the
motorhousing, untighten it and plug the data cable to data plug socket.
3. Start Hyper Terminal (saved configuration)
4. Insert the battery in the tool. The start screen will now be displayed (See
illustration). All Program steps (e.g. when tension button is pressed) can
now be monitored.
Potential failures in operating sequence are
displayed in plain text.
5. Following options are available by pressing key
2-4:
• 2  Device History
• 3  adjustable Cycle counter B e.g. to
reset after maintenance work.
•
4  Reset of Device History,
recommended after maintenance work.
By pressing key 1 the start screen is displayed
again.
6. Remove the battery before unplugging the tool.
ak 3.11
Plug socket
for data cable
