6.5 ENGINE AND TRANSMISSION REMOVAL
1. Remove seat, side panel cover L, side panel
cover R, protect cover, seat frame cross brace，
seat frame pipe, fuel tank, shift rods, tool box and
plates.
2. Remove feed and return hoses (refer to Engine
chapters).
3. Remove throttle cable wire connected to carburetor.
4. Disconnect engine from wiring harness completely.
5. Disconnect gear position indicator switches.
6. Remove fuel line connected to carburetor and
drain line.

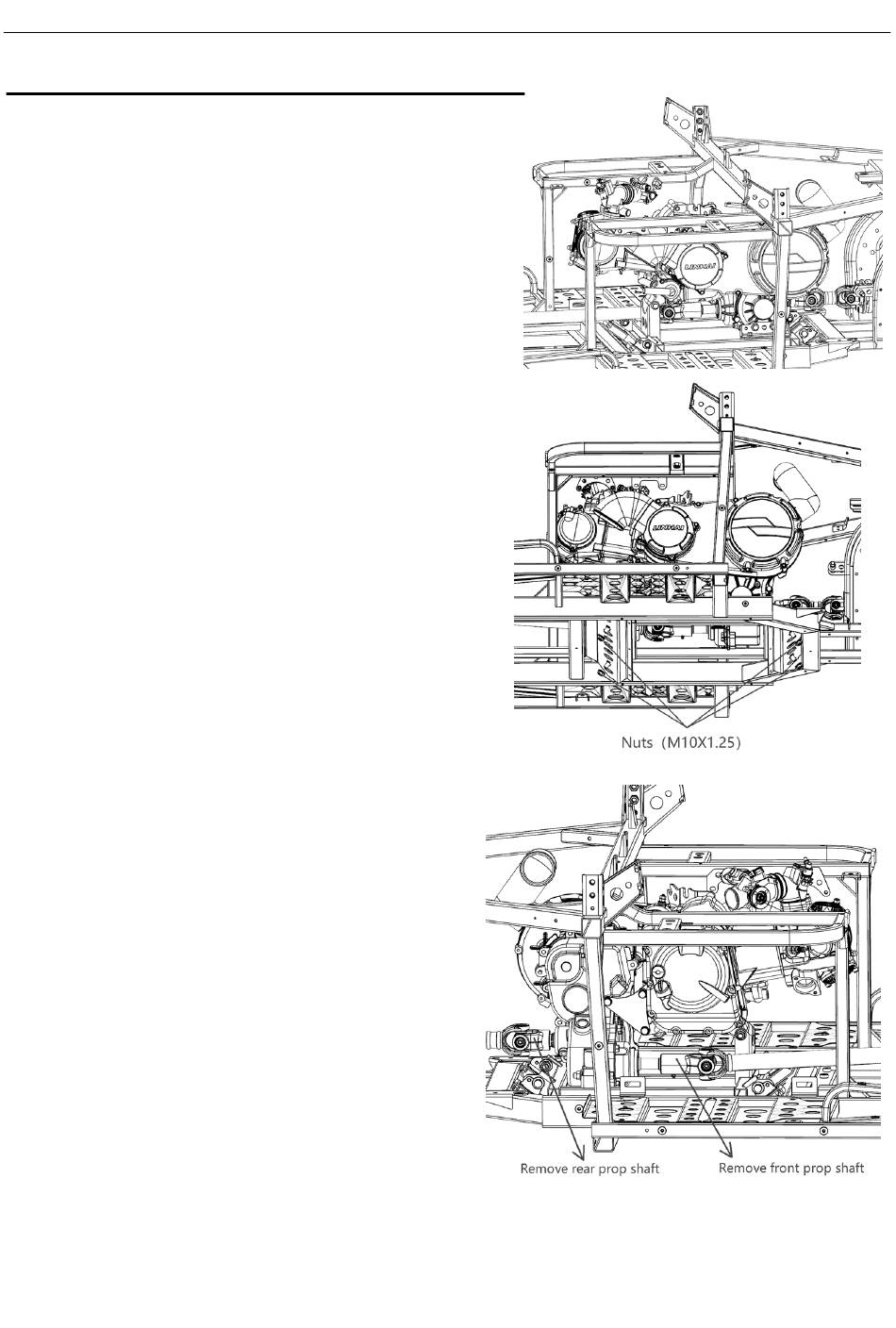

7. Loose and remove four nuts (M10x1.25) between
the engine mount bracket and the frame. Loose
four bolts (M12X1.25X25) and nuts (M12x1.25)
from rubber dampers.
8. Remove the front prop shaft and rear prop
shaft (4WD, see chapter 5).
