Linhai M750L T3 Owner's/Operator's Manual

4x4
Hide thumbs
Table of Contents

Advertisement

Quick Links

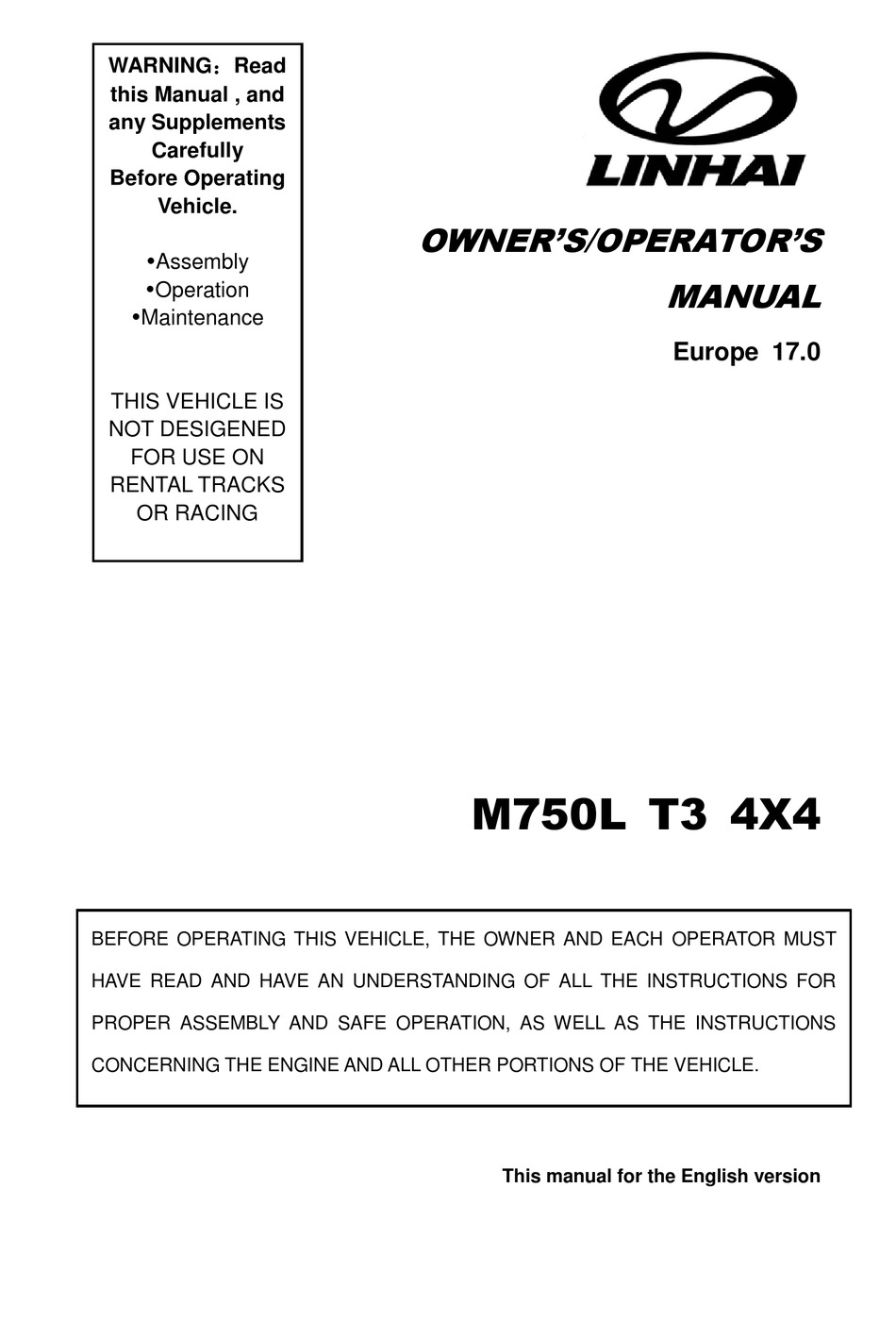

WARNING：Read
this Manual , and
any Supplements
Carefully
Before Operating
Vehicle.
Assembly
Operation
Maintenance
THIS VEHICLE IS
NOT DESIGENED
FOR USE ON
RENTAL TRACKS
OR RACING
BEFORE OPERATING THIS VEHICLE, THE OWNER AND EACH OPERATOR MUST
HAVE READ AND HAVE AN UNDERSTANDING OF ALL THE INSTRUCTIONS FOR
PROPER ASSEMBLY AND SAFE OPERATION, AS WELL AS THE INSTRUCTIONS
CONCERNING THE ENGINE AND ALL OTHER PORTIONS OF THE VEHICLE.
OWNER'S/OPERATOR'S
M750L T3 4X4
This manual for the English version
MANUAL
Europe 17.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M750L T3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linhai M750L T3

Summary of Contents for Linhai M750L T3

  • Page 1 FOR USE ON RENTAL TRACKS OR RACING M750L T3 4X4 BEFORE OPERATING THIS VEHICLE, THE OWNER AND EACH OPERATOR MUST HAVE READ AND HAVE AN UNDERSTANDING OF ALL THE INSTRUCTIONS FOR PROPER ASSEMBLY AND SAFE OPERATION, AS WELL AS THE INSTRUCTIONS CONCERNING THE ENGINE AND ALL OTHER PORTIONS OF THE VEHICLE.

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·1-1—1-3 2. UNDERSTANDING WARNING · · · · · · · · · · · · · · · · ·2-1—2-2 3.

  • Page 3: Introduction

    OWNER’S/OPERATOR’S MANUAL 17.0 M750L T3 1. Introduction Congratulations on the purchase of your ALL Terrain Vehicle (ATV). We take pride in offering you this product engineered and manufactured to the highest performance and quality standards. We are sure that you will enjoy superior levels of performance, reliability, riding comfort, and safety.
  • Page 4 OWNER’S/OPERATOR’S MANUAL 17.0 M750L T3 1. Introduction AN ATV CAN BE HAZARDOUS TO OPERATE. An ATV handles differently from other vehicles including motorcycles and cars. A collision rollover can occur quickly, even during routine maneuvers such as turning and driving on hills or over obstacles, if you fail to take proper precautions.
  • Page 5 OWNER’S/OPERATOR’S MANUAL 17.0 M750L T3 1. Introduction Never go over the top of any hill at high speed.  Always follow proper procedures for going down hills and for braking on hills as described in this manual. Check the terrain carefully before you start down any hill.

  • Page 6: Understanding Warning

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 UNDERSTANDING WARNINGS ATTENTION: This is an ADULT VEHICLE ONLY: not a toy. READ AND UNDERSTAND WARNINGS AND OWNER’S MANUAL BERORE OPERATION. KNOW YOUR VEHICLE BEFORE YOU BEGING RIDING! Read this manual thoroughly referring to the various areas which are being discussed on your machine.
  • Page 7 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 UNDERSTANDING WARNINGS SAFETY ALERT WARNINGS identify special instructions or procedures which, if not correctly followed, could result in personal injury, or loss of life. Read all WARNINGS in this manual care fully. Follow their instructions to remain safe.
  • Page 8 OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 SFETY WARNING Attention: There is a risk of fire from driving the vehicle on the ground where grass has dried up or parking the vehicle on such surface while the engine is hot. NOTE： Warning decals have been placed on the vehicle for your protection. Read and follow the instructions on each decal carefully.
  • Page 9 OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 SFETY WARNING...
  • Page 10 OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 SFETY WARNING...
  • Page 11 OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 SFETY WARNING...
  • Page 12 OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 SFETY WARNING...
  • Page 13 OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 SFETY WARNING...
  • Page 14 OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 SFETY WARNING...

  • Page 15: Daily Pre-Ride Inspection

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 DAILY PRE-RIDE INSPECTION WARNING You must inspect your ATV each time before riding to ensure it is in proper working order. If proper inspection is not done, severe injury or death could result. Use the following checklist to verify your machine is in proper working order each time you ride.

  • Page 16: Operation Warning

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS Get on and leaver ATV Get on Get on the ATV through left or right by steps. Leave Check that the surroundings are in safe condition and then slowly park the ATV.
  • Page 17 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this ATV after consuming alcohol or drugs. WHAT CAN HAPPEN Could seriously affect your judgment. Could cause you to react more slowly. Could affect your balance and perception.
  • Page 18 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Attempting wheelies, jumps and other stunts. WHAT CAN HAPPEN Increases the chance of an accident, including an overturn. HOW TO AVOID THE HAZARD Never attempt stunts, such as wheelies or jumps.
  • Page 19 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to inspect the ATV before operating. Failure to properly maintain the ATV. WHAT CAN HAPPEN Increases the possibility of an accident or equipment damage. HOW TO AVOID THE HAZARD Always inspect your ATV each time you use it to make sure the ATV is in safe operating condition.
  • Page 20 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to use extra care when operating this ATV on unfamiliar terrain. WHAT CAN HAPPEN You can come upon hidden rocks, bumps, or holes, without enough time to react.
  • Page 21 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Failure to use extra care when operating on excessively rough, slippery or loose terrain. WHAT CAN HAPPEN Could cause loss of traction or vehicle control, which could result in an accident, including an overturn.
  • Page 22 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Turning improperly. WHAT CAN HAPPEN ATV could go out of control, causing a collision or overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for turning as described in the Owner’s Manual.
  • Page 23 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Going down a hill improperly. WHAT CAN HAPPEN Could cause loss of control or cause ATV to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for going down hills as described in the Owner’s Manual.
  • Page 24 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Stalling, rolling backwards or improperly dismounting while climbing a hill. WHAT CAN HAPPEN Could result in ATV overturning. HOW TO AVOID THE HAZARD Maintain steady speed when climbing a hill.
  • Page 25 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Improperly operating over obstacles. WHAT CAN HAPPEN Could cause loss of control or a collision. Could cause the ATV to overturn. HOW TO AVOID THE HAZARD Before operating in a new area, check for obstacles.
  • Page 26 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this ATV through deep or fast flowing water. WHAT CAN HAPPEN Tires may float, causing loss of traction and loss of control, which could lead to an accident.
  • Page 27 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Operating this ATV with improper tires, or with improper or uneven tire pressure. WHAT CAN HAPPEN Use of improper tires on this ATV, or operation of this ATV with improper or uneven tier pressure, may cause loss of control, and increases the risk of an accident.
  • Page 28 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING POTENTIAL HAZARD Overloading this ATV or carrying or towing cargo improperly. WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD...
  • Page 29 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING After a rollover or an accident, have a qualified service dealer check the complete machine including, but not limited to, brakes, throttle and steering for possible damage. WARNING Safe operation of this rider active vehicle requires good judgement and physical skills.
  • Page 30 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 5. OPERATION WARNINGS WARNING HITCH Cautions when installing the implement or dragging the ATV 1. When installing the dragging implement trailer, the engine should stop and the ATV should park at the safety position. Please read implement’s or trailer’s installing instructions, signs and operating manuals carefully before...

  • Page 31: V.i

    OWNER’S/OPERATOR’S MANUAL M750L T3 17.0 6. V.I.N Record these numbers from your ATV in the spaces provided. 1. Frame VIN (found on the lower right side of the frame tube) 2. Engine Serial Number (Left front side of engine crankcase) Remove the spare key and store in a safe place.

  • Page 32: Starting The Engine

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 8. STARTING THE ENGINE Procedure for Starting a Cold Engine WARNING Never run an engine in an enclosed area. Carbon monoxide exhaust gas is poisonous and can cause severe injury or death. Always start engines outdoors.
  • Page 33 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 8. STARTING THE ENGINE casue the starter to overheat and damage the starter. Release the starter button for approximately 10 seconds before pressing it again. 3. Immediately after the engine starts, operate the choke knob to keep fast idle.

  • Page 34: Vehicle Break-In Period

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 9. VEHCLE BREAK-IN PERIOD The break-in period for your new ATV is defined as the first 50 hours of operation. No single action on your part is as important as a proper break in period. Careful treatment of new engine will result in more efficient performance and longer life for the engine.

  • Page 35: Riding Gear

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 10. RIDING GEAR Safe Riding Gear Always wear clothing suite to the type of riding you are doing. ATV riding requires special protective clothing which will make you fell more comfortable and reduce chances of injury.

  • Page 36: Carrying Loads

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 11. CARRYING LOADS Your ATV has been designed to carry a certain amount of load. CARGO WEIGHT should be evenly distributed(1/3 on the front and 2/3 on the rear ) and mounted as low as possible. When operating over rough or hilly terrain, reduce speed and cargo to maintain stable driving conditions.
  • Page 37 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 11. CARRYING LOADS  CARGO WEIGHT DISTRIBUTION should be 1/3 on the front rack and 2/3 on the rear rack. When operating over rough or hilly terrain, reduce speed and cargo to maintain stable driving conditions. Carrying loads on one rack only increases the possibility of vehicle tip over.
  • Page 38 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 11. CARRYING LOADS Use A Safety Chain  A safety chain will help control drawn machinery should it separate from the tractor drawbar.  Use a chain with the strength rating equal to or greater than the gross weight of the towed machinery.

  • Page 39: Riding

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING WARNING The engine rpm limiter will work at 3500rpm, this may cause excessive fuel to build in the exhaust, and ignited by the catalyst in the muffler, MAY RESULT IN THE MUFFLERS OVERHEATING AND FIRE RISK.
  • Page 40 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Making turns Practice making turns at slow speeds This ATV is equipped with a solid rear axle which drives both rear wheels equally at all times. This means that the wheel on the outside of the turn must travel a greater distance than the inside wheels when turning and the inside tire must slip traction slightly.
  • Page 41 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Riding on slippery surfaces Whenever riding on slippery surface such as wet trails or loose gravel, or during cold freezing weather, special attention must be paid to prevent vehicle turnover. Always: 1. Slow down when entering slippery areas.
  • Page 42 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Traveling Uphill WARNING Exercise extreme caution when traveling in hilly terrain. Braking and handling are greatly affected. Loss of vehicle control or overturning of the ATV could occur causing severe injury or death.
  • Page 43 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Sidehilling Side hilling your ATV is one of the most dangerous types of riding and should be avoided. If you do enter into a situation where sidehilling is necessary, always: 1. Slow down.
  • Page 44 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Traveling Downhill. Whenever descending a hill, always: 1. Drive directly downhill. 2. Transfer your weight to the rear of the vehicle. 3. Slow down. 4. Apply the brakes slightly to aid in slowing.
  • Page 45 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Turning Around On a Hill If the ATV stalls while climbing a hill, never back it down the hill! One maneuver which can be used when it is necessary to turn around while climbing a hill is the K-turn.
  • Page 46 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Crossing Streams Your ATV can operate through water up to maximum recommended depths is 8 inch. Before fording steams always: 1. Determine water depths and current. 2. Choose a crossing where both banks have gradual inclines.
  • Page 47 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING CAUTION If you ATV becomes immersed, take it to your dealer before starting the engine.Major engine damage can result if the maching is not thoroughly inspected. If it is impossible to take it to a dealer before starting, follow the steps outlined below.
  • Page 48 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Trail Obstacles Keep Alert! Look ahead and learn to read the trail as you ride.Stay on the right side of the trail, if possible, and be constantly alert for hazards such as logs,rocks and low hanging branches.
  • Page 49 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING WARNING Backing your ATV can be dangerous! You could hit an obstacle or person behind you; or the vehicle could tip over rearward on a steep incline causing severe injury or death. Backing up 1.
  • Page 50 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 12. RIDING Parking on an incline Whenever the vehicle is parked 1. Turn the engine off. 2. Set the parking brake. Confirm the ATV does not move. Engage the PARK gear. 3. Avoid parking on an incline.If it is neceddary to park on an incline,always block the rear wheels on the down hill side as shown above.

  • Page 51: Cvt System

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 13. CVT SYSTEM WARNING The CVT system rotates at high speeds, creating large amounts of force on clutch components. However, as the owner you have the following responsibilities to make sure this system remains safe: ...
  • Page 52 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 13. CVT SYSTEM On this ATV, the approximate gear ratio difference between high and low range is 1:2.17.This difference in gearing affects the operation of the CVT, especially at speeds less than 7 MPH, due to the system’s dependence on engine speed.

  • Page 53: Battery

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 BATTERY WARNING Whenever removing the battery, disconnect the negative (black) cable first. When reinstalling the battery, connect the negative (black) cable last or an explosive situation could result causing serious injury or death. WARNING Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing.
  • Page 54 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 BATTERY Battery Removal 1. Disconnect hold down straps holding the electrical box and battery in position and remove battery cover. 2. Disconnect the black (negative) battery cable first. 3. Disconnect the red(positive) battery cable next.
  • Page 55 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 BATTERY 1. Set the battery in its holder. 2. First connect and tighten the red (positive) cable. 3. Second connect and tighten the black (negative) cable. 4. Reinstall battery cover and attach the hold down strap.

  • Page 56: Exhaust System

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 15. EXHAUST SYSTEM SYSTEM REGULATION TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED! CAUTION: Exhaust system components are very hot during and after use of ATV.  Do not touch exhaust system components. Serious burns can result.

  • Page 57: Maintenance

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE CAUTION Due to the nature of the adjustments marked with a D on the following chart, it is recommended that service be performed by an authorized dealer.  More often under severe use, such as dirty or wet conditions to purge water or dirt contamination from grease fittings and other critical components.
  • Page 58 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Item Hours When Remarks Brake System Pre-ride Pre-ride Pre-ride inspection item Auxiliary Brake Pre-ride Pre-ride Pre-ride inspection item Tires Pre-ride Pre-ride Inspect daily, pre-ride inspection item Wheels Pre-ride Pre-ride Pre-ride inspection item Frame nuts, bolts...
  • Page 59 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Engine Cylinder 25 hrs 3 months Inspect (re-torque required at first Head and Cylinder service only) Base Fasteners Item Hours When Remarks  General Lubrication 50 hrs 3 months Lubricate all fittings, pivots, cables, etc.
  • Page 60 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Replace annually Fuel Filter 100 hrs months Item Hours When Remove Radiator 100 hrs 12 months Inspect/clean external surface Cooling System 50 hrs 6 months Inspect/replace if hoses necessary Spark arrestor 10 hrs...
  • Page 61 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Lubrication Recommendations Item Lube Rec Method Frequency 1. Engine Add to proper Check level 15W/40SG level on dipstick daily 2.Brake Fluid DOT 3 Only Maintain level require; Between fill lines. See change “7.CONTROL”...
  • Page 62 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Lubrication Recommendations Item Lube Rec Method Frequency  6. Front/Rear Grease Locate fitting on pivot shaft Every 3 months or A-arm pivot and grease with grease gun 50 hours Shaft  7.Steering Grease...
  • Page 63 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE NOTE: 1. More often under severe use, such as wet or dusty conditions . 2. Grease: Light weight lithium-soap grease. 3. Grease M：molybdenum disulfide(MoS ) grease(water resistant). 4. *When suspension action becomes stiff or after washing.
  • Page 64 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Periodic Maintenance Record Use the following chart to record periodic maintenance work： Maintenance Servicing Servicing Remarks Interval Date Dealer or Performed Person First 5 Hrs 10 Hrs 15 Hrs 20 Hrs 25 Hrs...
  • Page 65 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE WARNING Improper adjustment of the handlebars or incorrect torquing of the adjuster block tightening bolts can cause limited steering or loosening of the handlebars, resulting in loss of control and possible serious personal injury or death.
  • Page 66 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE The following items should be checked occasionally for tightness; or if they have been loosened for maintenance service. Wheel Nut Torque Specifications Bolt Size Specification Front M12X1.25 70Ft.Lbs 95N.m Rear M12X1.25 70Ft.Lbs 95N.m NOTE: All nuts that have a cotter pin installed must be serviced by an authorized Dealer.
  • Page 67 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Air Filter Service 1. Remove front faceplate. 2. Release 3 bolt and remove cover. 3. Loosen clamp and remove filter. 4. Remove pre-filter from the element core. wash pre-filter in non- volatile solvent. Squeeze out the solvent thoroughly, and allow the pre-filter to dry.
  • Page 68 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Steering Inspection The steering assembly of the machine should be checked periodically for loose nuts and bolts. If loose nuts and bolts are found, have your dealer tighten them before riding your vehicle.
  • Page 69 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Front And Rear Brake WARNING Once a bottle of brake fluid is opened, use what is necessary and discard the rest. Do not store or use a partial bottle of brake fluid. Brake fluid is hygroscopic, meaning it rapidly absorbs moisture from the air.
  • Page 70 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Auxiliary Brake Auxiliary Brake Systems Your ATV’s auxiliary brake system is intended to be used as a backup for the main brake system. Should the main system fail, the auxiliary brake can be activated by the brake lever on the left handlebar being moving toward the handlebar.
  • Page 71 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Adjusting the mechanical parking brake To adjust (set up) the mechanical parking brake, use the following procedure Note: The adjusting on the caliper is for the wear out of the pads. 1. With the engine off, loosen the adjustor（1） on the lever.
  • Page 72 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Adjusting brake pedal If the push rod joint is reinstalled,adjust the push rod length so that the distance between the centers of the master cylinder lower mounting bolt hole and joint pin hole is 83±1mm.After adjustment,tighten the joint nut.
  • Page 73 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Carburetor/ Engine Idle RPM Adjustment If the engine idle speed is not satisfactory, and all other conditions are favorable, the carburetor can be adjusted as follows: 1. Warm up the engine by running the vehicle approximately five minutes.
  • Page 74 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Spark Plugs Inspect:  Insulator ① Abnormal color: Replace. Normal color is a medium- To-light tan color.  Electrode ② Wear/damage: Replace. Clean:  Spark plug (with spark plug cleaner or wire brush)
  • Page 75 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Oil and Filter Change The recommended oil change interval is 30 hours, or every 3 mouths, whichever comes first. Suggested break in oil change is at 20 hours, or one mouth, whichever comes first. Severe use operation requires more frequent service.
  • Page 76 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Rear Gearcase Lubrication Which the ATV on the a level surface, remove fill plug and visually inspect the lubricant level through the fill hole(1).Lubricant should be kept even with the center of the drill point approximately below the top of the fill hole.
  • Page 77 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE WARNING Operating your ATV with worn tires, improperly inflated tires, non-standard tires or improperly installed tire will affect vehicle handling which could cause an accident resulting in serious injury or death. Follow the safeguards listed below to prevent this type of situation.
  • Page 78 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Wheel Installation 1. With the transmission in gear and the parking brake locked, place th wheel in the correct position on the wheel hub. Be sure the valve stem is toward the outside and totation arrows on the tire point toward forward rotation.
  • Page 79 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Headlight Lamp Replacement WARNING Keep your headlights and taillights clean. Poor light while riding can result in an accident causing severe injury or death. CAUTION Do not service while headlight is hot. Serious burns may result.
  • Page 80 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE 1. For M750L T3 use bulb 12V 55W/55W. 2. Pull the cable plug off the conducting strip in the socket. 3. Turning the headlight rear cover ① counterclockwise is to open the cover.
  • Page 81 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE The High beam headlight can be adjusted up and down. 1. Place the vehicle on a level surface with the headlight approximately 10’’(3m) from a wall. 2. Measure the distance from the floor...
  • Page 82 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Your ATV can be waxed with any non-abrasive automotive paste wax. Avoid the use of harsh cleaners since they can scratch the body finish. CAUTION Certain products, including insect repellants and chemicals, will damage plastic surfaces.
  • Page 83 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 16. MAINTENANCE Transporting Whenever the ATV is to be transported the following measures should be taken. 1. Turn off the engine and remove the key. 2. Turn the fuel valve to off. 3. Be certain the fuel cap, oil cap, and seat are installed correctly.

  • Page 84: Troubleshooting

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 17. TROUBLESHOOTING Issues of Improper Operation Driven Clutch (CVT) Burning Possible Causes Solutions Loading the ATV into a Shift transmission to Low Range during pickup or tall trailer when in loading of the ATV to prevent belt burning high range.
  • Page 85 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 17. TROUBLESHOOTING Battery Wane Possible Cause Solutions Starting a faulty engine for See”8.STARTING THE ENGINE” long time And check the fuel/ air/ ignition/ compression system Let the main switch (key) When stopping the engine, turn off...
  • Page 86 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 17. TROUBLESHOOTING NOTE: The following trouble shooting does not cover all the possible causes of trouble. It should be helpful, however, as a guide to troubleshooting. Refer to the relative procedure in this manual for inspection, adjustment and replacement of parts.
  • Page 87 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 17. TROUBLESHOOTING Spark plug Switch Improper plug gap Faulty main switch Worn electrodes Faulty “ENGINE STOP” Wire between terminals broken switch Improper heat range Faulty brake switch Faulty spark plug cap Wiring Loose battery terminal Ignition coil Broken or shorted primary/...
  • Page 88 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 17. TROUBLESHOOTING Faulty igniter unit Cylinder head gasket broken Faulty pick up coil Cylinder gasket broken Carbon deposit buildup Fuel system Clogged fuel tank breather hole Improper adjusted valve Clogged air cleaner element clearance fuel filter clogging Improper contacted...
  • Page 89 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 17. TROUBLESHOOTING Engine oil Incorrect engine oil level Improper engine oil quality (High viscosity) Low engine oil quality Brakes Dragging brake Cooling system Inoperative fan motor Faulty thermostat Faulty thermo switch Incorrect coolant level (low coolant level) Faulty radiator (Clogged, damage)
  • Page 90 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 17. TROUBLESHOOTING POORSTARTING FAULTY BRAKE PERFORMANCE POOR BRAKING EFFECT Worn front hub bearing V-belt Slipping/oily V-belt Worn brake pad Worn brake disc Primary sliding sheave Improper operation Air in brake fluid Damage Leaking brake fluid compressing spring Worm/loose...

  • Page 91: Tools

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 18. TOOL 18-1...

  • Page 92: Specification

    M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 19. SPECIFICATION M750L T3 Capacities Model M750L T3 Fuel capacity 4.2 U.S.Gal Engine Oil Capacity 0.79 U.S.Gal Ground Clearance 260mm 10.2 inch Height 1423mm 56 inch Length 2425mm 95.5nch Width 1185mm 46.6 inch Seat height 900mm 35.4 inch...
  • Page 93 M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0 19. SPECIFICATION Service Brake Front Brake Hydraulic Disc Rear Brake Parking Brake All Wheel Hydraulic Lock Auxiliary Brake Rear Brake Hydraulic Disc Engine Engine Type Single Cylinder ,4Stroke, SOHC,4 Valve Bore x Stroke 102mmX85mm Displacement 694.6cc...
