Check compatibility of vehicle and accessories

Requirements
Vehicle
Navigation
Limitations
Software version
Note: Prerequisite for the faultless functioning of the interface is at least minimum software
version 42.40. The vehicle has to be updated before or after installation if the software
version is lower. You can check the software version of the vehicle as follows:
• Switch on ignition
• Choose radio
• Press „SETUP" button and hold it
• Press „RETURN" button in addition to „SETUP" button and hold it until the monitor shows
„Current Config"
• Choose „Interfacebox", you can see the software version as „SW-Index"
1.1.

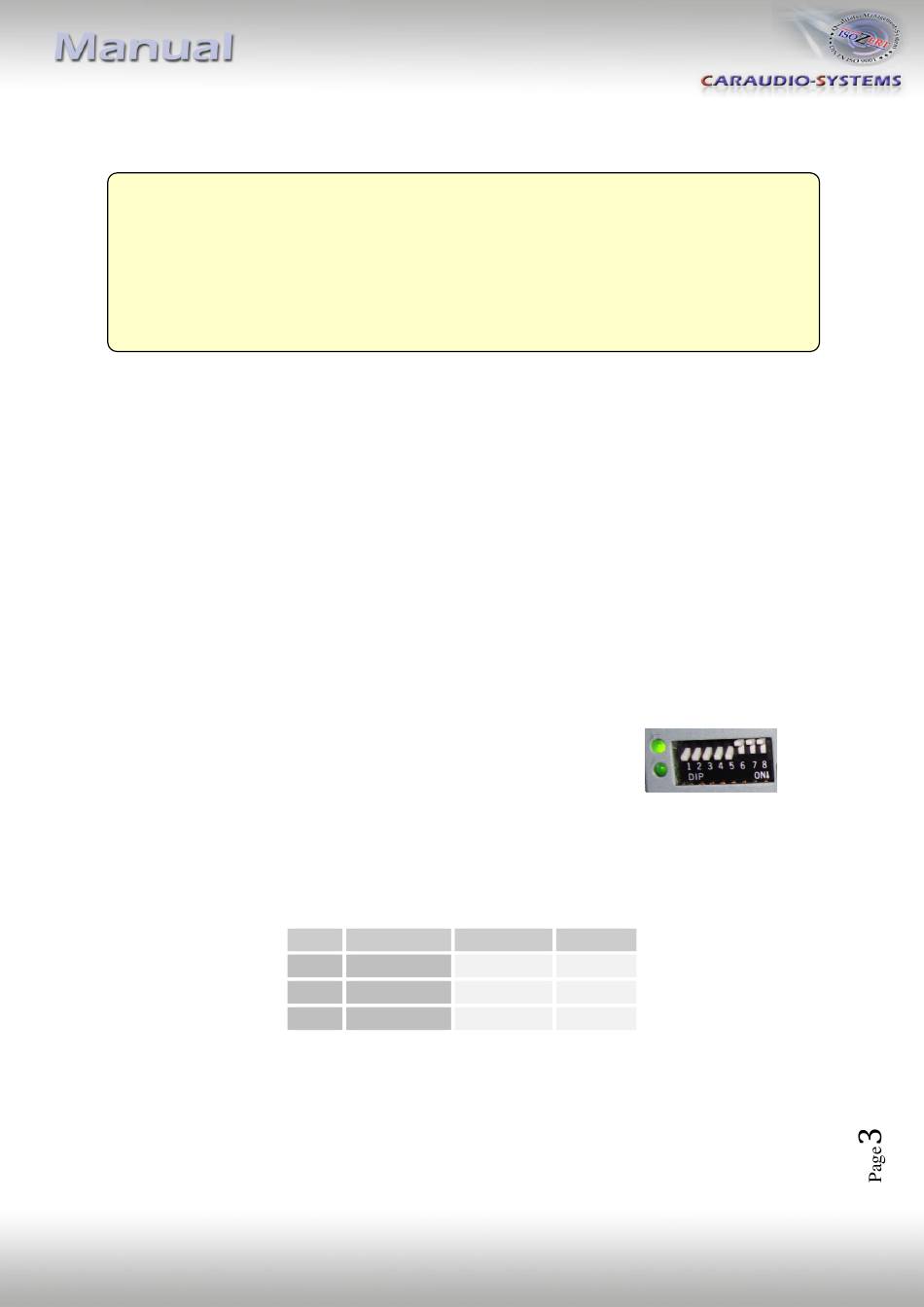

Dip-switch settings

With the video interface boxes dip-switches it is possible to dis- or enable the interfaces
inputs (dip 1 to 3) and to preselect the type of camera which is (to be) installed (dip 5).
Dip position down is ON and position up is OFF.

1.1.1. Enabling the interface's video inputs (dip 1-3)

Only the enabled video inputs can be accessed when switching through the video sources. It
is recommended to enable only the required inputs. The disabled video inputs are left out
when switching.
Version 19.10.2012
A4 (B8/8K from early 2008), A5 (8T), A6 (4F), A8 (4D/4E), Q7 (4L)
Audi MMI 2. generation
Only possible for MMI 2G with minimum software version 42.40.
Dip Video-input ON (down) OFF (up)
Dip 1 RGB
Dip 2 Video IN1
Dip 3 Video IN2
enabled disabled
enabled disabled
enabled disabled
C2-MMi2G-x
