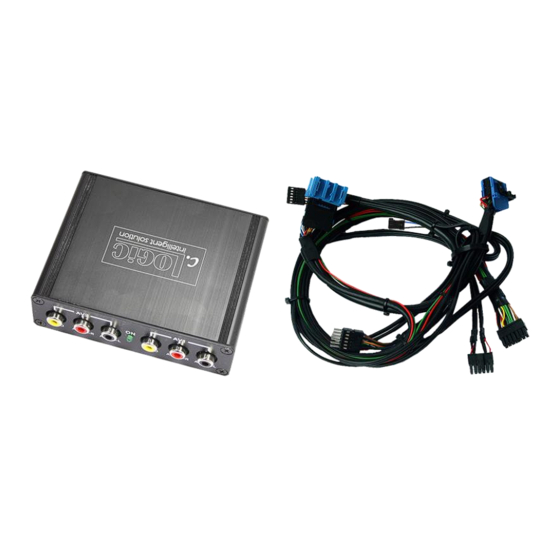

c.LOGiC Interface
C2-MK-CD
for BMW Professional navigation systems
without iDrive (MK2-MK4)
Product features
• Full plug and play multimedia interface
• 2 AV-inputs with separate IR-control channels
• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, ...
• after-market rear-view camera input (optional adapter is necessary)
• automatic switching to after-market rear-view camera input
• rear-view camera power (+12V max. 1A)
• rear-seat-entertainment video output
• power-on remote-out trigger-signal (+12V max. 1A) to switch on connected devices
• video-in-motion
Version 10.05.2012
C2-MK-CD
Advertisement
Table of Contents
Related Manuals for Caraudio-Systems C2-MK-CD
Summary of Contents for Caraudio-Systems C2-MK-CD
- Page 1 Interface C2-MK-CD for BMW Professional navigation systems without iDrive (MK2-MK4) Product features • Full plug and play multimedia interface • 2 AV-inputs with separate IR-control channels • control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, … • after-market rear-view camera input (optional adapter is necessary) •...
-
Page 2: Table Of Contents
Selecting the c.LOGiC as current AV-source 4.3. Switching to c.LOGiC and factory CD-changer 4.4. Switching to AV1 and AV2 4.5. Picture settings 4.6. Button assignment table 5. Specifications 6. Technical support Appendix A – Device control table Version 10.05.2012 C2-MK-CD... -
Page 3: Prior To Installation
Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. Harness C3C-BMW701 Interface-box C2C-M700 HW_____ SW_____ If remote function for a peripheral device shall be used, additional an IR- Remote cable and Y-adapter are needed, see chapter AV-source(s) . Version 10.05.2012 C2-MK-CD... -
Page 4: Check Compatibility Of Vehicle And Accessories
Navigation system Professional without iDrive (MK2-MK4) Navigation system Professional MK3 in Land Rover Limitations Factory DSP amplifier With an existing factory DSP amplifier see chapter 3.3.1. before beginning the installation! After-market rear-view BMW vehicles compatible with NTSC-cameras only. camera Version 10.05.2012 C2-MK-CD... -
Page 5: Connection Schema
2. Connection schema Version 10.05.2012 C2-MK-CD... -
Page 6: Installation
5series (E39) and 7series (E38) on the left hand side the radio module of the 7series is located behind lining in the car wing). The X5 (E53) radio module is located underneath the boot lining, next to the battery. The navigation computer is located on the left hand side behind the boot lining. Version 10.05.2012 C2-MK-CD... -
Page 7: Interconnecting Interface-Box And Harnesses
Plug blue female 18pin AMP connector of harness C3C-BMW701 into blue male 18pin AMP connector of navigation computer. Note: If there is a factory TV-tuner inside the car, you have to connect the harness C3C-BMW701 to the TV-tuner and not to the navigation computer! Version 10.05.2012 C2-MK-CD... -
Page 8: Connections To Radio Module
CD-changer is installed, it is possible to check whether the factory DSP amplifier has a digital connector (SMB). If so, it is only possible to check whether the system is coded to analogue or digital by try-and-error. Version 10.05.2012 C2-MK-CD... -
Page 9: Radio Module With Quadlock Connector With Factory Cd-Changer
3.3.3. Radio module with Quadlock connector WITHOUT factory CD-changer Installation is analogue to system with factory CD-changer. Only there is no female 12pin connector on the vehicle harness. The male 12pin connector of harness C3C-BMW701 is not used and should be isolated. Version 10.05.2012 C2-MK-CD... -
Page 10: Radio Module With Round-Pin Connector With Factory Cd-Changer
Connect female round-pin connector to radio module. Connect the shortened female10pin connector of harness C3C-BMW701 to the CD-changer port of the radio module while making sure that the correct pins are used. Fasten the female 10pin connector in the round-pin connector to avoid later disengagement. Version 10.05.2012 C2-MK-CD... -
Page 11: Connecting Peripheral Devices
The c.LOGiC interface has the possibility to connect and remotely control by navigation buttons up to 2 pre-programmed devices. The device list in the device control table shows the pre-programmed remote channels and the related IR-remote cables STA-xxx which must be ordered separately for the control of the device. Version 10.05.2012 C2-MK-CD... -
Page 12: Installing Av-Source's Ir-Sensor Additionally
R-CAM IN of interface-box C2C-M700. Connect the green wire of C3C-BMW701 to the camera power supply (+12V max. 1A) The green wire is high (+12V) when reverse gear is engaged. Note: BMW vehicles compatible with NTSC cameras only. Version 10.05.2012 C2-MK-CD... -
Page 13: After-Market Rear-Seat-Entertainment
Press 3x the “MENU“ key to access the “VI SETTINGS“ menu of the c.LOGiC. Use the right knob to make changes within the “VI SETTINGS“ menu. Press 1x the “MENU“ key to exit the “VI SETTINGS“ menu. Version 10.05.2012 C2-MK-CD... -
Page 14: Audio Settings
10 km/h. To leave the camera video press the right knob. 4. Operation 4.1. Activation of the video-in-motion function The video-in-motion function is permanently active without disturbing the navigation performance. Version 10.05.2012 C2-MK-CD... -
Page 15: Selecting The C.logic As Current Av-Source
"1 <> 4" , "2 <> 5" , "3 <> 6" can be used for picture settings. (each with short keypress). You can deactivate the picture setting mode Contrast in the “VI SETTINGS“ or by turning off ignition. Colour saturation Brightness Version 10.05.2012 C2-MK-CD... -
Page 16: Button Assignment Table
The function description equals the remote control buttons of the device’s remote control. On the additional device the writing may vary (e.g. AV instead of Source). Version 10.05.2012 C2-MK-CD... - Page 17 Button assignment table c.LOGiC C2-MK-CD Navigation DVB-T tuners usbLiNK DVD-player DVD- iPod®-control Analog-tuner button changer SOURCE Display 1 long Selection TV/ Selection Selection TV/ Selection TV/ Selection TV/ Selection TV/ image format image format image image format image format image...
-
Page 18: Specifications
Temperature range -30°C to +80°C Weight 202g Measurements (box only) B x H x T 90 x 30 x 105 mm 6. Technical Support Caraudio-Systems Vertriebs GmbH NavLinkz GmbH manufacturer/distribution corporate sales/tech dealer-support Rheinhorststr. 22 Eurotec-Ring 45 D-67071 Ludwigshafen am Rhein...
