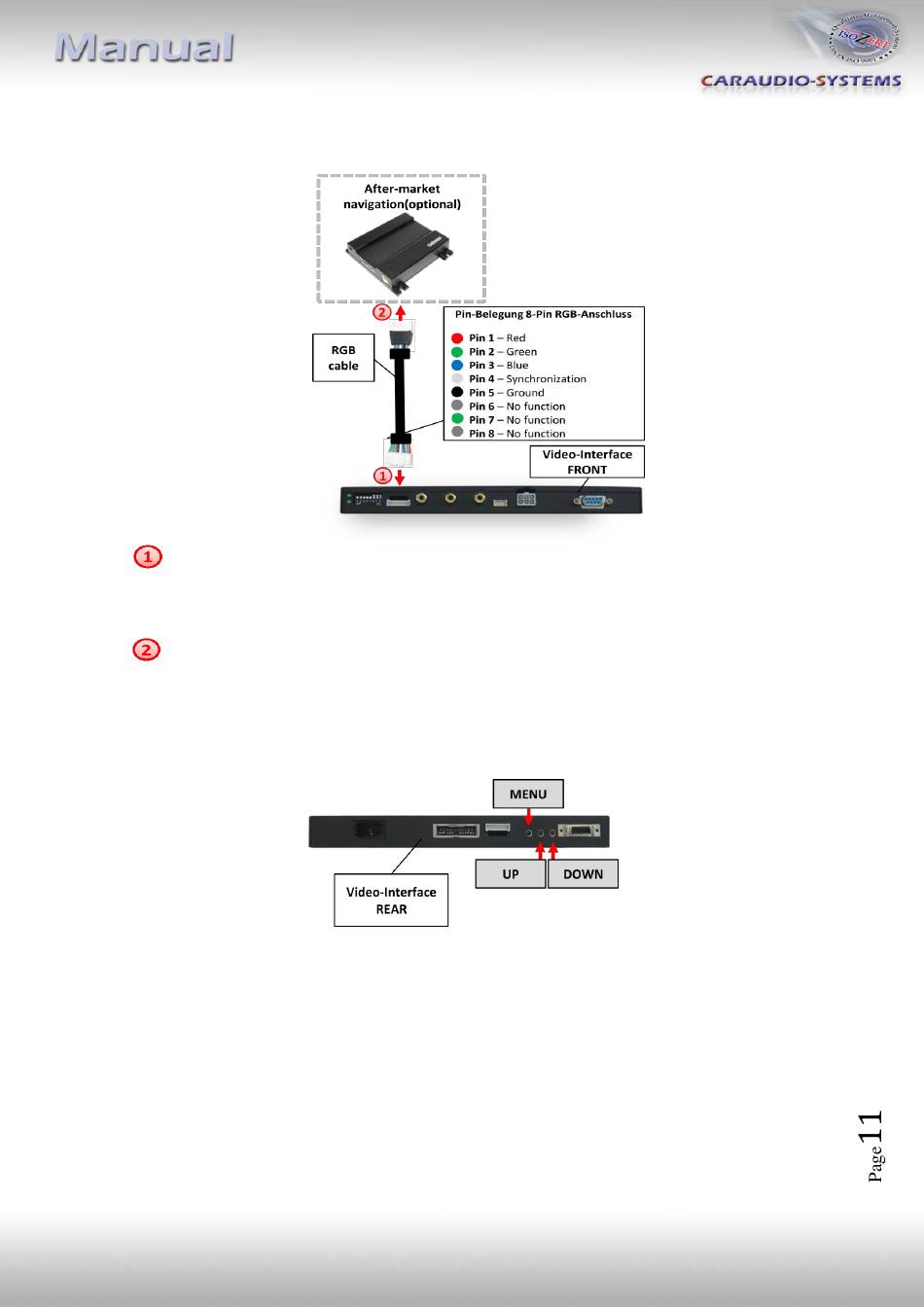

3.4.4. After-market navigation

Connect female 8pin connector of the RGB cable to the male 8pin connector of the

video-interface. The loose grey and the loose green wire have no function and have

to be isolated.

Connect male 6pin connector of the RGB cable to the after-Market navigation. The

loose blue wire has no function and has to be isolated.

3.5.

After installing the sources the picture settings can be changed using a pen on the buttons of

the video interface. Press the MENU button to open settings menu on the OSD and to switch

to the next setting. UP and DOWN change the corresponding values. The buttons are

embedded in the housing to avoid accidental changes during or after installation.

Version 19.10.2012

C2-MMi2G-x
