TV-Free
Video-in-motion Interface
CI-TF-NTG5
Compatible with Mercedes Benz
Comand Online NTG5 / NTG5.1
navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 10.03.2020
CI-TF-NTG5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Caraudio-Systems CI-TF-NTG5
Summary of Contents for Caraudio-Systems CI-TF-NTG5
- Page 1 TV-Free Video-in-motion Interface CI-TF-NTG5 Compatible with Mercedes Benz Comand Online NTG5 / NTG5.1 navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.

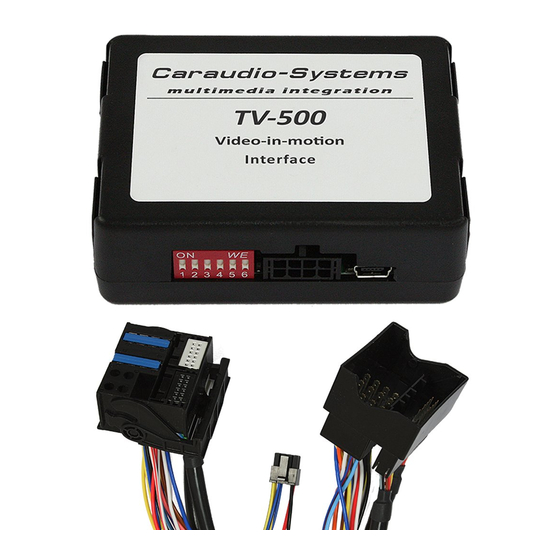

- Page 2 1.1. Delivery contents Take down the SW-version and HW-version of the interface-boxes, and store this manual for support purposes! CAN-box TV-500 Harness HW_____ SW_____ TV-MBN5 Version 10.03.2020 CI-TF-NTG5...
- Page 3 +12Volt Permanent 15 ● Brown Ground Pin 12 ●● Yellow/White ; ●● Brown/Red ; CAN HIGH Chamber B -Pin 9 ●● Purple/White ● Yellow ; ● Brown ; CAN LOW Chamber B - Pin 3 ● Purple Version 10.03.2020 CI-TF-NTG5...
- Page 4 The vehicle is very responsive to disconnected vehicle parts while battery is connected. Therefore the error memory of the vehicle must be deleted after installation. Note: Any existing fiber optical cables on the original Quadlock plug must be reconnected to the TV-MBN5 harness. Version 10.03.2020 CI-TF-NTG5...
- Page 5 Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm 5. Technical support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
