2.1 Connections

There are four steps to connecting the Prototyping Board for use with Dynamic C and the
sample programs:
1. Attach the RCM2200 module to the Prototyping Board.
2. Connect the programming cable between the RCM2200 module and the workstation PC.
3. Connect the power supply to the Prototyping Board.

2.1.1 Attach Module to Prototyping Board

Turn the RCM2200 module so that the Ethernet connector end of the module extends off
the Prototyping Board, as shown in Figure 1 below. Align the pins from headers J4 and J5
on the bottom side of the RCM2200 with header sockets J1 and J2 on the Prototyping
Board.
JP3
JP4
R41
R39
R38
C27
C3
R11
R13

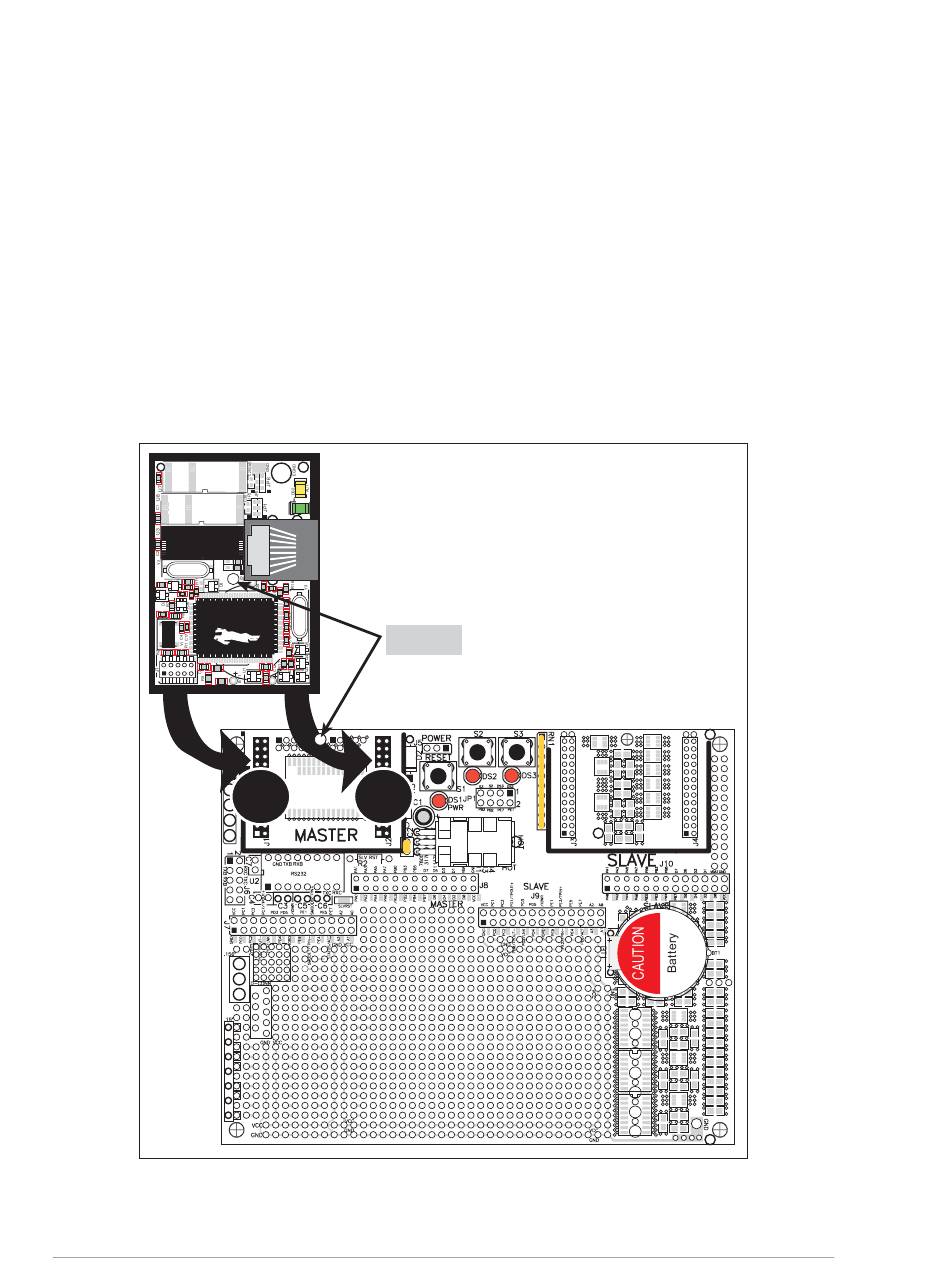

Figure 1. Installing the RCM2200 on the Prototyping Board
6
RCM2200
LNK
DS1
C25
Line up the
mounting holes
J1 J2
Prototyping
Board
RabbitCore RCM2200
