B.1 Prototyping Board
The Prototyping Board included in the Development Kit makes it easy to connect an
RCM2200 module to a power supply and a PC workstation for development. It also pro-
vides some basic I/O peripherals (switches and LEDs), as well as a prototyping area for
more advanced hardware development.
For the most basic level of evaluation and development, the Prototyping Board can be
used without modification.
As you progress to more sophisticated experimentation and hardware development, modi-
fications and additions can be made to the board without modifying or damaging the
RCM2200 module itself.

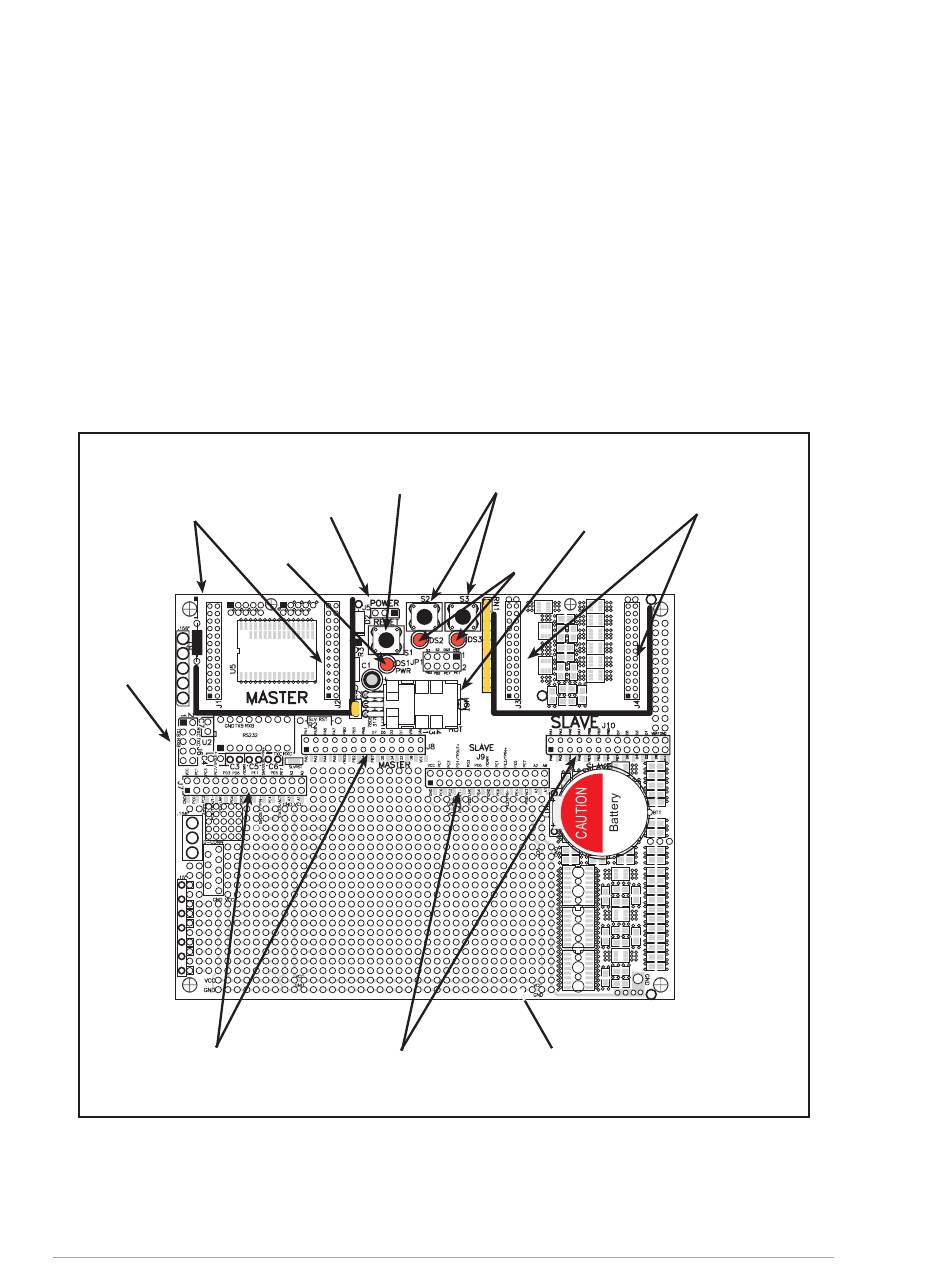

The Prototyping Board is shown below in Figure B-1, with its main features identified.
RCM2200/RCM2300
Reset User
RCM2200/RCM2300
Power Slave Module
Switch Switches
Master Module
Voltage
Input Connectors
Connectors
Regulator
Power
User
LED
LEDs
RS-232
Signal
Header
Battery
Through-Hole
SMT Prototyping
Prototyping Area
Area
Vcc and GND
Master Module Slave Module
Buses
Extension Headers Extension Headers
Figure B-1. RCM2200/RCM2300 Prototyping Board
62 RabbitCore RCM2200
