A.1.1 Headers
The RCM2200 uses headers at J4 and J5 for physical connection to other boards. J4 and J5
are 2 × 13 SMT headers with a 2 mm pin spacing. J1, the programming port, is a 2 × 5
header with a 2 mm pin spacing.
Figure A-3 shows the layout of another board for the RCM2200 to be plugged into. These
values are relative to the header connectors.
A.1.2 Physical Mounting
A 9/32" (7 mm) standoff with a 4-40 screw is recommended to attach the RCM2200 to a
user board at the hole position shown in Figure A-3. Either use plastic hardware, or use
insulating washers to keep any metal hardware from shorting out signals on the RCM2200.
J1
0.079
(2.0)
User's Manual
J4
0.935
(23.7)
0.130 dia
(3.3)
0.960
(24.4)
0.020 sq typ
(0.5)
J5
0.079
(2.0)

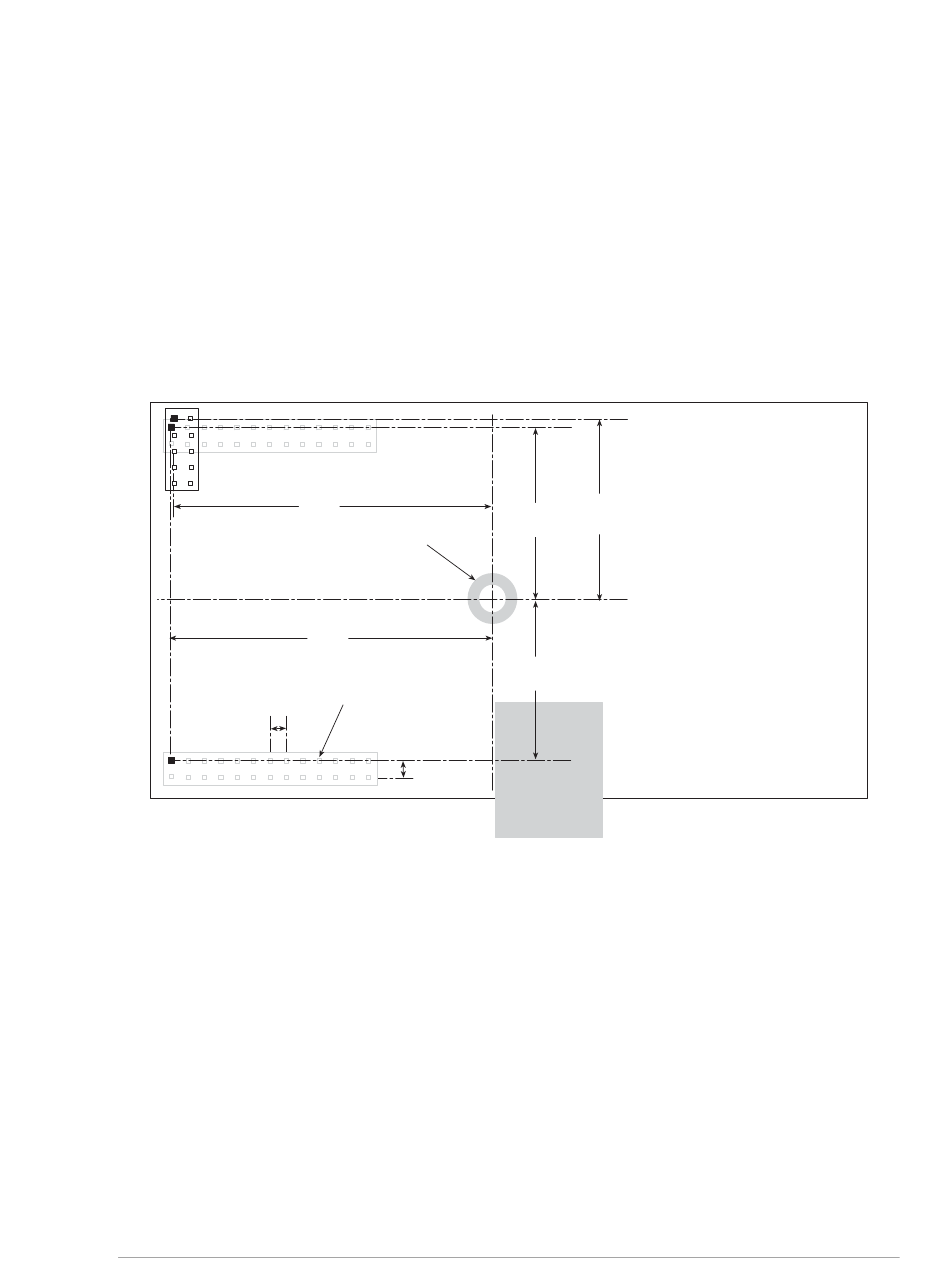

Figure A-3. User Board Footprint for RCM2200
0.715
0.646
(18.2)
(16.4)
0.604
(15.3)
RCM2200 Footprint
53
