2.2 Hardware Connections

2.2.1 Attach Module to Prototyping Board

Turn the RCM3400 module so that the Rabbit 3000 chip is facing up and the Rabbit logo is
facing the direction shown in Figure 2 below. Align the pins from headers J1 and J2 on the
bottom side of the module into header sockets RCM1JA and RCM1JB on the Prototyping
Board. The shaded corner notch at the top left corner of the RCM3400 module should face the
same direction as the corresponding notch below it on the Prototyping Board.

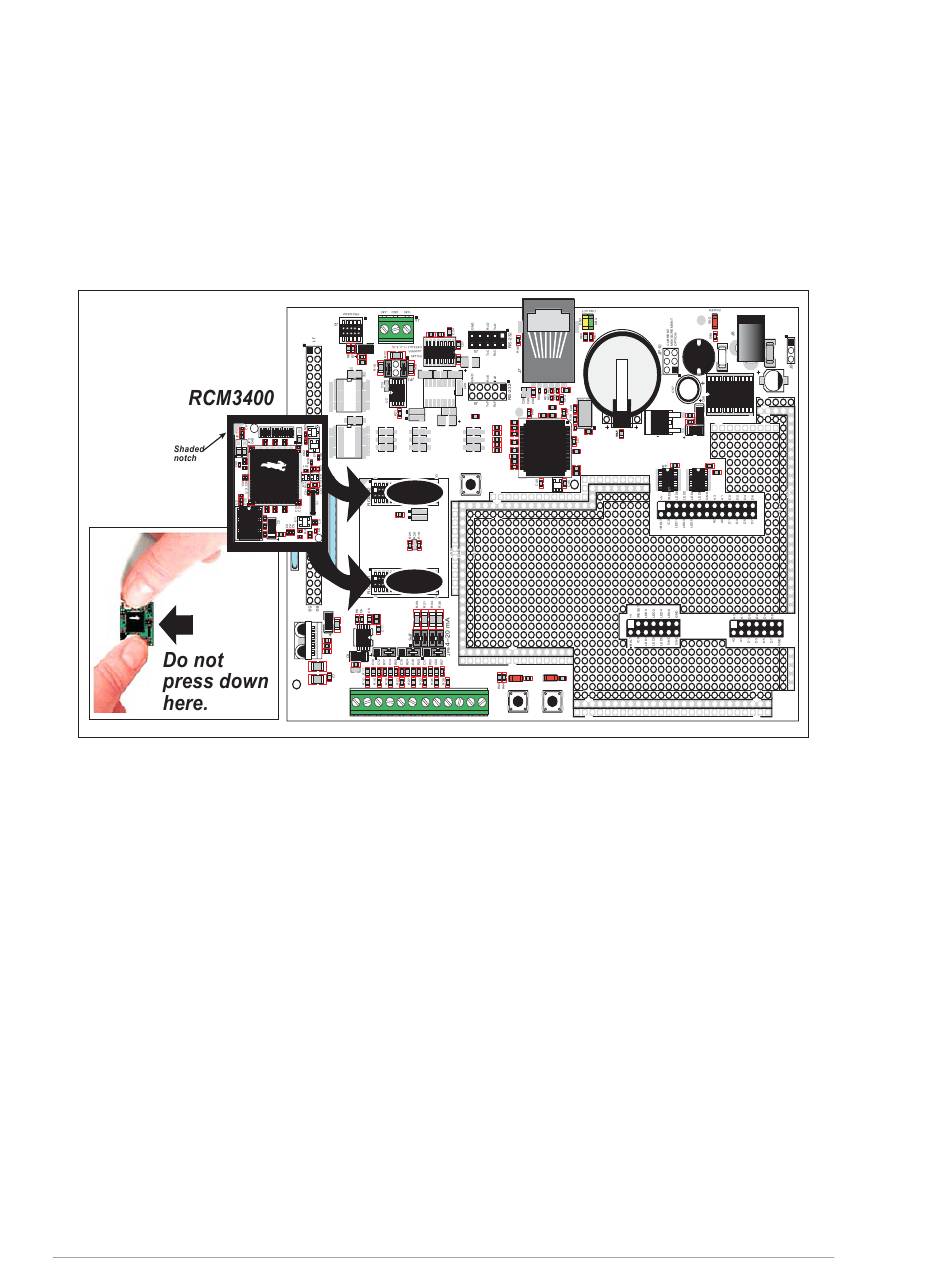

Figure 2. Install the RCM3400 Module on the Prototyping Board
NOTE: It is important that you line up the pins on headers J1 and J2 of the RCM3400
module exactly with the corresponding pins of header sockets RCM1JA and RCM1JB
on the Prototyping Board. The header pins may become bent or damaged if the pin
alignment is offset, and the module will not work. Permanent electrical damage to the
module may also result if a misaligned module is powered up.
Press the module's pins firmly into the Prototyping Board header sockets—press down in the
area above the header pins using your thumbs or fingers over the connectors as shown in
Figure 2. Do not press down on the middle of the RCM3400 module to avoid flexing the mod-
ule, which could damage the module or the components on the module.
Should you need to remove the RCM3400 module, grasp it with your fingers along the top and
bottom by the connectors and gently work the module up to pull the pins away from the sock-
ets where they are installed. Do not remove the module by grasping it at the sides.
