It is recommended that you allow for an "exclusion zone" of 0.04" (1 mm) around the
RCM2200 in all directions when the RCM2200 is incorporated into an assembly that
includes other printed circuit boards. An "exclusion zone" of 0.16" (4 mm) is recom-
mended below the RCM2200 when the RCM2200 is plugged into another assembly using
the shortest connectors for headers J4 and J5. Figure A-2 shows this "exclusion zone."
2.38
(60.4)
2.300
(58.4)
1.68
(42.6)
Exclusion
Zone
J5
J4
1.600
(40.6)

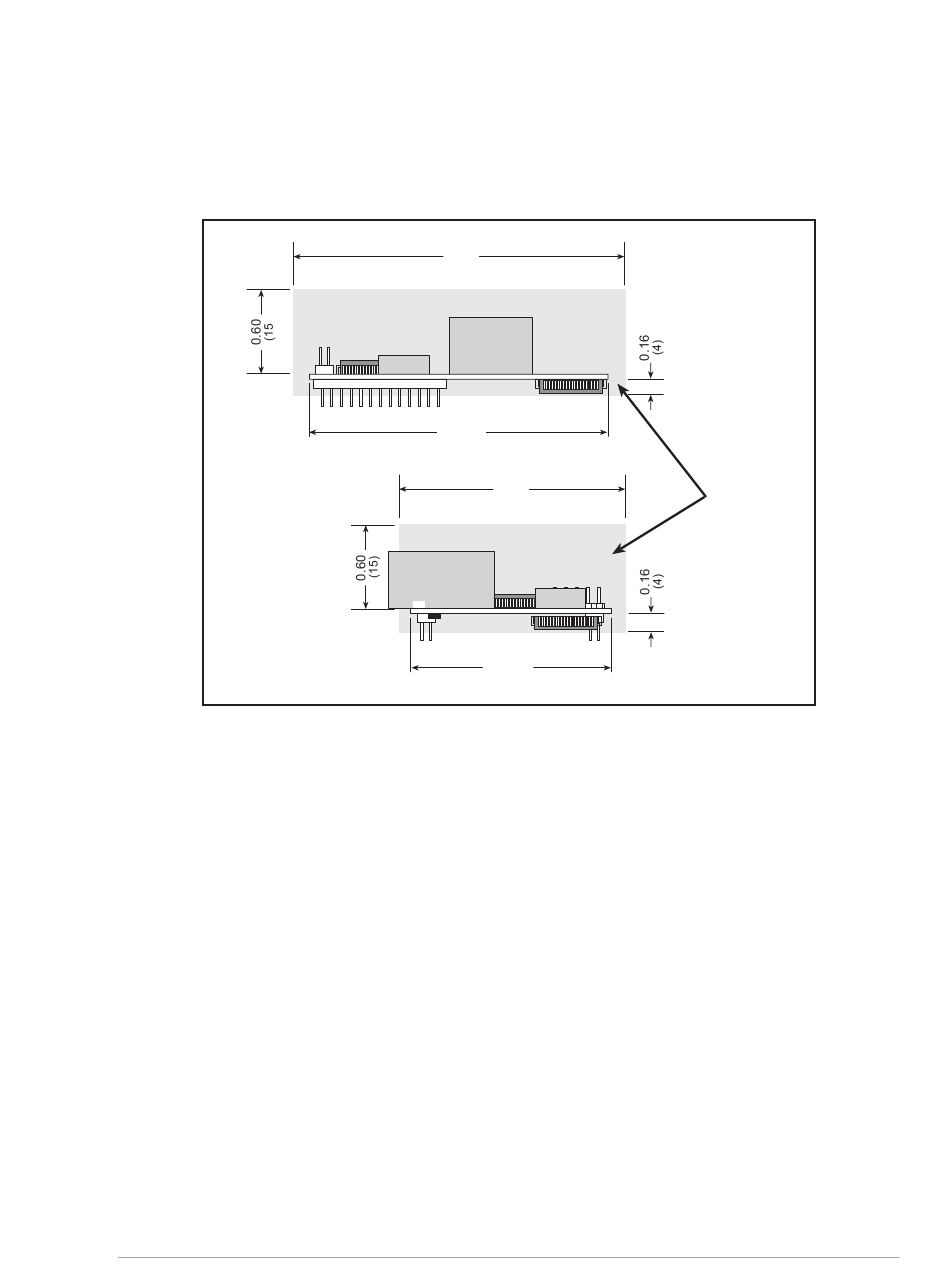

Figure A-2. RCM2200 "Exclusion Zone"
User's Manual
51
