3.5.3 The Output Menu (cont.)
3.5.4

Example for Calculating Output Current

Assume Output 1 is scaled as above for mass flow with 4 mA = 0 lb/hr and 20 mA = 100 lb/hr. Output 1 current = ((Flow
rate / 100) x 16 mA) + 4 mA.
PanaFlow™ MV80, MV82 & MV84 User's Manual

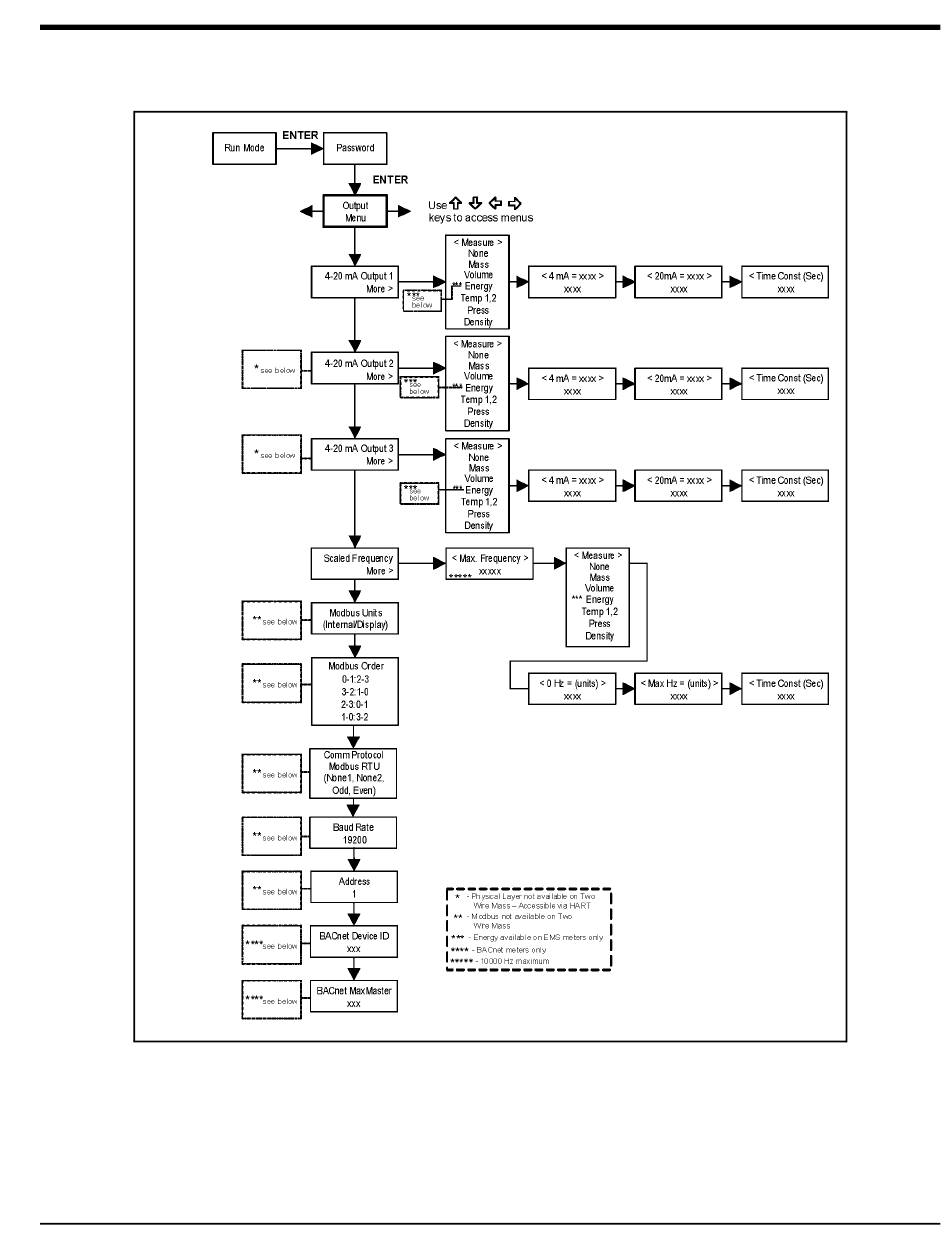

Figure 98: Output Menu Map
Chapter 3. Operating Instructions
79
