2.7.12 Data Logging

VRTX/TCP meter has internal logging capability. The data is logged to micro SD card inside unit. The capacity of SD
card may vary from 4 to 32 GB. The size of card and free space are shown on StartUp Log page. Card is formatted as
FAT32 with long file name disabled. All file names are in 8.3 format. To access the log files, click menu link "DATA LOG".
The following folders are in the Data Log Menu:
LOGS
Contains Log files
JOURNAL
Log files of unit on/off states as well as operator's actions
EXE
Folder with several executables
DOCS
Documentation
Log files are arranged as a tree:
LOGS
2016
- Year
01
- month
02
- February
PanaFlow™ MV80, MV82 & MV84 User's Manual

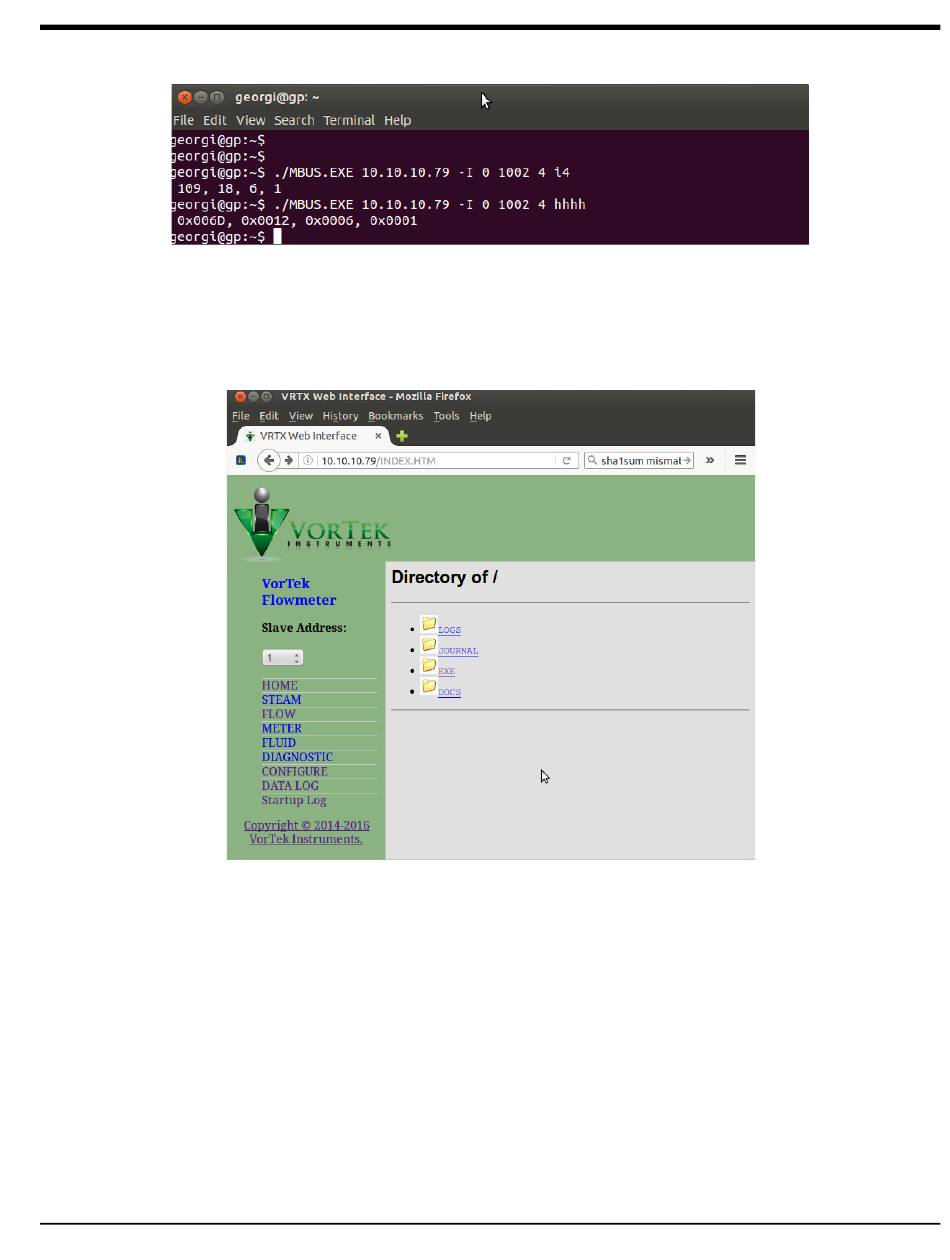

Figure 83: MBUS.exe Hex example
Figure 84: Data Log Menu
Chapter 2. Installation
65
