Takara Belmont YUME ESPOIR Installation Instructions Manual page 3

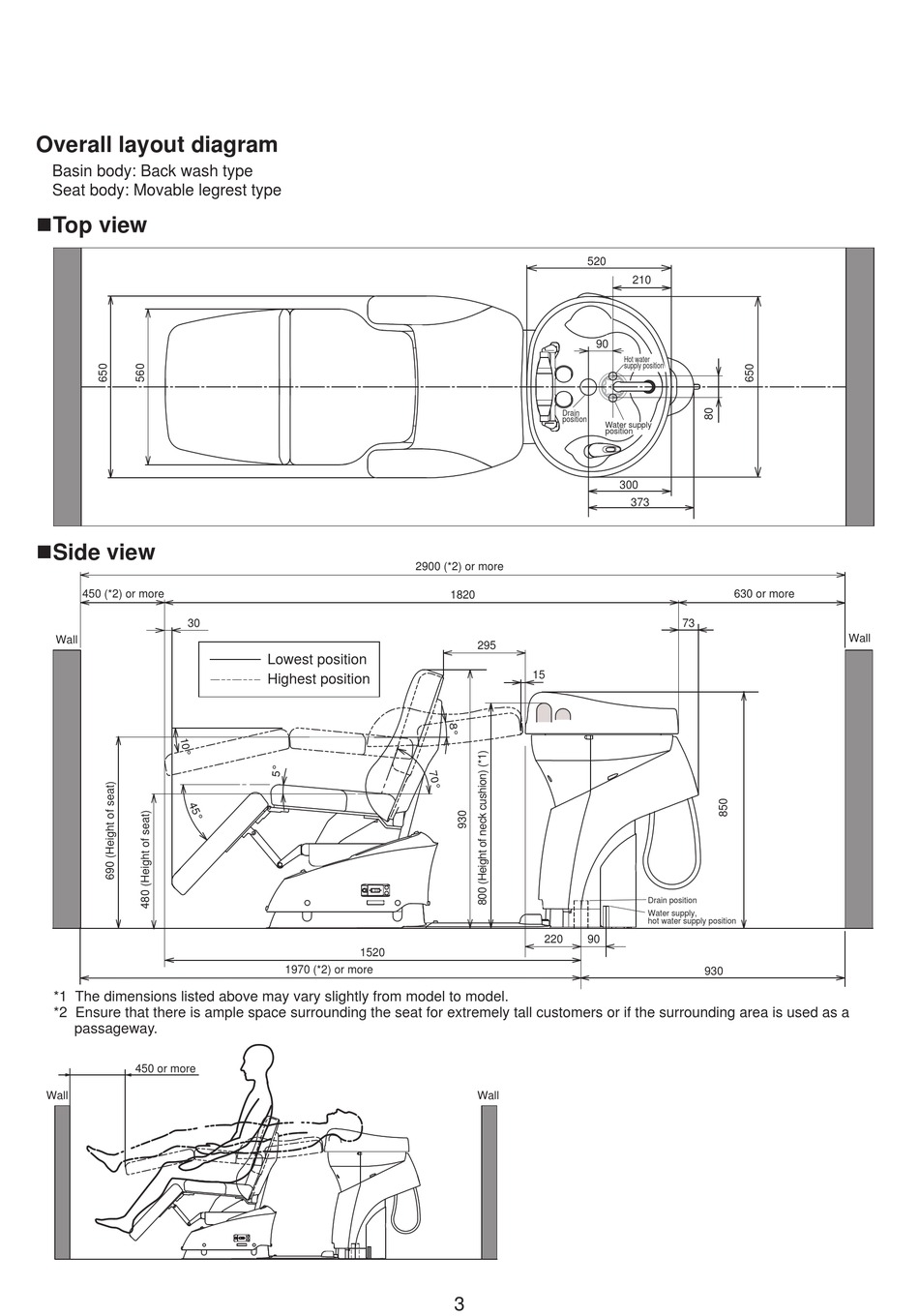

Overall layout diagram
Basin body: Back wash type
Seat body: Movable legrest type
Top view
Side view
450 (*2) or more
30
Wall
*1 The dimensions listed above may vary slightly from model to model.
*2 Ensure that there is ample space surrounding the seat for extremely tall customers or if the surrounding area is used as a
passageway.
450 or more
Wall
2900 (*2) or more
Lowest position
Highest position
1520
1970 (*2) or more
520
90
Drain
position
Water supply
position
300
1820
295
15
220 90
Wall
3
210
Hot water
supply position
373
630 or more
73
Drain position
Water supply,
hot water supply position
930
Wall
