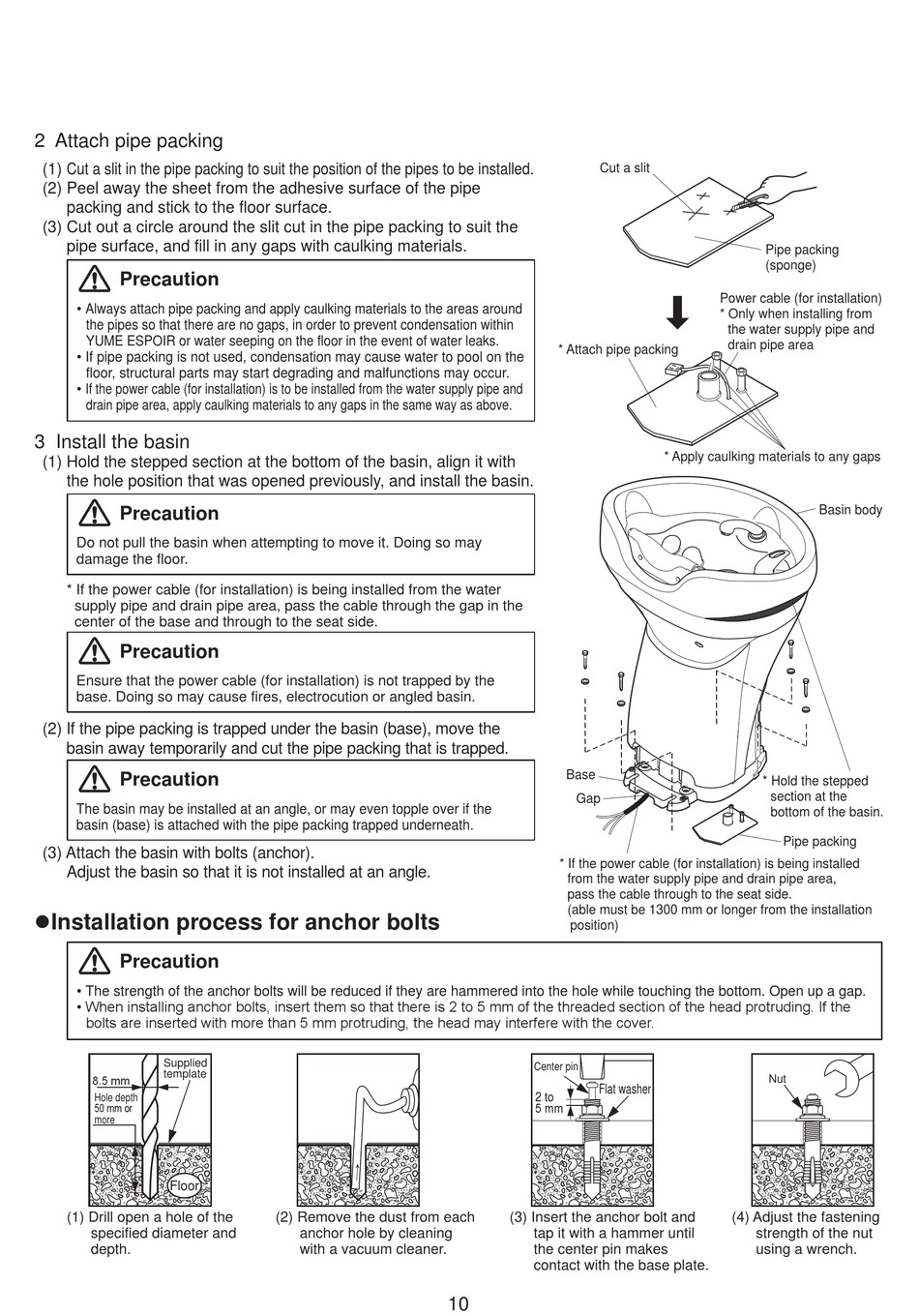

2 Attach pipe packing
(1) Cut a slit in the pipe packing to suit the position of the pipes to be installed.
(2) Peel away the sheet from the adhesive surface of the pipe
packing and stick to the floor surface.
(3) Cut out a circle around the slit cut in the pipe packing to suit the
pipe surface, and fill in any gaps with caulking materials.
Precaution
• Always attach pipe packing and apply caulking materials to the areas around
the pipes so that there are no gaps, in order to prevent condensation within
YUME ESPOIR or water seeping on the floor in the event of water leaks.
• If pipe packing is not used, condensation may cause water to pool on the
floor, structural parts may start degrading and malfunctions may occur.
• If the power cable (for installation) is to be installed from the water supply pipe and
drain pipe area, apply caulking materials to any gaps in the same way as above.
3 Install the basin
(1) Hold the stepped section at the bottom of the basin, align it with
the hole position that was opened previously, and install the basin.
Precaution
Do not pull the basin when attempting to move it. Doing so may
damage the floor.
* If the power cable (for installation) is being installed from the water
supply pipe and drain pipe area, pass the cable through the gap in the
center of the base and through to the seat side.
Precaution
Ensure that the power cable (for installation) is not trapped by the
base. Doing so may cause fires, electrocution or angled basin.
(2) If the pipe packing is trapped under the basin (base), move the
basin away temporarily and cut the pipe packing that is trapped.
Precaution
The basin may be installed at an angle, or may even topple over if the
basin (base) is attached with the pipe packing trapped underneath.
(3) Attach the basin with bolts (anchor).
Adjust the basin so that it is not installed at an angle.
Installation process for anchor bolts
Precaution
• The strength of the anchor bolts will be reduced if they are hammered into the hole while touching the bottom. Open up a gap.
• When installing anchor bolts, insert them so that there is 2 to 5 mm of the threaded section of the head protruding. If the
bolts are inserted with more than 5 mm protruding, the head may interfere with the cover.
Supplied
template
8.5 mm
Hole depth
50 mm or
more
Floor
(1) Drill open a hole of the
specified diameter and
depth.
(2) Remove the dust from each
anchor hole by cleaning
with a vacuum cleaner.
10
Cut a slit
* Attach pipe packing
* Apply caulking materials to any gaps
Base
Gap
* If the power cable (for installation) is being installed
from the water supply pipe and drain pipe area,
pass the cable through to the seat side.
(able must be 1300 mm or longer from the installation
position)
Center pin
Flat washer
2 to
5 mm
(3) Insert the anchor bolt and
tap it with a hammer until
the center pin makes
contact with the base plate.
Pipe packing
(sponge)
Power cable (for installation)
* Only when installing from
the water supply pipe and
drain pipe area
Basin body
* Hold the stepped
section at the
bottom of the basin.
Pipe packing
Nut
(4) Adjust the fastening
strength of the nut
using a wrench.
