YUME ESPOIR Installation Instructions
YUME ESPOIR
 Unit
AY-EXESYM*[For Back wash]
 Chair
AY-SCESF* [Fixed Legrest]
AY-SCESL* [Movable Legrest]
 Seat
AY-SUESB* [Basic]
AY-SUESP* [Premium]
 Base plate
EA-ESBP
 The precautions listed here are to ensure that YUME ESPOIR can be installed safely, and to prevent any danger or risk to
the person installing YUME ESPOIR or those around them. All of these precautions are important for safety. Takara
Belmont is not responsible for any damage or risk to the person installing YUME ESPOIR or those around them due to
accidents if YUME ESPOIR is installed without adhering to the precautions.
Precaution
If YUME ESPOIR is installed after ignoring this symbol, "there is the risk of light or moderate injury or physical damage".

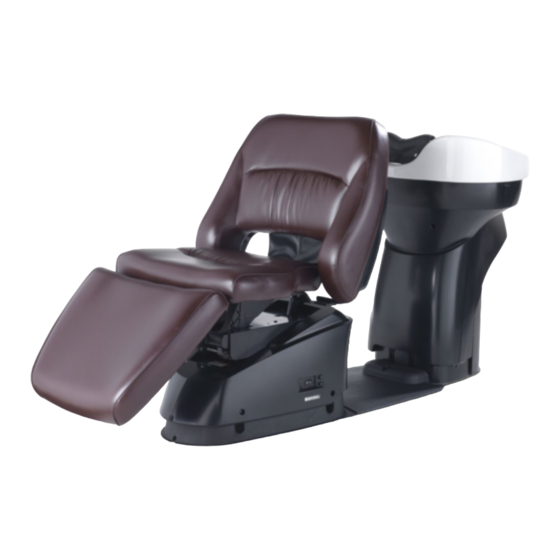

(Image is of AY-EXESYM*/AY-SCESF*/AY-SUESB*/EA-ESBP)
To the installer
• The instructions should be thoroughly read
• After installation, give these instructions to
To the customers
• Customers must not install YUME ESPOIR by
• Customers must store these instructions in a
* The actual shape of YUME ESPOIR and the
Version 4
1
Contents
and understood before installation to ensure
that YUME ESPOIR is installed correctly.
the customer.
themselves.
safe place so as not to lose them.
images and dimensions listed in these
instructions may be modified and are subject
to change without notice.
July 2021
2
7
8
12
13
13
15
17
19
19
20

21
21
23
23
25
26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YUME ESPOIR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Takara Belmont YUME ESPOIR

Summary of Contents for Takara Belmont YUME ESPOIR

  • Page 1: Table Of Contents

     The precautions listed here are to ensure that YUME ESPOIR can be installed safely, and to prevent any danger or risk to the person installing YUME ESPOIR or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk to the person installing YUME ESPOIR or those around them due to accidents if YUME ESPOIR is installed without adhering to the precautions.

  • Page 2: Before Installation

    Before installation Overall layout diagram Unit: AY-EXESYM [For Back wash] Chair: AY-SCESF [fixed legrest] Seat: AY-SUESB [Basic]  Top view 20.5 3-1/2 Hot water supply position Drain Water supply position position 13.9  Side view 116 (*2) or more 17.1 (*2) or more 74.2 24.8 or more Wall...
  • Page 3 Overall layout diagram Unit: AY-EXESYM [For Back wash] Chair: AY-SCESL [Movable legrest] Seat: AY-SUESB [Basic]  Top view 20.5 3-1/2 Hot water supply position Drain position Water supply position 13.9  Side view 114.2 (*2) or more 17.7 (*2) or more 71.7 24.8 or more Wall...
  • Page 4 Overall layout diagram Unit: AY-EXESYM* [For Back wash] Chair: AY-SCESF* [fixed legrest] Seat: AY-SUESP* [Premium]  Top view 20.5 3-1/2 Hot water supply position Drain Water supply position position 13.9  Side view 116 (*2) or more 17.1 (*2) or more 24.8 or more 74.2 Wall...
  • Page 5 Overall layout diagram Unit: AY-EXESYM* [For Back wash] Chiar: AY-SCESL* [Movable legrest] Seat: AY-SUESP* [Premium]  Top view 20.5 3-1/2 Hot water supply position Drain position Water supply position 13.9  Side view 114.2 (*2) or more 17.7 (*2) or more 71.7 24.8 or more Wall...
  • Page 6 Drainage If the floor surface is tiled, cracks may occur when fastening the bolts during installation of the YUME ESPOIR main body. If this looks likely to happen, use the main body attachment diagram and template as a reference and change the material of the attachment area that is in contact with the floor to another such as plywood or mortar.

  • Page 7: Usage Conditions

    Aeration may be minimal when using shampoo even if drinkable well water is used, so a water softener should be installed.  Use a pressure set between 14.5 to 58.0 psi. If multiple YUME ESPOIR are used, ensure that the pressure does not drop below 14.5 psi.

  • Page 8: Yume Espoir Packing

    YUME ESPOIR packing <Unit> Content of packaging Basin Air mat Protective tape Unit cover Metal plate(M) Yuria screw (tape is applied from the top.) Protective tape * The Yuria screws are taped to the metal plate(M) holding down the maintenance cover.
  • Page 9 <Chair> Content of packaging Seat back frame  Cover set · Base cover R Seat back frame Supporting column Areas that must not be used to carry the * There is no legrest chair. for the BW-ESBS. · Base cover L Legrest ·...
  • Page 10 Packaging shape and size, weight Unit 81.5 lb, Wood frame 66 lb 25.6 23.4 32.3 33.5...
  • Page 11 <Chair: Fixed legrest type> Chair 102.5 lb, Wood frame 66 lb 21.3 32.3 33.5 <Chair: Movable legrest type> Chair 105.8 lb, Wood frame 66 lb 28.3 32.3 33.5...

  • Page 12: Carrying The Unit & Chair

    Carrying the Unit & Chair Carrying the Unit 1 Unpack the wood frame. 2 Remove the Unit from the wood frame. Basin Remove the screw attaching the base and wood frame while holding the Unit. (4 points) Edge Precaution Always have at least two people to carry the Unit and hold the basin when remove the bolt.

  • Page 13: Installation Of Unit & Chair

    Installation of Unit & Chair * The Unit or Chair may not be able to be installed correctly depending on installation procedures of the main body. Always install the Unit & Chair using the following procedures. Unit & Chair installation procedure 1 Install the Unit 7 Attach the base cover After attaching the base cover,...
  • Page 14 YUME ESPOIR or water seeping on the floor in the event of water leaks. drain pipe area * Attach pipe gasket •...

  • Page 15: Piping

    Piping [Before piping installation] “Hair trap” ,“Drain hose”,“Turn valve” and “Flexible pipe” are not included. Prepare those parts that suited for the local regulation. Precaution Follow a local regulation when you attach piping. Unit cover(F) 1. Loose screws and get off Unit cover (B) (Truss head screw with prastic gasket, 4 pcs) (Pan head screw[p type], 4 pcs.) Unit cover(B)

  • Page 16: Checks After Installation Of Pipes

    8. Installing the Flexible Pipe and Joint 9. Attach Unit cover (F) with screws ( Truss head screw with prastic gasket, 4 pcs) 10. Attach Unit cover (B) with screws ( Truss head screw with prastic gasket, 4 pcs) (Pan head screw[p type], 4 pcs.) 3/8”...

  • Page 17: Install The Chair

    3 Attach the maintenance cover to the Unit Precaution Take care not to hit or trap other parts when installing the cover. Doing so may damage the parts and cause malfunctions. Unit cover (1) Insert the maintenance cover into the Unit cover. (2) Attach the cover with the screws.
  • Page 18 2 Install base plate H to the Chair (2) Fasten (1) Hold the specified section at the base of the Chair (see page 9), press against the ribbed section of base plate H and fasten with the screws. (2) Insert the supplied of spacer to suit the height specifications of the seat.

  • Page 19: Remove Pp Band

    Remove PP band  Remove the PP band from the Chair. Precaution • Always remove this PP band. Operating YUME ESPOIR with this PP band attached may cause incorrect operation or malfunctions in the Chair. PP band * When moving the Chair at a later date Precaution ＰＰバンドは機器設置後に...

  • Page 20: Attach Base Cover

    * Check that there is no damage or dirt on the cover before installing it. If there are any problems found in preliminary checks, contact your closest dealer or Takara Belmont directly. １ Remove the oil plug from the oil tank.

  • Page 21: Check Operation

    Foot switch (2) Press the foot switch and check operation of the chair. For operating procedures, see the separate "YUME ESPOIR Instruction Manual". DN (DOWN) (3) Once operation has been confirmed, check the attachment condition of the following items.

  • Page 22: Attach Backrest And Seat

    Attach backrest and seat 1 Attach backrest and seat Sticker (1) Insert the backrest into the supporting column in Seat back frame Seat back Seat back frame vertical state, align with the seat back frame and attach with screws through the attachment holes Attachment hole (middle).(M6 ×...

  • Page 23: Check Operation

    (1) Turn the main power switch on. Press the right side ( symbol) of the main power switch. (2) Press the foot switch and check operation of the Chair. For operating procedures, see the separate "YUME ESPOIR Instruction Manual". (3) Once operation has been confirmed, check the attachment condition of the following items.

  • Page 24: Checking

    Checking  Remove the air mat attached to the basin and protective tape applied to the Unit cover. Precaution Always conduct the following inspections to prevent accidents during use.  Inspection items (Unit)  Inspection items (Chair) (1) Are there any screws that have not been attached? (1) Are there any screws that have not been attached? (2) Is there any rattling? (2) Is the Chair operating correctly?
  • Page 25 Attachment Of The Hair Trap And The Drain Cap Drain cap Put the hair trap into the drain port and place the drain cap on the top Hair catcher as shown in the image. Drain...

  • Page 26: Unit & Chair Attachment Diagram

    Unit & Chair attachment diagram...

  • Page 27: Memo

    MEMO...
  • Page 28 TAKARA BELMONT CORPORATION U.S.A 101 Belmont Drive. Somerset,NJ 08873 TEL:800-526-3847 CANADA 2076 South Sheridan Way, Mississauga, ON, L5J 2M4 TEL:905-822-2755 JAPAN 1-1, 2-Chome, Higashi-shinsaibashi,Chuo-ku,Osaka,Japan TEL:(+81)6-6213-5945 1E05KTA0 Book Number...
