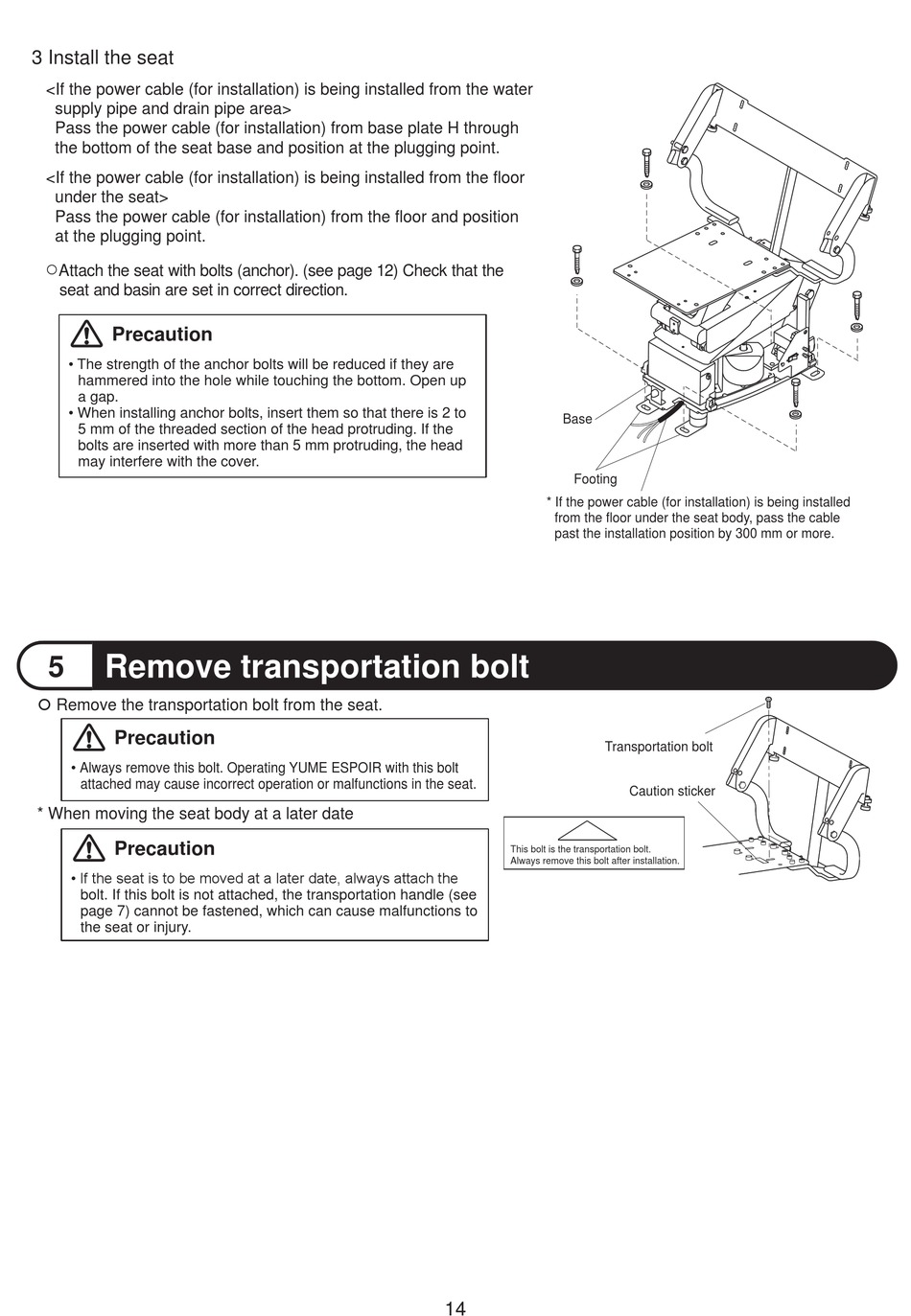

3 Install the seat
<If the power cable (for installation) is being installed from the water
supply pipe and drain pipe area>
Pass the power cable (for installation) from base plate H through
the bottom of the seat base and position at the plugging point.
<If the power cable (for installation) is being installed from the floor
under the seat>
Pass the power cable (for installation) from the floor and position
at the plugging point.
○
Attach the seat with bolts (anchor). (see page 12) Check that the
seat and basin are set in correct direction.
Precaution
• The strength of the anchor bolts will be reduced if they are
hammered into the hole while touching the bottom. Open up
a gap.
• When installing anchor bolts, insert them so that there is 2 to
5 mm of the threaded section of the head protruding. If the
bolts are inserted with more than 5 mm protruding, the head
may interfere with the cover.

Remove transportation bolt

5
 Remove the transportation bolt from the seat.
Precaution
• Always remove this bolt. Operating YUME ESPOIR with this bolt
attached may cause incorrect operation or malfunctions in the seat.
* When moving the seat body at a later date
Precaution
• If the seat is to be moved at a later date, always attach the
bolt. If this bolt is not attached, the transportation handle (see
page 7) cannot be fastened, which can cause malfunctions to
the seat or injury.
Base
Footing
* If the power cable (for installation) is being installed
from the floor under the seat body, pass the cable
past the installation position by 300 mm or more.
Transportation bolt
This bolt is the transportation bolt.
Always remove this bolt after installation.
14
Caution sticker
