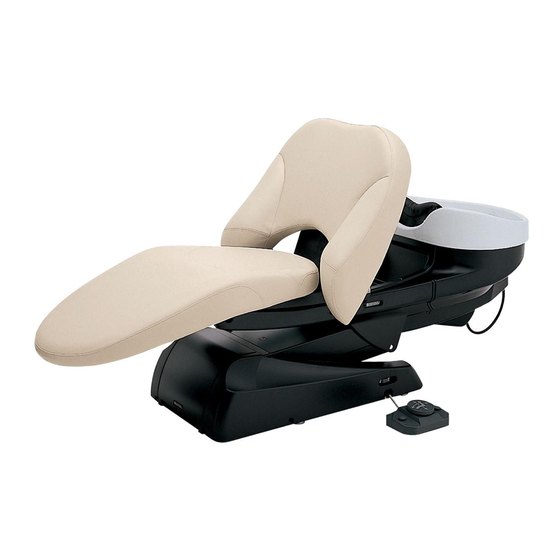

YUME
Operating Instructions
Translation of the original instructions
Thank you for purchasing this Takara Belmont product.
The instructions contained in this booklet should be thoroughly read and
understood before use.
Using this product before reading this operating instructions may result in an
accident.
This product is an industrial shampoo unit designed for barbers and hair salons.
Only use this product for its intended purpose and do not use it for
non-hairdressing work.
Keep this instruction and refer back to them when required.
For installation and assembly of this product, contact your local Takara Belmont
dealer.
1A0FTWA0
Version 9
2022.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YUME and is the answer not in the manual?

Questions and answers

Related Manuals for Takara Belmont YUME

Summary of Contents for Takara Belmont YUME

  • Page 1 Only use this product for its intended purpose and do not use it for non-hairdressing work. Keep this instruction and refer back to them when required. For installation and assembly of this product, contact your local Takara Belmont dealer. 1A0FTWA0 Version 9 2022.9...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Locations of Warning Labels  ...........   2. Dimension and Specifications  ..........  3. Overall View and Major Components   ........   4. Accessories   ..................  5. Preparation   ..................  6. Operating Instruction   ..............  7.

  • Page 3: Locations Of Warning Labels

    1.Locations of Warning Labels...

  • Page 4: Dimension And Specifications

    2. Dimension and Specifications 1965 Type ----------------------- EX-YM*L, EX-YM*R, SU-YM Drive System ---------------- Motorized Hydraulic System Measurement --------------- 760 x 1985 x 975 mm (W x L x H) Angle of Bracket ------------- 59°(6°〜65°) Type of Mixing -------------- Thermo Mixing Stop Valve ------------------ Water x 1 (Handle Type) / Hot Water x 1 (Handle Type) Electrical Requirements ------ AC 110・120V 50/60 Hz 5.8/4.4A Electrical Requirements ------ AC 220V 50/60 Hz 2.1/2.5A...

  • Page 5: Overall View And Major Components

    3. Overall View and Major Components Shower head holder ■Main Body Backrest Shampoo basin Seat Maintenance cover Main switch Foot control Neck cushion A sticker of drain hose replacement (Consumable) Head pillow (Consumable) Thermostatic control knob Shower head Body cover Drain cap Mohair tape (inside cover)

  • Page 6: Accessories

    Head Pillow ...1set Drain Cap ...1 Hair Catcher ...1 Sponge ...1 Operation Manual ...1 Installation instructions ...1 YUME SPA Technical Manual ...1 5. Preparation 5-1. Attach the Neck Cushion Neck Cushion Snap Button 1. Attach the neck cushion on metal fittings as shown in figure.
  • Page 7 5. Preparation ■ Removing the cover Turn the cover anticlockwise. Turn the cover around 5 degrees. Cover Pinch the front and back of the cover to deform and remove the catch. 【Image】 Catch Do not remove the cover of holder forcibly. Caution Failure to follow the instruction may cause damage the product.

  • Page 8: Operating Instruction

    6. Operating Instruction 6-1. Main Switch Turn on the main switch of EX-YM*L located on the left side of the pump cover and that of EX-YM*R located on the right side of the pump cover. < Main switch > Mark) ( Mark) Caution Turn off...
  • Page 9 (2) Auto Mode Control E. Preset Control Preset Auto Return Momentarily depress Preset switch on the foot control, the chair will move to the preset position automatically. (Preset position is set best position of seating shampoo. If adjustment is needed, please refer AUTO MODE POSITION ADJUSTMENT.
  • Page 10 A. Turn the tap to anticlockwise. B. Adjust the water temperature with thermostatic control knob. Open (H) Hot Thermostatic Control Knob C. Press stop button on the thermostatic Stop control knob to release lock for hot water, (C) Cold Stop then turn clockwise.

  • Page 11: Maintenance

    7. Maintenance Notice Do not use the following substances. Thinner, alcohol, gasoline, kerosene or other volatile chemicals; waxes containing abrasives; sponges containing abrasives, etc. Thinner Alcohol Chemicals Gasoline Waxes 7-1. Hair Catcher Drain Cap Take out the hair catcher under the drain cap and remove hairs Hair Catcher from the hair catcher.
  • Page 12 7-6. Sponge Cover Sponge is consumable supply. Replace the sponge if degradation causes rubbing sound when the hose is moving. (Available at additional cost) Sponge Remove the cover from the holder. [Page 5] - Remove the sponge from the hose and wash with water. Sponge holder - After washing the sponge with water, squeeze it like press- ing with both hands.
  • Page 13 7-8. Strainer for check valve Clean strainer (built-in check valve) at regular intervals. Remove the water in strainer if freezing is expected in the cold district. A. Raise the chair and turn off the main switch. Maintenance Cover B. Remove two screws and open the maintenance cover C.

  • Page 14: Troubleshooting

    Slow drainage Check to make sure that the hair removed from the hair catcher completely. In case other than those listed above, contact your local Takara Belmont dealer. Caution If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.

  • Page 15: Parts Replaced On A Regular Basis

    9. Parts Replaced on a Regular Basis The following are parts that must be replaced on a regular basis as designated by our company: □Drain hose: Replace every three years ・For the drain hose, there is a possibility that water leaks will occur because cracks are caused due to  deterioration and hardening of the hose from chemical agents in the drain water.
  • Page 16 Machinery Directive : 2006/42/EC and RoHS Directive : 2011/65/EU based on category 11 of Annex I. Product : BEAUTY SHAMPOO UNIT Model : YUME(YUME, K-YUME) The product has been designed and manufactured in accordance with the European standards as the listed in the Declaration of Conformity.
