Attach piping

2
Precaution
Follow a local rule when you attach piping.
Prepare parts that suited the local statute if you need.
1 Attach drain hose to installed drain pipe
Precaution
• Check that the drain hose is not bent or damaged.
This may affect water flow or damage the drain hose.
• Check that the drain hose clamp is firmly fastened. If it is
not fastened, water may leak or the drain hose may come
loose.
• Check that the hose is not in the shape of an S trap. An S
trap can adversely affect the flow of drainage water. If the
drain pipe layout causes an S trap to be formed, check the
installation position of the basin body and piping
dimensions, and make the necessary adjustments.
Stepped section
Drain hose packing
End of drain pipe
* Firmly insert the drain
hose packing until it hits
the inner stepped section
of the drain hose.
* Drain trap
If water leaks due to damage to the drain trap, contact your closest dealer
or Takara Belmont directly.
2 Attach the water supply pipe and hot water supply pipe
Precaution
• Always connect the pipe after removing all contaminants on the pipe
such as dirt, sand and oil.
• Check that the space around the pipe is completely filled with caulking
materials.
・ Check that pipe installation suits product specifications
(position, pipe, height) and that it matches the pipe installation
diagram and template. (see page 23)
Precaution
• Do not connect the hot water supply pipe and water supply pipe in
reverse.
• Check that water is not leaking from the joint.

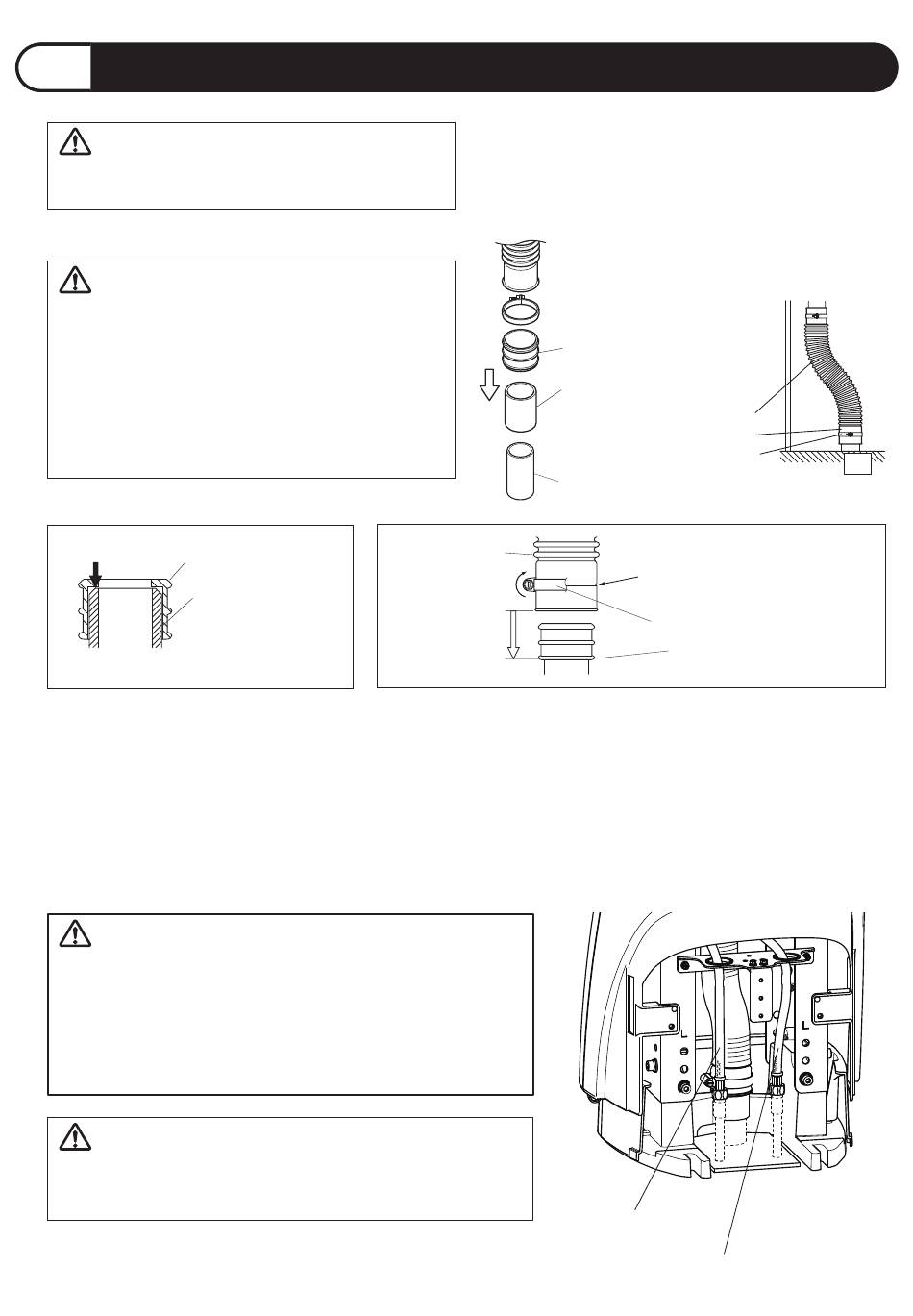

(3) Fasten the drain hose clamp.
(2) Pass the drain hose through the
(1) Install the drain hose packing
drain pipe joint
Installed drain pipe
Drain hose
Fasten
Insert to this line.
water supply pipe
11
drain hose clamp and attach
the drain hose.
to the drain pipe joint.
Drain hose
Drain hose packing
Drain hose clamp
Match the center (width) of drain hose
clamp to the indent in the drain hose.
Drain hose clamp
Drain hose packing
hot water supply pipe
Floor
