Takara Belmont YUME SWING Installation Manual

Hide thumbs Also See for YUME SWING:
Table of Contents

Advertisement

Quick Links

Download this manual
YUME SWING
Installation Manual
■Yume Swing (Reverse Slide Layout Spec.)
○Basin Unit
EX-YMSBXYM2 (YUME Basin, Reverse Slide Spec.)
○SWING Arm
EX-YMSAF2 (Front Layout, Reverse Slide Spec.)
EX-YMSAR2 (Rear Layout, Reverse Slide Spec.)
○Plumbing Cover
EA-YMSPK2 (Wall mounted plumbing)
EA-YMSPY2 (Under the floor plumbing)
EA-YMSPU2 (Above the floor plumbing)
Basin Unit
To the installer
・The manuals should be thoroughly read and understood before installation to ensure
that YUME SWING is installed correctly.
・After installation, give these instructions to the client.
To the clients
・Clients must ask professional to install YUME SWING.
・Clients must not install YUME SWING by themselves.
・Clients must store these manuals in a safe place so as not to lose them.
*The actual shape of YUME SWING, the images and dimensions listed in these manuals may be modified
and are subject to change without notice.
●The precautions listed here are to ensure that YUME SWING can be installed safely, and to prevent any danger or risk to the person installing
YUME SWING or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk
to the person installing YUME SWING or those around them due to accidents if YUME SWING is installed without adhering to the precautions.
Caution
If YUME SWING is installed after ignoring this symbol, "there is the risk of light or moderate injury or physical damage".
SWING Arm

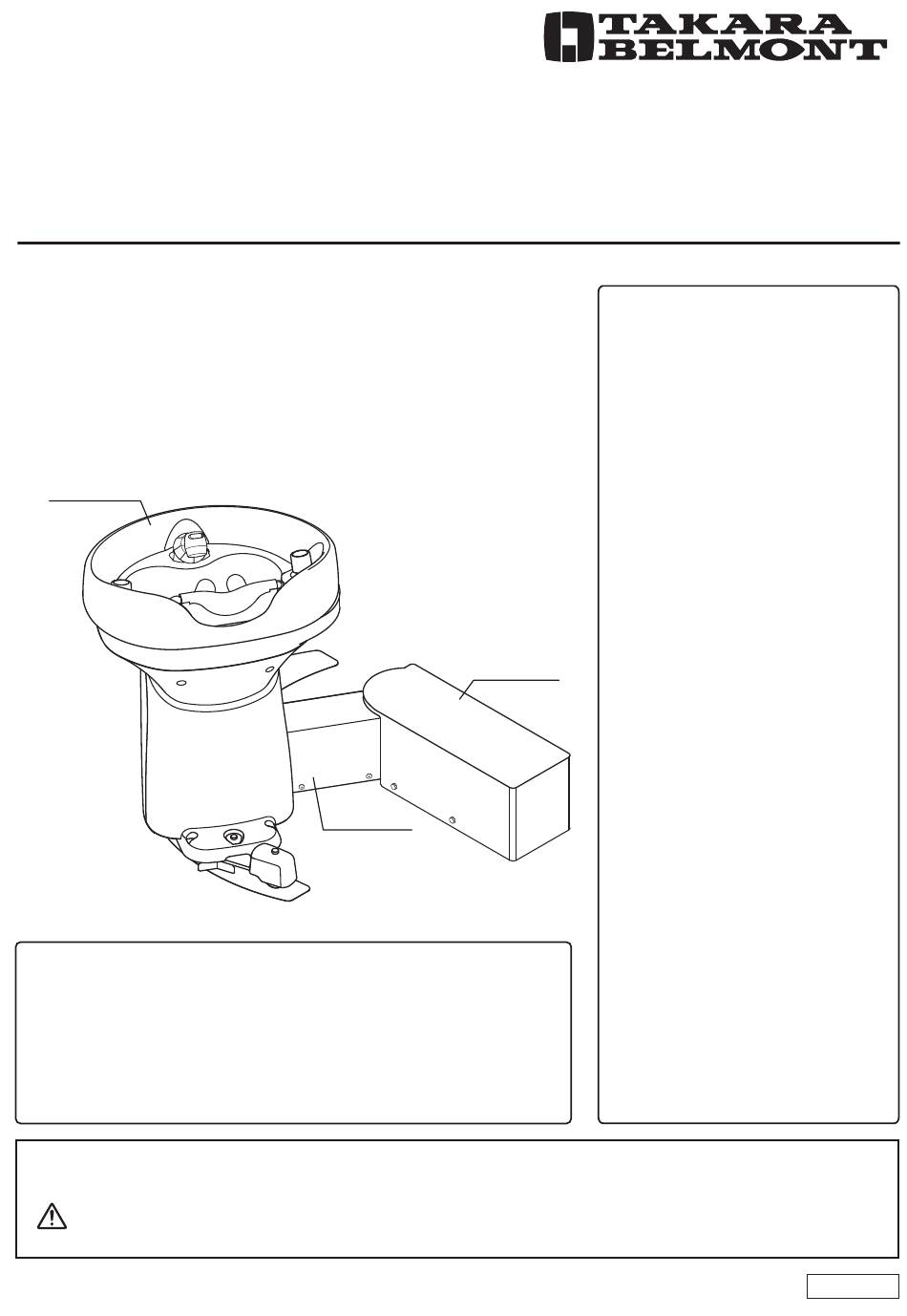

(Image is of EX-YMSBXYM2/EX-YMSAR2/EA-YMSPY2)
for Reverse Slide Layout
Plumbing Cover
1

Table of Contents

Version 6
2
2
5
8
9
10
11
15
16
17
19
23
25
27
30
31
32
33
34
34
35
2022.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YUME SWING and is the answer not in the manual?

Questions and answers

Related Manuals for Takara Belmont YUME SWING

Summary of Contents for Takara Belmont YUME SWING

  • Page 1: Table Of Contents

    ●The precautions listed here are to ensure that YUME SWING can be installed safely, and to prevent any danger or risk to the person installing YUME SWING or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk to the person installing YUME SWING or those around them due to accidents if YUME SWING is installed without adhering to the precautions.

  • Page 2: Before Installation

    SET JOY ABLE 1517 macaron 143 1515 278 622 757 [X] and [Y] dimensions differ depending on the type of chair using with YUME SWING. (Width of fixing base) 164.5 Mirror center line Check the dimensions from the list as shown below.
  • Page 3 Mirror Mirror center Wall mounted [X] and [Y] dimensions differ depending on the type of plumbing chair using with YUME SWING. Check the dimensions from the list as shown below. *Be sure to use dimensions are for reference.) the plumbing...
  • Page 4 ＜Front LayoutーPiping construction diagram＞ ＜In case of Under the floor plumbing/ ＜In case of Wall mounted plumbing/ Above the floor plumbing＞ 　Above the floor plumbing＞ ・Be sure to use the plumbing cover for Wall mounted plumbing. ・Be sure to use the plumbing cover for Above the floor plumbing. ■Top View Cabinet Cabinet...

  • Page 5: Product Fixing Position

    Product Fixing Position ２ ＜Floor template / Front Layout＞ [Unit: mm] Reference Chair front Caution Please note that this is a template for the standard slide layout and not for the reverse slide layout. However, you can use this as a template for the reverse slide layout by turning it over.
  • Page 6 ＜Floor template / Rear Layout＞ [Unit: mm] Reference Caution Please note that this is a template for the standard slide layout and not for the reverse slide layout. However, you can use this as a template for the reverse slide layout by turning it over.
  • Page 7 ＜Caster Rail Floor Template / Front Layout＞ [Unit: mm] Perforations Reference Caster Rail Perforations Arm rotation center line Caster rail fixing hole Arm rotation center line Align to the edge of the fixing base Perforations Fixing base Perforations ＜Caster Rail Floor Template / Rear Layout＞ Reference Perforations Caster Rail...

  • Page 8: Installation Conditions

    Installation Conditions ３ ■Floor surface ○Ensure that the material or finishing of the floor surface is waterproof or has a waterproof coating applied. ○Always ensure that the floor surface is horizontally level so that the product slides smoothly. ○Ensure that the floor surface is smooth and free from bumps around the attachment areas. ○Raised pipes 【Plumbing specifications】...

  • Page 9: Usage Conditions

    ・ Use a pressure between 0.1 - 0.4 MPa (1 - 4 kgf/cm ). If multiple Yume Swing are Hot water, used, ensure that the pressure does not drop below 0.1MPa (1 kgf/cm water supply ・...

  • Page 10: Name Of Parts

    Name of Parts ○This page shows the name of parts which is necessary for the installation, and instruction pages for each parts. Before executing installation, please check this page. “10. Installation of Rotation Arm Cover” (page 31) Plumbing cover Rotation arm cover “13.

  • Page 11: Contents Of Packaging

    Contents of Packaging ○Before installation, check if all of the below parts is coming with the product. ＜Basin Unit＞ ■Contents Basin Air mattress Film tape Maintenance cover Basin unit cover * The Urea screws are held down the main body with the maintenance cover.
  • Page 12 ■Packing size and weight [Unit: mm] ＜Basin Unit: YUME Basin ＞ Basin unit 37kg, Wood frame 30kg...
  • Page 13 ＜SWING Arm＞ Water supply ■Contents of Packaging pipe Rotation arm cover Hot water supply pipe Rotation arm Drain pipe Water supply pipe Hot water supply pipe Fixing base Caster ■Accessories ＜Common parts for YUME Basin and Side Basin＞ □ Drain hose (1) □...
  • Page 14 ＜Paper Template＞ ○Paper template is supplied separately. (Refer to pages 5 to 7.) For receiving it, please contact the nearest dealer or Takara Belmont directly. Caution Please note that this is a template for the standard slide layout and not for the reverse slide layout.

  • Page 15: Carrying The Product

    Carrying the Product ■Carrying the Basin Unit 1 Remove the maintenance cover from the main body. ○Remove the protective tape and the Urea screws from the maintenance cover. *Remove the maintenance cover keeping the protective tape taped to the main body cover. Caution Do not lose the Urea screws holding down the maintenance cover.

  • Page 16: Installation Of The Product

    Installation of the Product *Be sure to follow the below instructions to install the product. Failure to follow these instructions or not in order may prevent to install the basin unit and SWING arm correctly. Flow of installation of the product 【In case of new construction】 ＜Front Layout＞＜Rear Layout＞...

  • Page 17: Check The Position Of Mirror And Cabinet

    floor fixing position of the fixing base. supply pipe *The floor fixing point of the fixing base differs Hot water depending on the chair used with Yume Swing. supply pipe Drill (2) Mark the screw or bolt anchor position of the Drain pipe fixing base of SWING arm (five locations).
  • Page 18 ３ Attach plumbing gasket. Plumbing gasket (Sponge) (1) Cut a slit in the plumbing gasket to suit the position of the raised Cut a slit pipes. (2) Peel away the sheet from the adhesive surface of the plumbing gasket and stick it to the floor surface. (3) Cut out a circle around the slit cut in the plumbing gasket to suit the pipes, and fill in any gaps with caulking materials.

  • Page 19: Installation Of Caster Rail

    Installation of Caster Rail １ Hold the rotation arm and set the paper template. Caution Do not apply excessive force when carrying the rotation arm. ・ Failure to follow this caution may result in product breakage. (1) Carry the rotation arm and insert the paper template (Refer to page 7.). (2)Align the caster of rotation arm and caster rail (perforations).
  • Page 20 ■ Wooden floor ２ Drill holes on the caster rail attachment position. (1) Insert the caster rail under the rotation arm and set to the paper template position. *Hairline surface to be placed upward. Upper surface : Hairline finish (Surface containing the line in the same direction) Caution Caster rail Hairline surface of caster rail to be placed upward.
  • Page 21 ■Other than wooden floor ２ Hammer anchor bearing in the caster rail attachment positions. (1) Insert the caster rail under the rotation arm and set Upper surface : Hairline finish it aligning with the paper templates. (Surface containing the line in the same direction) *Hairline surface to be placed upward.
  • Page 22 ３ Caulking the caster rail fixed positions. Approx. 30mm (1) Apply caulking material on the floor where the caster rail *Keep the holes will be installed. Apply caulking not get concealed. materials. Caution Be sure to apply caulking material. ・ Without caulking, water leaks inside between rail and floor and it may cause degradation of the floor material or the rail rust.

  • Page 23: Installation Of Basin Unit

    Installation of Basin Unit １ Attach hexagon screws to the rotation arm tentatively. (1)Attach the hexagon screws (M8 x 50) tentatively on the Hexagon screws (M8 x 50) attachment holes (2 locations) of rotation arm. Shower head side Neck cushion side Rotation arm ２...
  • Page 24 (2)Align the basin unit with the attachment holes (2 locations) on the neck cushion side, and fix Shower head side *Fasten the hexagon screws completely. Basin unit Note Do not use the attachment covered by seal. The holes with seal will be used at “Adjustment of Center Position of Basin Unit and Chair”...

  • Page 25: Plumbing

    Plumbing 5-1 Connecting the raised pipes (1) Check the followings before installation. ・ Raised pipes are set properly according to the overall layout diagram (Refer to pages 2, 3) and paper template (Refer to pages 5, 6) according to the product specifications. ・...
  • Page 26 5-2 Connecting the basin unit side Caution Do not remove or cut the band which connects the drain trap. Failure to follow this instruction may cause drain trap to fall out, leading to water leakage. Note Drain trap If the water leakage occurs due to breakage of drain trap, etc., contact the nearest dealer or Takara Frame Belmont directly.

  • Page 27: Installation Of Chair

    Installation of Chair 6-1 Installation of Chair ○Refer to the overall layout diagram (pages 2, 3) and paper template (pages 5, 6) and install the chair. *Refer to the supplied installation manual of each chair for checking the details of chair installation. ■Sliding the basin unit When sliding the basin unit, hold the edge of basin.

  • Page 28: Adjustment Of Center Of Basin Unit And Chair

    6-3 Checking after installing the chair ○After moving the basin unit to the shampooing position (Refer to pages 2, 3), move the chair to preset position, and check the followings. *Refer to the operating manual supplied with each chair for checking the chair operation. ■Inspection items 1) If the space between backrest edge of the chair and the basin is around 15 mm.
  • Page 29 (5) Centering the loosened bolt, rotate the basin unit to the desirable direction for adjustment. Shower head side (6) Secure the bolts on the screw holes which locate Plate at the desired direction for the adjustment and fix (Basin unit Rotate the basin * Remove the seal and the basin unit on the rotation arm.

  • Page 30: Checking After Plumbing

    Connect a pressure reducing valve (Optional) on the upper side (mixer side) of the check valve with filter, then adjust the pressure. (It is recommended that water supply pressure and hot water supply pressure become the same pressure) *For the pressure reducing valve, contact the nearest dealer or Takara Belmont directly.

  • Page 31: Installation Of Base

    Installation of Base Front Cover １ Install the base front cover to basin unit (1)Attach the base front cover to the base of basin unit. (2)Secure the base front cover with 2 pcs. of screws (M6 x 20, with resin washer). Caution Resin washers come with the product attached to the screws.

  • Page 32: Installation Of Maintenance Cover

    If any problem is found, contact the other parts. Failure to follow this instruction may cause nearest dealer or Takara Belmont directly. scratches or product malfunction. (1) Install the maintenance cover to the main unit cover.

  • Page 33: Installation Of Plumbing Cover

    When attaching the cover, pay attention not to hit or pinch es or dirt is found on the cover. If any problem found, other parts. Failure to follow this instruction may cause contact the nearest dealer or Takara Belmont directly. scratches or product malfunction. Caution (1) Attach the plumbing cover to fixing base.

  • Page 34: After Installation

    After Installation (1) Remove the air mattress attached to the basin and the film tape sealed on the basin cover. (2) Inspect the following points. Caution Be sure to execute the inspection without fail to prevent accidents during operation. ■Inspection items 1) Check that there is no unsecured screws.

  • Page 35: Memo

    MEMO...
  • Page 36 TAKARA BELMONT CORPORATION 1-1, 2-Chome, Higashi-shinsaibashi,Chuo-ku,Osaka,Japan TEL : +81-6-6213-5945 FAX : +81-6-6212-3680 Printed in Japan 1E04RLC0...
