YUME ESPOIR Installation Instructions
YUME ESPOIR
Basin body
[For Back wash] Type
Seat body
[Fixed Legrest] Type
[Movable Legrest] Type
Seat
[Fixed Legrest] Type
[Movable Legrest] Type
Base plate
 The precautions listed here are to ensure that YUME ESPOIR can be installed safely, and to prevent any danger or risk to the person installing
YUME ESPOIR or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk
to the person installing YUME ESPOIR or those around them due to accidents if YUME ESPOIR is installed without adhering to the precautions.
Precaution
If YUME ESPOIR is installed after ignoring this symbol,
"there is the risk of light or moderate injury or physical damage".
Note : Plumbing should be performed by a qualified technician and should meet all national and local plumbing codes and ordinances.
It is the responsibility of purchaser and/or plumber to conform to national and local codes and ordinances.
Takara Belmont does not take any responsibility or liability for plumbing and installation.

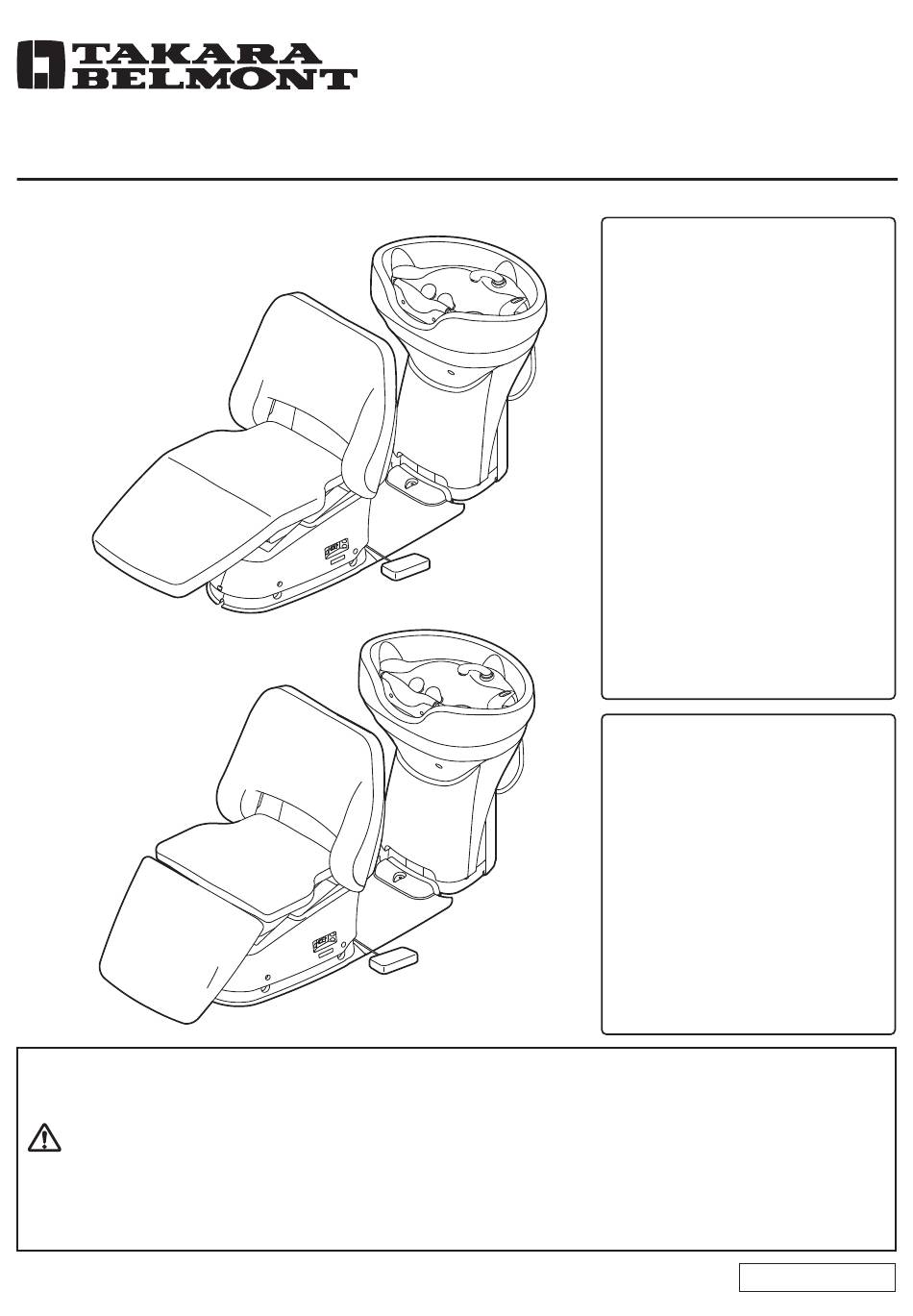

(Image is of "Fixed legrest" type)

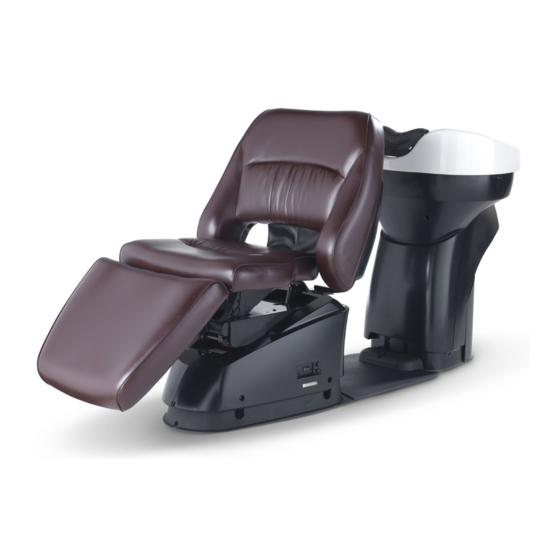

(Image is of "Movable legrest" type)
1
Contents

10 Check operation (2)

Attachment of the hair trap and the drain cap 19
To the installer
• The instructions should be thoroughly read
and understood before installation to ensure
that YUME ESPOIR is installed correctly.
• After installation, give these instructions to
the customer.
To the customers
• Customers must ask professional to install
YUME ESPOIR.
• Customers must not install YUME ESPOIR
by themselves.
• Customers must store these instructions in
a safe place so as not to lose them.
* The actual shape of YUME ESPOIR and the
images and dimensions listed in these
instructions may be modified and are
subject to change without notice.
February 2020
Version 6
2
5
6
8
9
9
11
13
14
15
16
17
17
18
19
19
20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YUME ESPOIR and is the answer not in the manual?

Questions and answers

Related Manuals for Takara Belmont YUME ESPOIR

Summary of Contents for Takara Belmont YUME ESPOIR

  • Page 1: Table Of Contents

     The precautions listed here are to ensure that YUME ESPOIR can be installed safely, and to prevent any danger or risk to the person installing YUME ESPOIR or those around them. All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk to the person installing YUME ESPOIR or those around them due to accidents if YUME ESPOIR is installed without adhering to the precautions.

  • Page 2: Before Installation

    Before installation Overall layout diagram Basin body: Back wash type Seat body: Fixed legrest type Top view Hot water supply position Drain position Water supply position Side view 2950 (*2) or more 435 (*2) or more 1885 630 or more Wall Wall Lowest position...
  • Page 3 Overall layout diagram Basin body: Back wash type Seat body: Movable legrest type Top view Hot water supply position Drain position Water supply position Side view 2900 (*2) or more 450 (*2) or more 630 or more 1820 Wall Wall Lowest position Highest position Drain position...
  • Page 4 Ensure that the floor surface is smooth and free from bumps around the attachment areas. If the floor surface is tiled, cracks may occur when fastening the bolts during installation of the YUME ESPOIR main body. If this looks likely to happen, use the main body attachment diagram and template as a reference and change the material of the attachment area that is in contact with the floor to another such as plywood or mortar.

  • Page 5: Usage Conditions

     Use a pressure set between 0.1 to 0.4 MPa (1 to 4 kgf/cm ). If multiple YUME ESPOIR are used, ensure that the pressure does not drop below 0.1 MPa (1 kgf/cm Hot water supply, ...

  • Page 6: Yume Espoir Packing

    YUME ESPOIR packing <Basin body> Content of packaging Basin Air mat Air mat Main body cover Maintenance cover Protective tape * The Urea screws are held down the main body with the maintenance cover. (Yuria screw M5 × 15) Precaution An air mat is attached to the basin, and protective tape applied to the main body cover.
  • Page 7 <Seat body> Content of packaging Backrest  Cover set · Base cover R Backrest Supporting column Areas that must not be used to carry the main body · Base cover L * There is no legrest for the Fixed legrest type. )Legrest ·...

  • Page 8: Carrying The Main Body

    Carrying the main body Carrying the basin 1 Unpack the wood frame. 2 Remove the maintenance cover from the main body. Remove the protective tape and the Urea screws from the maintenance Basin cover. * Remove the maintenance cover keeping the protective tape taped to the main body cover.

  • Page 9: Installation Of Main Body

    Installation of main body * The basin or seat may not be able to be installed correctly depending on installation procedures of the main body. Always install the main body using the following procedures. Main body installation procedure 1 Install the basin 7 Attach the base cover After attaching the base cover, install base plate F to base plate H.
  • Page 10 YUME ESPOIR or water seeping on the floor in the event of water leaks. drain pipe area * Attach pipe packing •...

  • Page 11: Attach Piping

    * Drain trap If water leaks due to damage to the drain trap, contact your closest dealer or Takara Belmont directly. 2 Attach the water supply pipe and hot water supply pipe Precaution • Always connect the pipe after removing all contaminants on the pipe such as dirt, sand and oil.

  • Page 12: Checks After Installation Of Pipes

    Checks after installation of pipes 1 Test water flow Precaution Always test the water flow to prevent accidents during use. * Test the water flow and inspect the following items. The hot water may be slightly tainted at the start of the water flow test, however this does not indicate any problem.

  • Page 13: Install The Seat

    Install the seat Installation M6 × 20 Precaution Ensure that power cannot be turned on to the seat during the installation process. Plastic washer 1 Install base plate H to the basin (2) Fasten Press the ribbed section of base plate H to the base of the basin and fasten with the screws.

  • Page 14: Remove Transportation Bolt

     Remove the transportation bolt from the seat. Precaution Transportation bolt • Always remove this bolt. Operating YUME ESPOIR with this bolt attached may cause incorrect operation or malfunctions in the seat. Caution sticker * When moving the seat body at a later date Precaution This bolt is the transportation bolt.

  • Page 15: Wiring

    U. Base * The fastening methods for base plate U is outlined in number 2 below. * Always use the extension power cables (sold separately) specified by Takara Belmont. Base plate U Power cable (seat body) Hole...

  • Page 16: Attach Base Cover

    * Check that there is no damage or dirt on the cover before installing it. If there are any problems found in preliminary checks, contact your closest dealer or Takara Belmont directly. 1 Remove the oil plug from the oil tank.

  • Page 17: (After Assembling The Seat)

    Foot switch (2) Press the foot switch and check operation of the seat. For operating DN (DOWN) procedures, see the separate "YUME ESPOIR Instruction Manual". (3) Once operation has been confirmed, check the attachment condition of the following items. <Items to check>...

  • Page 18: (After Attaching The Backrest And Seat)

    (1) Turn the main power switch on. Press the right side ( symbol) of the main power switch. (2) Press the foot switch and check operation of the seat. For operating procedures, see the separate "YUME ESPOIR Instruction Manual". (3) Once operation has been confirmed, check the attachment condition of the following items.

  • Page 19: After Installation

    After installation  Remove the air mat attached to the basin and protective tape applied to the main body cover. Precaution Always conduct the following inspections to prevent accidents during use.  Inspection items (basin body)  Inspection items (seat body) (1) Are there any screws that have not been attached? (1) Are there any screws that have not been attached? (2) Is there any rattling?

  • Page 20: Main Body Attachment Diagram

    Main body attachment diagram...
  • Page 21 ＭＥＭＯ...
  • Page 22 ＭＥＭＯ...
  • Page 23 ＭＥＭＯ...
  • Page 24 NOTE EU REPRESENTATIVE MANUFACTURER TAKARA COMPANY EUROPE GmbH Berner Strasse 18, 60437 TAKARA BELMONT CORPORATION Frankfurt am Main, Germany 2-1-1, Higashishinsaibashi, Chuo-ku, Osaka, 542-0083, Japan TEL: +49 69 506878 0 TEL:81-6-6212-3523 FAX: +49 69 506878 20 FAX:81-6-6211-5745 1E0490A0...
