How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of bat- tery before disposal to prevent fire, heat generation caused by short circuit.
Page 4
Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the equipment. FURUNO assumes no liability for the customer's failure to comply with these re- quirements.
Page 5
VOICE DISTRESS CALLS Lift cover Distress Press RED Button until beep sounds continuously (Push and hold in for 6 seconds) Handset rings. If the handset is in the cradle: take the handset off the cradle, then speak. If the handset is not in the Use the HANDSET for voice calling.
TABLE OF CONTENTS FOREWORD ........................v SYSTEM CONFIGURATION ..................vi INTRODUCTION .......................1 1.1 The Safety Voice (Non-SOLAS) System............... 1 1.1.1 System components ....................1 1.1.2 IP Handset ......................2 1.1.3 FleetBroadband system (Communication Unit and Antenna Unit) ......2 1.1.4 Alarm Panel ......................3 1.2 The Safety Voice (Non-SOLAS) Service...............
This dedication to excellence is furthered by our ex- tensive global network of agents and dealers. Congratulations on your choice of the FURUNO FB-3101 Alarm Panel. We are confident you will see why FURUNO has become synonymous with quality and reliability.
12-24V DC Relay AC/DC Power External Alarm AY34001 Supply Unit 406080A-FUR-001 IP Handset Cradle FB-8001 Alarm Panel FB-3101 100-240V AC USB-RS232C Converter FB-3003 Network Equipment, IP Handset Network Equipment, IP Handset Environmental category Units Category : Standard supply Antenna Unit Exposed to the weather...

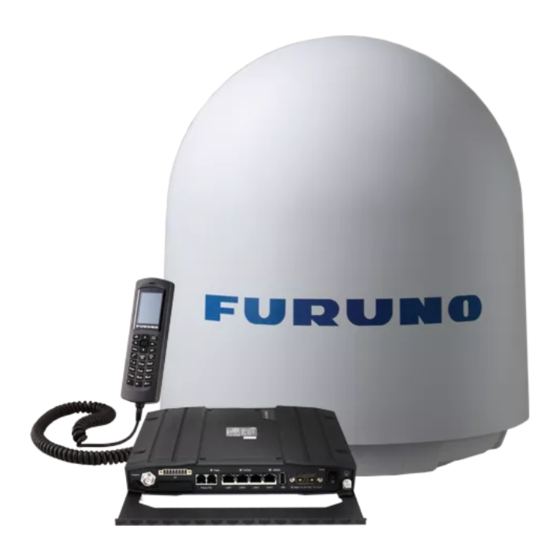

Voice Handset(s) 1.1.1 System components The system includes the following system components: • Alarm Panel (FB-3101) • IP Handset (FB-8001) • Communication Unit (FB-2001) • Antenna Unit (FB-1251 or FB-1501) The system components are briefly described in the following sections. Apart from the above equipment your system may include additional handsets, routers etc.
1. INTRODUCTION 1.1.2 IP Handset The IP Handset is used in the Safety Voice system to make Distress calls initiated by the Alarm Panel. When the IP Handset is designated for Safety Voice by the Communication Unit, the top of the display shows When the FB Distress button on the Alarm Panel is pressed, the IP Hand- set for Safety Voice rings.
1. INTRODUCTION 1.1.4 Alarm Panel The Alarm Panel is used for initiating Distress calls with the associated IP Handset for Safety Voice and for indicating incoming Distress or Urgency calls. The Alarm Panel must be placed close to the IP Handset for Safety Voice. The buttons and display text in the Alarm Panel are described below.
1. INTRODUCTION Buzzer: The Alarm Panel also has a buzzer, which sounds when there is a Distress call or a fault. For the behavior of the buzzer, see "Buzzer" on page 3-12. The Safety Voice (Non-SOLAS) Service The Inmarsat Safety Voice (Non-SOLAS) service uses FleetBroadband to provide priority call ac- cess - interrupting all non-distress calls as soon as the red distress button is pushed.
GETTING STARTED This chapter describes how to make sure the system is ready for making a call. For information on how to install the system, insert SIM card and connect cables, refer to the Installation Manual for FELCOM251/FELCOM501 (IMC-57060). This chapter has the following sections: •...
USING THE SYSTEM This chapter describes how to make Distress and Urgency calls and explains the functions of the Alarm Panel. Note: This manual only describes functions related to Safety Voice. For information on other func- tions of the IP Handset and/or the FleetBroadband system see the Operator’s Manual (OME- 57050) for FELCOM251/FELCOM501.
3. USING THE SYSTEM 3. When the IP Handset for Safety Voice rings, pick up the handset and accept the call. You are now put through to the nearest MRCC. Follow the procedure for Safety Voice calls, see "VOICE DISTRESS CALLS"...
Page 16
3. USING THE SYSTEM 2. Press the key to open the sub-menu. 3. Press or to select the [Rescue Call] menu, then press the Enter key. If your IP Handset is not a Safety Voice Handset, the following menu is not displayed. The Safety Voice Handset has the icon in its status bar.
3. USING THE SYSTEM Receiving Distress Calls Incoming calls with Distress priority will cause the IP Handset for Safety Voice to ring, if it is not engaged in a call. The display in the IP Handset shows "Distress". Pick up the handset and accept the call.
3. USING THE SYSTEM Displaying Faults If there is a fault in the connected equipment or network, the buzzer in the Alarm Panel sounds and the display of the Alarm Panel shows "Fault". Note: The Fault indicator is also lit if Safety Voice is disabled in the connected Communication Unit.
3. USING THE SYSTEM General Functions in the Alarm Panel Buzzer The Alarm Panel has a buzzer, which has the following behaviour: Event Behaviour FB Distress button is pressed. Buzzer sounds intermittently until the Distress function is activated, then with a longer tone (1 second) followed by silence.
3. USING THE SYSTEM Adjusting the light To increase the light intensity, press and hold the Dim button To decrease the light intensity, press and hold the Dim button To go directly to full light intensity, press both Dim buttons at the same time. Note: The light always goes to full intensity if there is an event such as a Distress message, a fault or the Test button is pressed.
TROUBLESHOOTING This chapter gives guidelines for troubleshooting and provides an overview of the different means of status signalling. It has the following sections: • Status signalling • Event messages • Troubleshooting guide • Service and repair Status Signalling Both the Alarm Panel, the IP Handset and the Communication Unit have means of signalling the status of the system.
4. TROUBLESHOOTING Messages for Notification In the IP Handset and in the Web interface of the Communication Unit you can see a list of events. The list below shows the messages for notification that may appear in connection with the Safety Voice function.
4. TROUBLESHOOTING Troubleshooting Guide The following table provides information on some of the problems that might occur, including pos- sible causes and remedies to solve the problems. Problem Possible Cause Remedy The Safety Voice function does 1) The IP Handset is not recog- 1) Connect a computer to the not work.
Page 24
4. TROUBLESHOOTING Problem Possible Cause Remedy The Alarm Panel shows Fault 1) There is a fault in the Com- 1) Check that all cables are munication Unit or in the con- connected correctly. Check the nection to the Communication notifications log in the IP Hand- Unit.
Should your FURUNO product fail, please contact your dealer or installer, or the nearest FURUNO partner. Your dealer, installer or FURUNO partner will assist you whether the need is user training, tech- nical support, arranging on-site repair or sending the product for repair.
APPENDIX 1 GLOSSARY BGAN Broadband Global Area Network. A mobile satellite service that offers high-speed data up to 492 kbps and voice telephony. BGAN enables users to access e-mail, corporate networks and the Internet, transfer files and make telephone calls. eMLPP Enhanced Multi-Level Precedence and Preemption.
