Type 2 - Directed DIRECTECHS DS4+ Installation Manual

Type 2

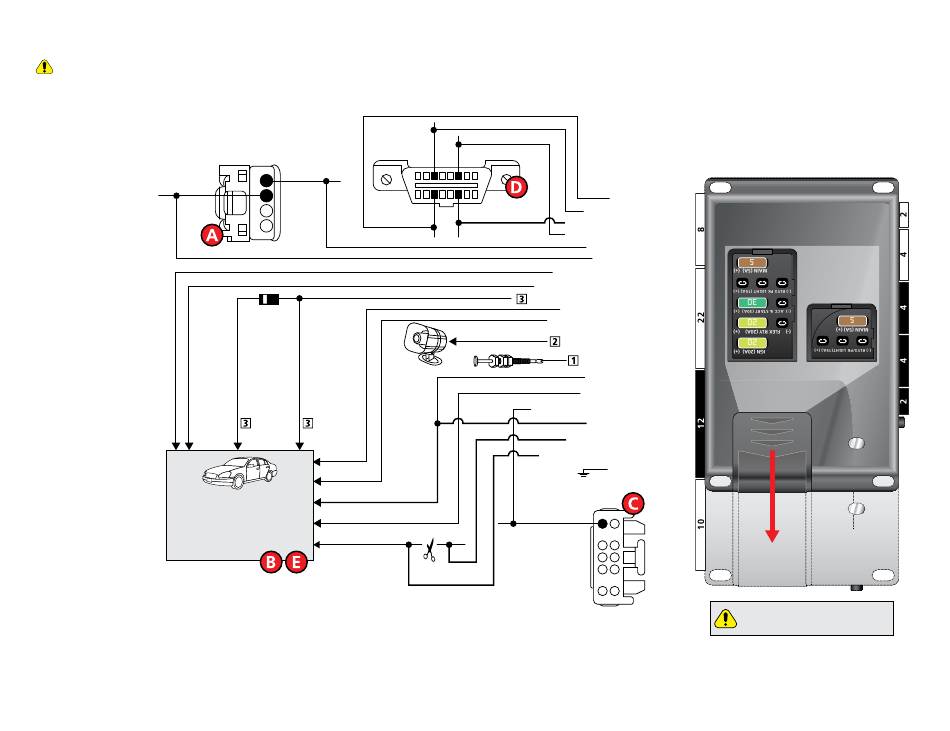

Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 23 for important information on this installation.
P.A.T.S. - 4-pin
(at ignition switch)
TX: pin 3
(-) Trunk
(-) Lock Release
Refer to the Vehicle wiring
reference charts for wire and
connector details related to
the standard connections in
the vehicle.
22
OBDII Diagnostic Connector,
under Driver Dash (connector side view)
MS CAN High:
pin 3
1
RX: pin 4
4
9
3
2 MS CAN Low:
pin 11
1
6A Diode
Siren
(+) Keysense (+) Acc.
(+) Start
(-) Unlock
(+) 12V
(+) Ignition
Cut
Driver Door Trigger
HS CAN High: pin 6
8
16
MS CAN Low: Tan: 1
MS CAN High: Tan/Black: 2
HS CAN Low: pin 14
HS CAN Low: Orange/Brown: 3
HS CAN High: Orange/Green: 4
Data RX: Orange/Black: 7
Data TX: Yellow/Black: 8
(-) Lock Output: Dk. Green/Black: 3
(-) Trunk Release Output: Red/White: 4
(+) Accessory/Keysense Output: White: 7
(+) Start Output: Violet/Black: 8
(-) Unlock Output: Dk. Blue/Black: 9
(+) Siren Output: Brown/Red: 11
Hood Pin
(-) Hood Pin Input: Gray: 21
(+) 12V Input: Blue/Red: 2
(+) Ignition Output: Blue: 3
(+) Parking Light Output: White: 5 & 11
(+) 12V Input: Red: 6 & 12
RAP Off Interrupt: Lt. Green: 8
RAP Off Interrupt: Lt. Green/White: 9
(-) Ground: Black: 10
1 2 3 4 5 6 7
6 1
(+) Parking Light:
pin 6
7 2
8 3
9 4
10 5
BCM Gray
10-pin connector
(driver kick panel or
driver end of dash)
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
DS4+ FORD6
