MIXVIBES CROSS DJ User Manual page 22

ATTENTION Before proceeding with the configuration of external audio
sources make sure that you have configured CROSS for either internal or ex-
ternal mixer mode as explained in the previous section..

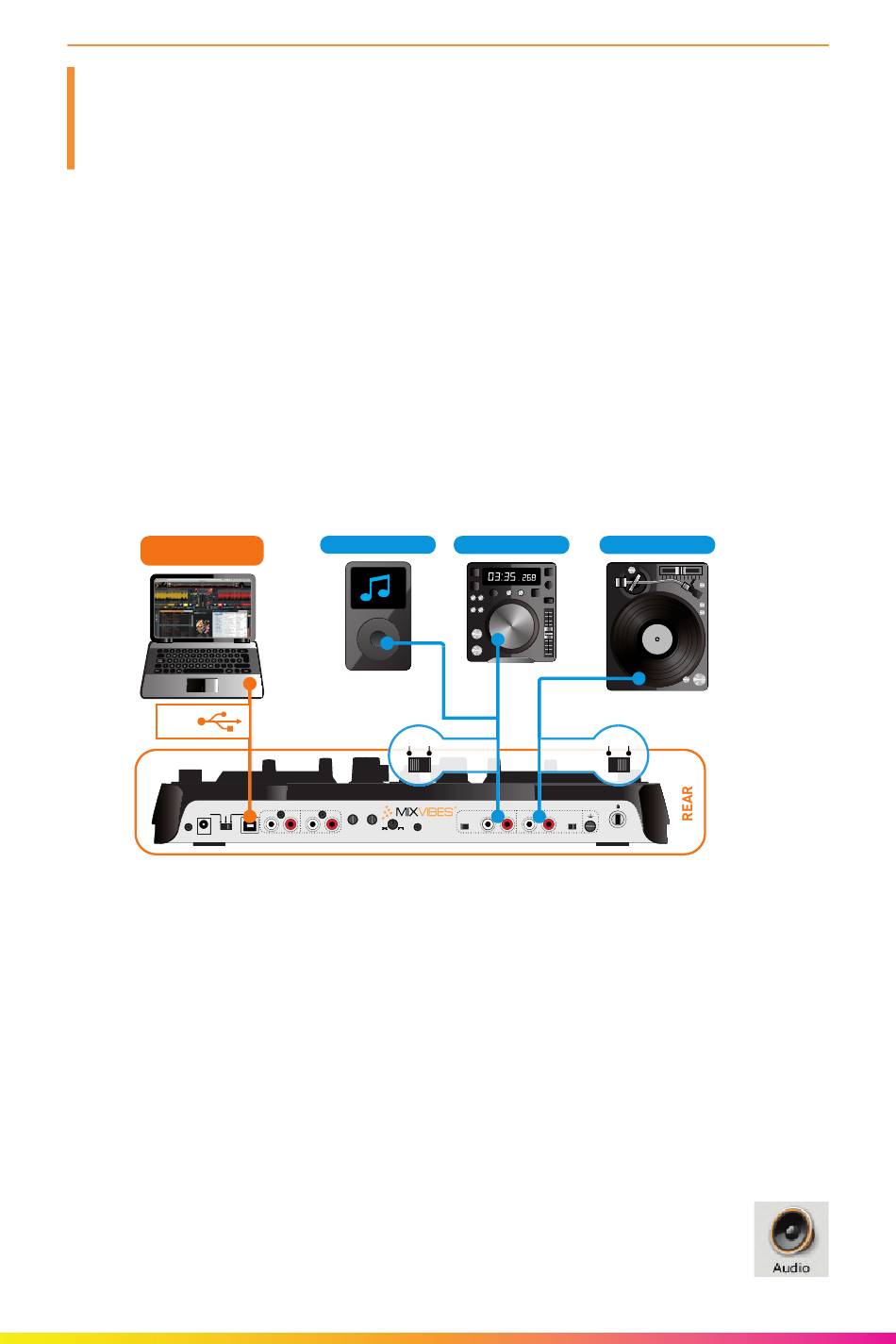

Making the Cable Connections
the following steps explain how to connect the different components.
1 If you wish to connect a turntable, connect the ground of your turntable to
the ground lug on the u-mIX control pro.
2 connect the outputs of your external audio source to the rca inputs of your
u-mIX control pro. plug the left device into inputs 1/2 and the right de-
vice into inputs 3/4.
make sure that the left channel (plug is white normally) is connected to the
white rca sockets on the u-mIX control pro, and that the right channel
(usually red) is connected to the red sockets.
MIXVIBES
SOFTWARE
USB
9V
0.5A POWER
DC IN OFF
3
perform one of the following actions:
•
Turntable with Phono Output Set the input selector for the inputs
where the turntable is connected to, to pHono.
•
Turntable with Line Output, CDJ Player, MP3 Player
selector for the inputs where the line device is connected to lIne.
Routing External Audio into the CROSS DJ Mixer
once your external audio source is connected to your audio interface you need to
tell croSS DJ, which input port of your audio interface shall be assigned as left
Input and as right Input.
1 open the file menu and click on preferences. open the audio tab
of the croSS preferences dialog.
