- Page 1 DVS UL TIMA TE Quick Start Guide...
- Page 2 Welcome U-MIX44 Description Connections Software and ASIO driver installation Install Wizard Getting started 6.1 Customizing the interface 6.2 MIDI Configuration 6.3 Importing Audio 6.4 Loading Tracks First Mix with MIXVIBES DVS ULTIMATE Troubleshooting vibe-watermark-brig vibe-watermark-brig Frequently Asked Questions U-MIX44 Specifications...
- Page 3 MIXVIBES DVS ULTIMATE in no time at all! We invite you to be a part of the MIXVIBES community to share your experiences with other DJs, find help and advice, and check for available updates. See you online on the...

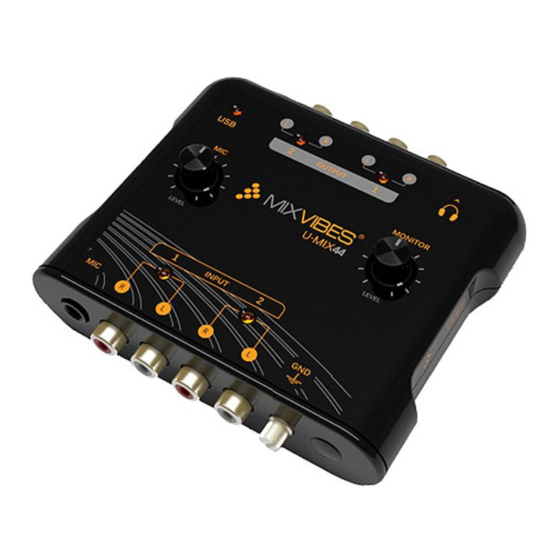

- Page 4 panel.pdf panel.pdf 15/07/2009 15/07/2009 14:39:07 14:39:07 2 U-MIX44 Description Top panel USB cable: Connect the USB cable to the computer. vibe-watermark-brig vibe-watermark-brig 4 RCA output channels: You can use these outputs to connect an external mixer or your sound system (amplifier, powered speakers, or home stereo). Headphone output connector: Monitor the outputs 3/4 through the headphone output.
- Page 5 3 Connections Follow the instructions below to use MIXVIBES DVS and the U-MIX44 with a pair of decks and an external mixer. If you are using vinyl, plug the ground of your turntable to the ground lug on the U-MIX44 or on your DJ mixer.
- Page 6 23/03/2010 18:24:23 Audio Volumes vibe-watermark-brig vibe-watermark-brig Follow the instructions below to use MIXVIBES DVS and the U-MIX44 with a MIDI controller and the integrated mixer. Connect outputs 1/2 of your U-MIX44 to your sound system (amplifier, powered speakers, or home stereo).
-
Page 7: Software And Asio Driver Installation
4 Software and ASIO driver installation First, make sure you are in possession of the MIXVIBES U-MIX44 audio interface and that you have an available USB port on your computer. Check that your U-MIX44 audio interface is plugged into an active USB port. - Page 8 MIXVIBES software. To launch MIXVIBES DVS, go to [Start > All Programs > MixVibesDVS7] and click on MixVibes DVS or double-click on the MIXVIBES DVS shortcut on your desktop.
-
Page 9: Install Wizard
5 Install Wizard installwizard1.pdf 02/02/2010 16:57:14 The install wizard launches automatically when running MIXVIBES DVS for the first time. The install wizard can be launched manually in [Preferences > Install Wizard]. Select the skin. Comments will help you select the skin. - Page 10 5 Install Wizard Select the Control Media that you will be using: vinyl or CD. Start playback of the control records making sure that the pitch is set to zero on your decks and the playback direction is forward. If your decks have a Master Tempo function or any on-board effects, make sure they are also disabled installwizard3.pdf 02/02/2010 16:56:37 as those will interfere with the calibration, and with the time code in general.
-
Page 11: Getting Started
6 Getting started 6.1 Customizing the interface interface1.pdf interface1.pdf 01/04/2009 01/04/2009 16:49:02 16:49:02 The first time the program is installed and launched, you will see the following screen. Starting interface If you want to change the layout to better suit your needs, select [View/Moveable windows] . -
Page 12: Midi Configuration
6 Getting started 6.2 MIDI Configuration Go to [Preferences/Options/MIDI] . midi1.pdf midi1.pdf 03/04/2009 03/04/2009 16:40:02 16:40:02 MIDI configuration Activate your MIDI controller by checking the Activate box. Select your MIDI input device from the pull down menu. Select your MIDI device mapping by clicking on it. Validate by clicking on OK. -
Page 13: Loading Tracks
6 Getting started On this screen you can scan your computer for a specific music folder or a complete drive. If you want to just add music with specific tag information (Artist, Title etc.), simply enter these into the relevant boxes and then click OK . You can also add music to the MediaBase by dragging and dropping files from the Explorer window or by selecting Add Music from various menus. - Page 14 7 First Mix with MIXVIBES DVS ULTIMATE Load tracks into both players and the waveforms will appear. Begin playback of the control records to start playback of the audio in the players. You should now hear the music in your speakers: You can start mixing.
-
Page 15: Troubleshooting
8 Troubleshooting The audio tracks are not playing back Make sure you selected the correct audio mode and audio interface in the soundcard options window. Make sure you selected two audio outputs in the soundcard options window. Make sure you selected the correct audio outputs of your audio interface in the ASIO setup of the soundcard options window. -
Page 16: Frequently Asked Questions
After the system has recognized and installed your U-MIX44 you should adjust the output and input volumes in the Windows audio settings. If you don’t adjust the U-MIX44 input volumes, MixVibes can’t calibrate the control vinyls and CDs. Example Windows XP: [Start > Control panel > Sounds and audio devices > ’Audio’ tab]. - Page 17 9 Frequently Asked Questions How do I check if the control vinyls or CDs are calibrated correctly? 1. Go to the Vinyl/CD options [Preferences > Options > Vinyl/CD Input]. vibe-watermark-brig vibe-watermark-brig Vinyl/CD calibration 2. Once proper calibration is achieved, the calibration graphs will output sinusoidal similar to the ones shown in figure above.
- Page 18 10 U-MIX44 Specifications LINE Playback Signal to noise ratio: 85dB Distortion ratio: 0.05 % Channel separation: 85dB Frequency response: 20Hz-20kHz -1±2.5dB HEADPHONE Playback Signal to noise ratio: 80dB Distortion ratio: 0.07 % Frequency response: 30Hz-18kHz -1±2.0dB LINE Record Signal to noise ratio: 80dB Distortion ratio: 0.05 %...
- Page 19 MIXVIBES. Trademarks and trade names displayed on this quick start guide are the property of their respective owners.
