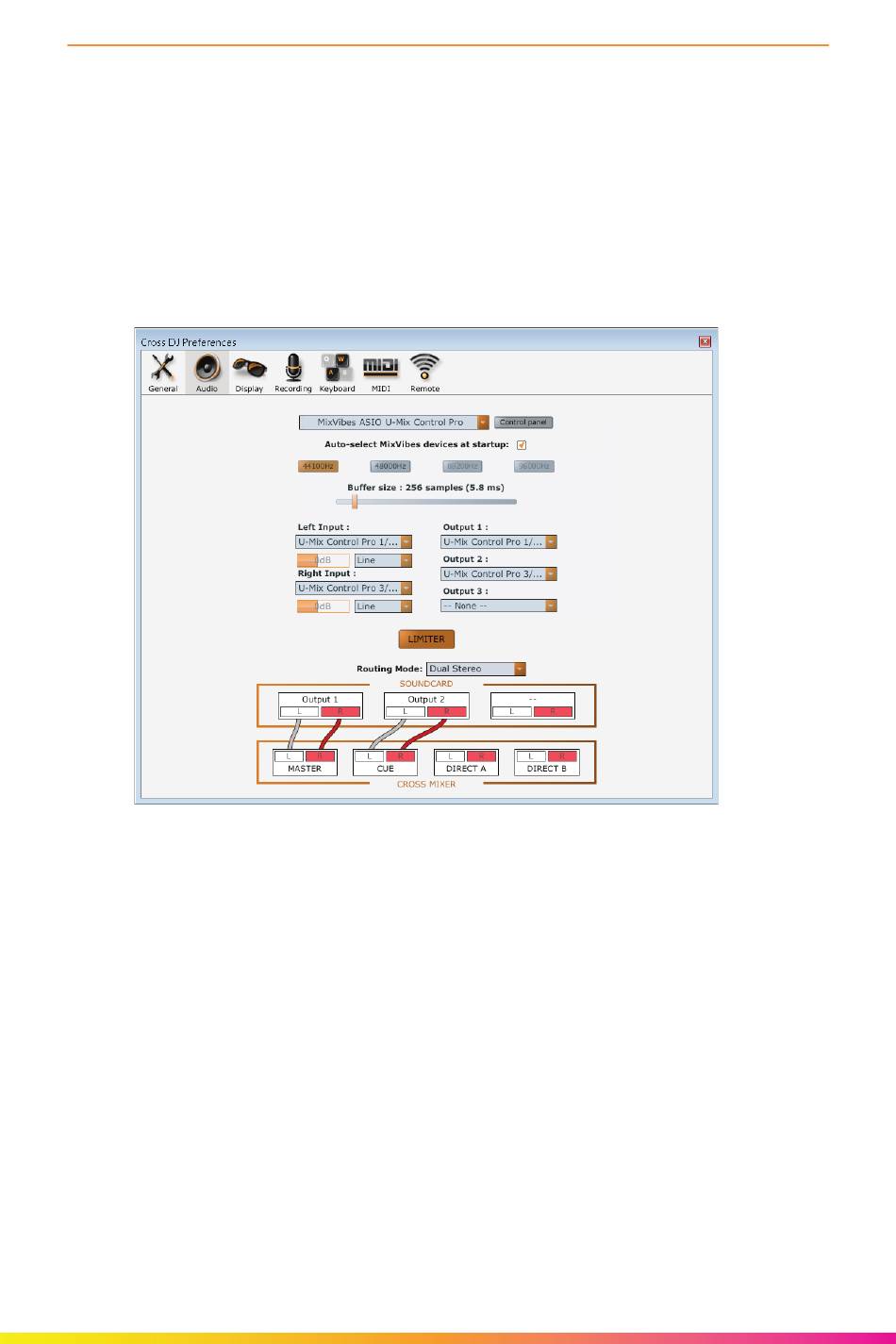

2 open the list box Left Input and select the input ports of your audio inter-
face to which the external device is connected.
If you use u-mIX control pro select U-Mix Control Pro 1/U-Mix Control
Pro 2 on Windows or select input 1/input 2 on oS X.
3 open the list box Right Input and select the input ports of your audio inter-
face to which the external device is connected.
If you use u-mIX control pro select U-Mix Control Pro 3/U-Mix Control
Pro 4 on Windows or select input 3/input 4 on oS X.
4 open the Line/Phono dropdown list in section Left Input and/or section
Right Input. Select Line, if you connect a line-level device or select Phono
if you connect a turntable without a pre-amplifier.
use the Input Gain sliders next to the Line/Phono dropdown list to adjust
5
the input gain for your audio device. make sure that the input level is high
enough but also that the audio clipping is avoided. Setting the input gain is
especially useful if you connect an mp3 player like the ipod.
Assign the Inputs to the Players
Once you have configured the routing for the Left Input and the Right Input as de-
scribed in the previous section, have a look at the Head-up Display and especially
at the a/B buttons at the left and the right side of the waveforms.
If you assigned inputs of your audio interface to the left Input dropdown, then the
a/B buttons on the left side of the waveform are enabled; otherwise they will be
