Summary of Contents for MIXVIBES U-MIX 44
- Page 1 Quick Start Manual...
- Page 2 2 stereo analog line inputs, 2 stereo line outputs, a microphone input and a headphone output, perfect for monitoring. We invite you to be a part of the MixVibes community to share your experiences with other DJs, find help and advice. See you online on the...

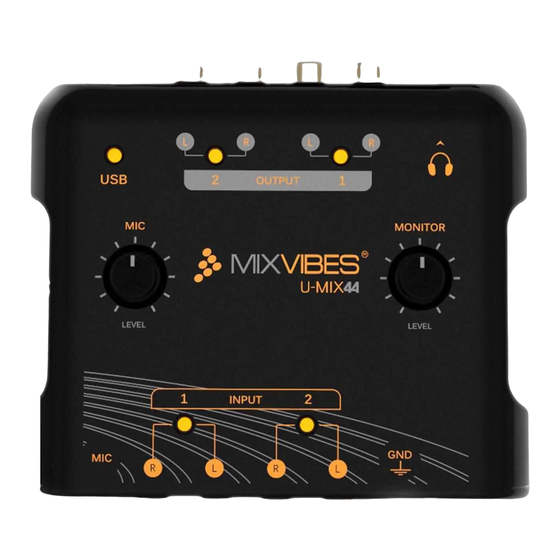

- Page 3 U-MIX44 Description & panel.pdf panel.pdf 15/07/2009 15/07/2009 14:39:07 14:39:07 System Diagram vibe-watermark-brig vibe-watermark-brig Front panel USB cable: Connect the USB cable to the computer. 4 RCA output channels: You can use these outputs to connect an external mixer or your sound system (amplifier, powered speakers, or home stereo).
- Page 4 Gain control for the microphone input: Control the input level of the microphone. Microphone input connector: Connect your microphone to this balanced 1/4” connector. 4 RCA input channels: You can use these inputs to connect your turntables, CD/MP3 players, mixer unit, effect player, cassette deck play and radio player etc.
- Page 5 Follow the instructions below to use the U-MIX44 and a DJ software (like MixVibes CROSS or DVS 7) with a pair of decks and an external mixer. If you are using vinyl, plug the ground of your turntable to the grounding screw on the U-MIX44 or on your DJ mixer.
- Page 6 If you want to use ASIO drivers to have low latencies with your DJ or sequencer applications, choose device MixVibes ASIO UMIX44 in the audio settings of the application and enable the U-MIX44 inputs and outputs. Find more documentations on our website http://www.mixvibes.com/support/...
- Page 7 Specifications LINE Playback Signal to noise ratio: 85dB Distortion ratio: 0.05 % Channel separation: 85dB Frequency response: 20Hz-20kHz -1±2.5dB HEADPHONE Playback Signal to noise ratio: 80dB Distortion ratio: 0.07 % Frequency response: 30Hz-18kHz -1±2.0dB LINE Record Signal to noise ratio: 80dB Distortion ratio: 0.05 %...
- Page 8 The contents of this manual may change without prior notice. Best efforts have been put forth to insure the accuracy of the contents of this manual. MixVibes is not liable for any errors, typographical or other, contained herein. Except as specifically permitted herein, no portion of the information on this manual may be reproduced in any form or by any means without the prior written permission of MixVibes.
